Product Category Description
Controller boards, backlight drivers, FPC/FFC cables, connectors, and related integration components.
-

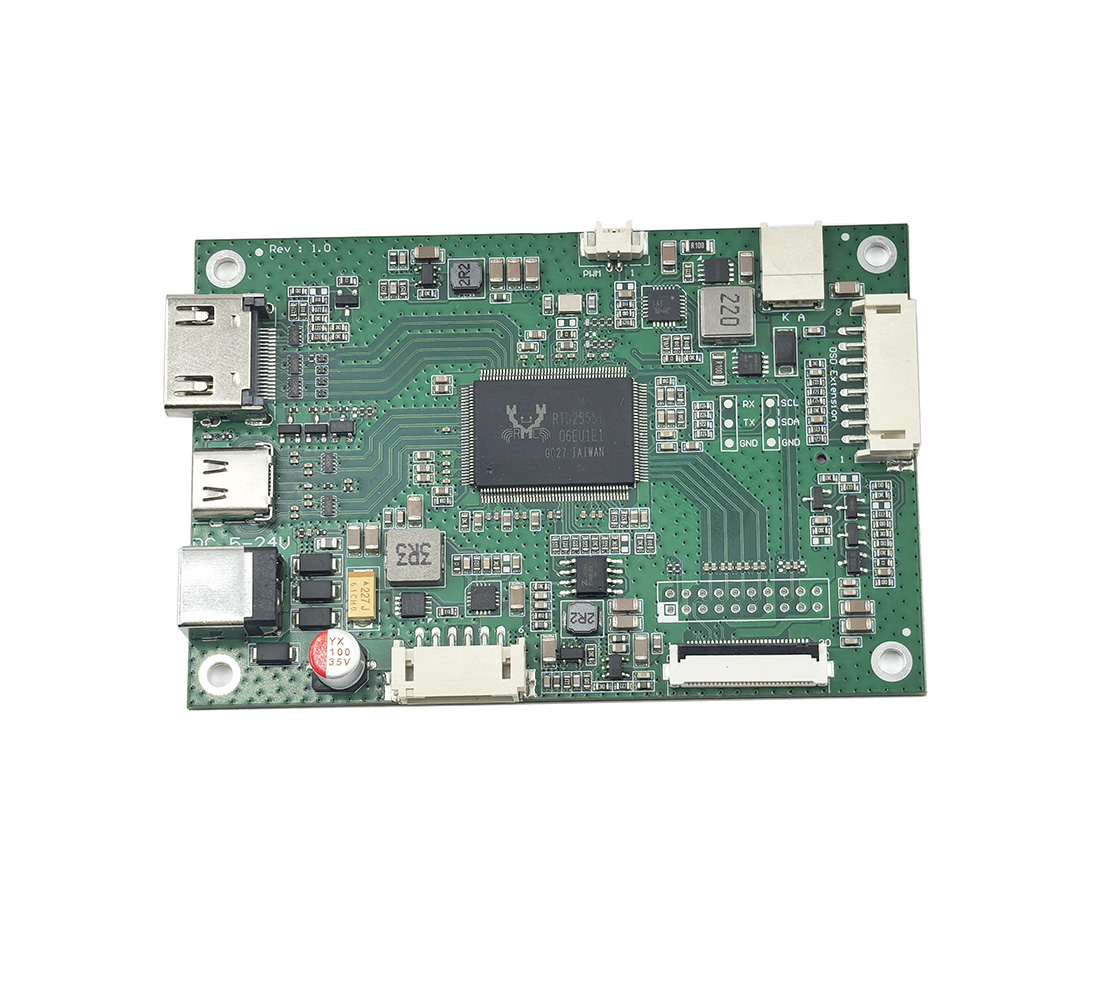

PN KD156FHD02 Input HDMI 1.4a/Type-C 3.1 Output eDP Resolution Up to 1920*1200@75Hz LED Driver Up to 45V/680mA Power input 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness and Typec Video PN KD156FHD02 Input HDMI 1.4a/Type-C 3.1 Output eDP Resolution Up to 1920*1200@75Hz LED Driver Up to 45V/680mA Power input 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness and Typec Video PN KD156FHD02 Input HDMI 1.4a/Type-C 3.1 Output eDP Resolution Up to 1920*1200@75Hz LED Driver Up to 45V/680mA Power input 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness and Typec Video -

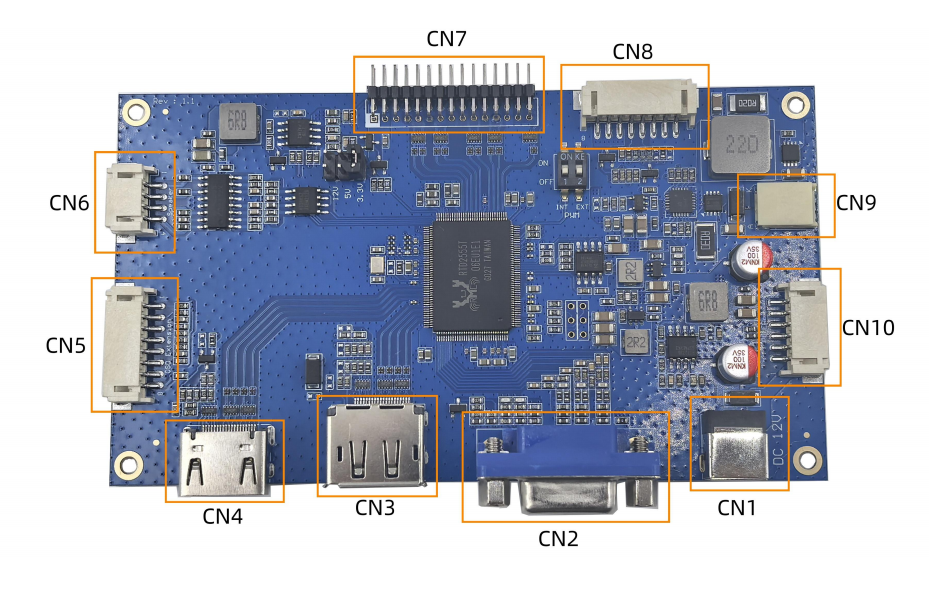

Item Specification Power 12V/2A Input HDMI1.4a/DP/VGA Output Dual 8 LVDS LED Driver Up to 45V/680mA Specker 8Ω2W Driver IC RTD2555T Operation Temp -20°C~70°C Storage Temp -30°C~80°C Feature HDMI with DDC/CI adjust brightness Item Specification Power 12V/2A Input HDMI1.4a/DP/VGA Output Dual 8 LVDS LED Driver Up to 45V/680mA Specker 8Ω2W Driver IC RTD2555T Operation Temp -20°C~70°C Storage Temp -30°C~80°C Feature HDMI with DDC/CI adjust brightness Item Specification Power 12V/2A Input HDMI1.4a/DP/VGA Output Dual 8 LVDS LED Driver Up to 45V/680mA Specker 8Ω2W Driver IC RTD2555T Operation Temp -20°C~70°C Storage Temp -30°C~80°C Feature HDMI with DDC/CI adjust brightness -
PN KD123HD03 Resolution Up to 1200*1920,60Hz Input Source HDMI 1.4a LCD interface MIPI DSI(4 lane) LED Driver Up to 45V/680mA Power input DC 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C PN KD123HD03 Resolution Up to 1200*1920,60Hz Input Source HDMI 1.4a LCD interface MIPI DSI(4 lane) LED Driver Up to 45V/680mA Power input DC 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C PN KD123HD03 Resolution Up to 1200*1920,60Hz Input Source HDMI 1.4a LCD interface MIPI DSI(4 lane) LED Driver Up to 45V/680mA Power input DC 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C -
PN KD101FHD01 Driver IC RTD2555T+IT6510 Resolution Up to 1200*1920/60Hz Input HDMI 1.4a Output MIPI DSI(4lane) TP Interface USB-C Operation Temp -20°C~70°C Storage Temp -30°C~80°C Feature DDC Conrtol brightness/Scaler PN KD101FHD01 Driver IC RTD2555T+IT6510 Resolution Up to 1200*1920/60Hz Input HDMI 1.4a Output MIPI DSI(4lane) TP Interface USB-C Operation Temp -20°C~70°C Storage Temp -30°C~80°C Feature DDC Conrtol brightness/Scaler PN KD101FHD01 Driver IC RTD2555T+IT6510 Resolution Up to 1200*1920/60Hz Input HDMI 1.4a Output MIPI DSI(4lane) TP Interface USB-C Operation Temp -20°C~70°C Storage Temp -30°C~80°C Feature DDC Conrtol brightness/Scaler -
PN KD070HD04 Input DP/Type-C Output LVDS Resolution Up to 1280*800 Power input 5V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness PN KD070HD04 Input DP/Type-C Output LVDS Resolution Up to 1280*800 Power input 5V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness PN KD070HD04 Input DP/Type-C Output LVDS Resolution Up to 1280*800 Power input 5V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness -

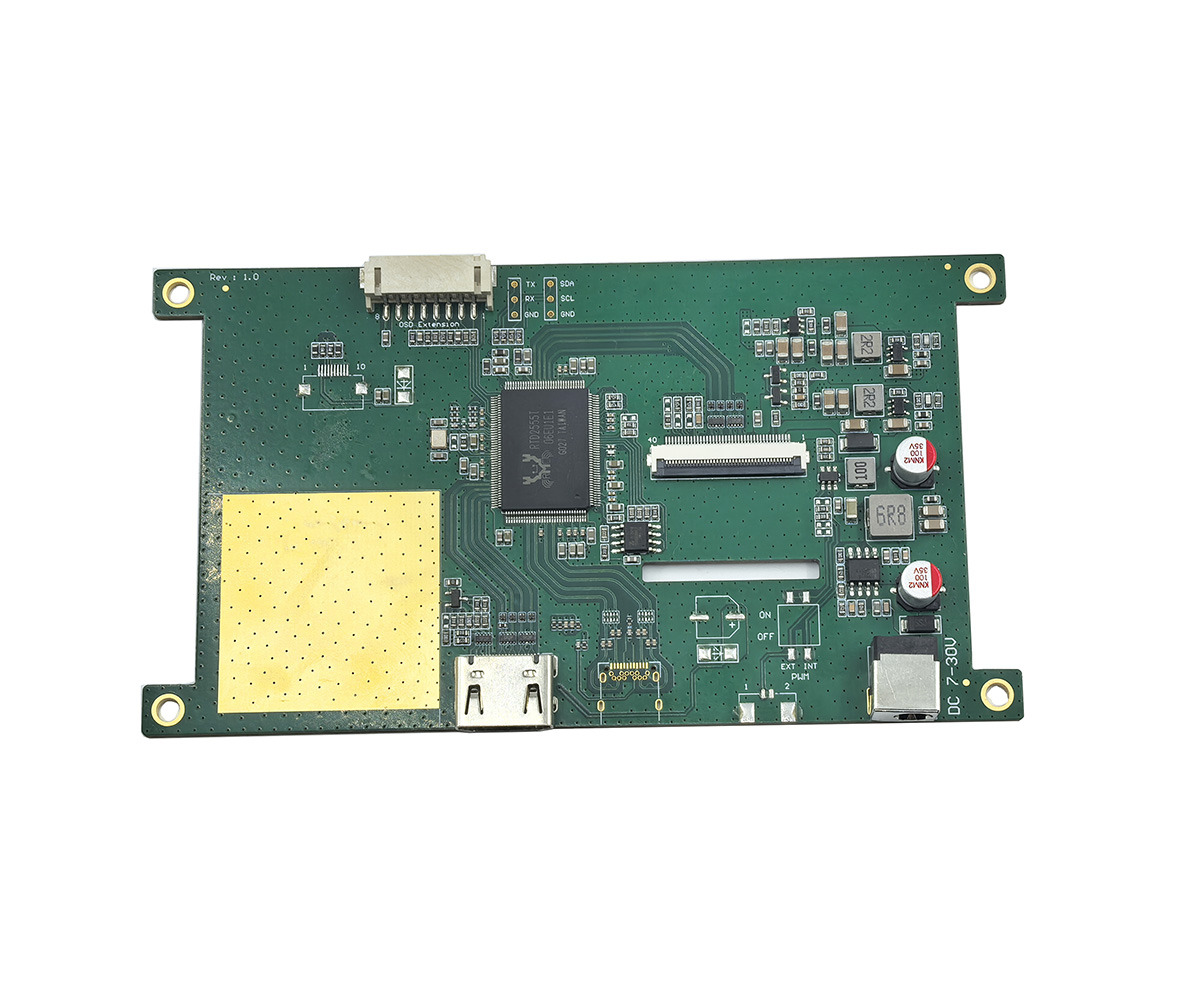

PN KD090HD01 Input HDMI 1.4a Output LVDS Resolution Up to 1280*800 Power input 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness PN KD090HD01 Input HDMI 1.4a Output LVDS Resolution Up to 1280*800 Power input 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness PN KD090HD01 Input HDMI 1.4a Output LVDS Resolution Up to 1280*800 Power input 12V Operation Temp -20°C~70°C Storage Tempe -30°C~80°C Feature Support DDC control brightness -

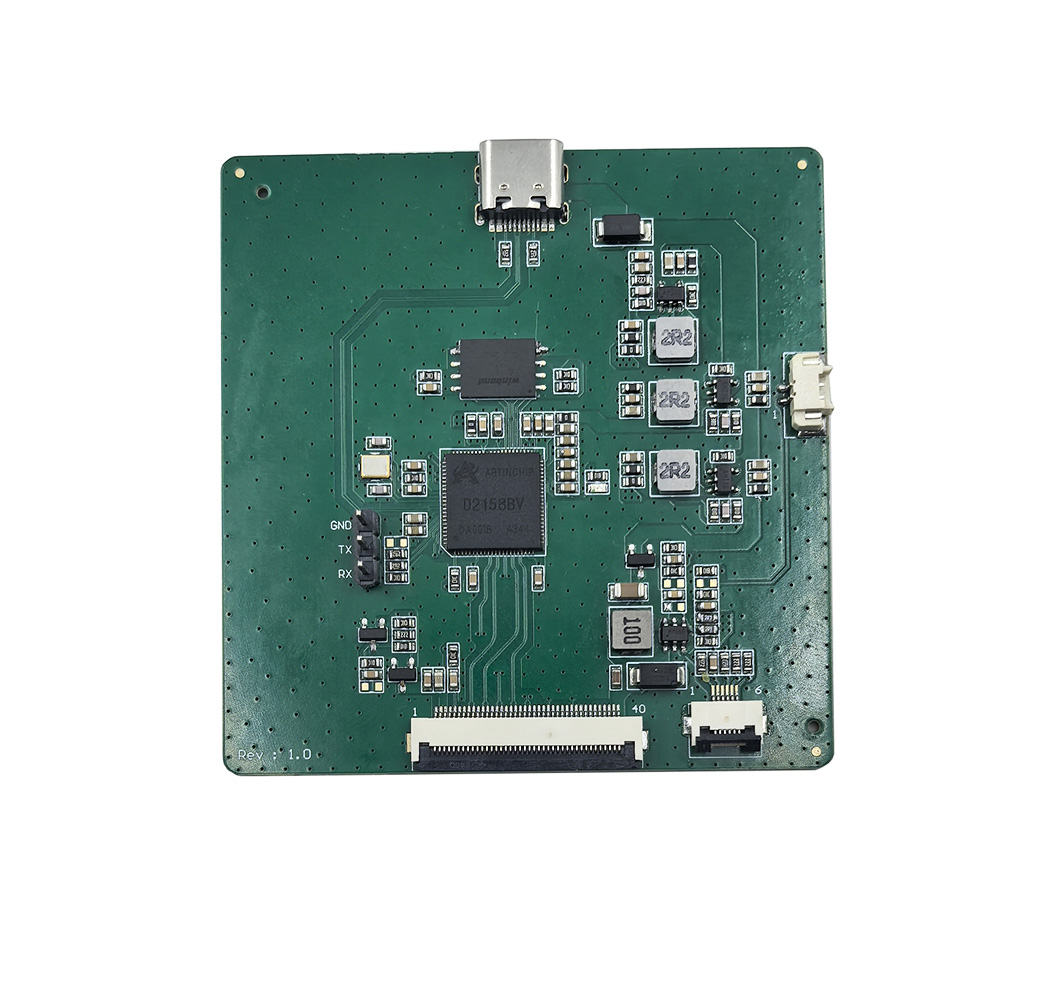

PN KD101USB01 Resolution Up to 1200*1920/60Hz Input USB2.0 Output MIPI DSI(4 lane) Operation Temp -20°C~70°C Storage Tempe -30°C~70°C Touch interface USB Feature Support 90/180/270 rotate PN KD101USB01 Resolution Up to 1200*1920/60Hz Input USB2.0 Output MIPI DSI(4 lane) Operation Temp -20°C~70°C Storage Tempe -30°C~70°C Touch interface USB Feature Support 90/180/270 rotate PN KD101USB01 Resolution Up to 1200*1920/60Hz Input USB2.0 Output MIPI DSI(4 lane) Operation Temp -20°C~70°C Storage Tempe -30°C~70°C Touch interface USB Feature Support 90/180/270 rotate -
-
-
-
-
