10.1” 800×1280 One-Cable USB2.0 LCD Touch Display Module | Power + Display + Touch
-

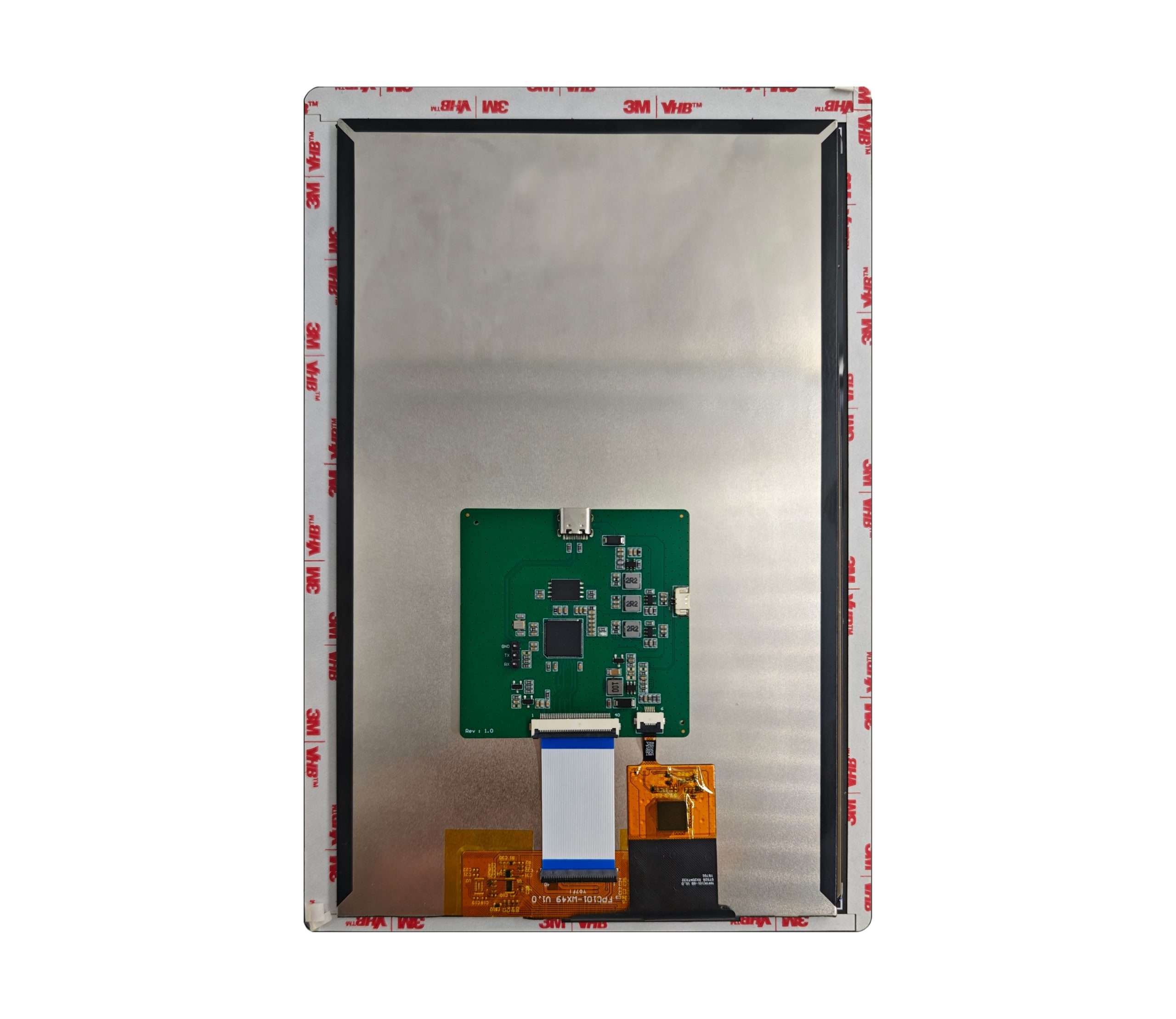

Product OverviewThe 10.1 inch USB2.0 display module integrates an LCD panel and capacitive touch (CTP) with a dedicated USB2.0 controller board, providing a compact one-cable solution for power, video display, and touch input.
With 800×1280 resolution and a practical 450 nits brightness level, it is ideal for embedded devices and space-limited projects that require fast integration and clean wiring.
This module is designed for developers and manufacturers who want an easy-to-use USB powered LCD touch display without complex video interfaces. Simply connect a USB cable to deliver power + display + touch in one setup, making prototyping and final assembly faster and more reliable.
-
Why Choose This 10.1” USB Touch Display?One Cable = Faster Integration
A single USB connection can handle power, display, and touch, reducing design complexity and saving assembly time.
Compact & Clean Design
Fewer cables and connectors mean less failure risk, cleaner internal layout, and better product reliability.
Stable Supply for Series Projects
This module fits well into a series product strategy (5”/7”/8”/9”/10.1”/ 12.1” etc.), helping you standardize integration across multiple screen sizes.
OEM/ODM Customization Ready
We support customization to match your device design and installation needs—cover glass, housing, cable length, and mounting structure.
-
Industrial-grade designIf a display monitor need work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also PCBA need a long life time
LCD with 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
PCB 100% with immersion Gold Process to ensure strong wear resistance、excellent electrical conductivity and welding reliability
- All solid state capacitors
- Low EMC design ClassB：EN55032/EN55035
- High ESD protection (air ±8KV / contact±4KV )
- Long life time（at least 50000 hours）
-
Customize ServiceWe display your ideas!
- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
-
FAQFAQ
Q1: How can I adjust the backlight brightness?
A: Brightness can be controlled by OSD, external PWM, DDC/CI, or UART, depending on your setup.Q2: Can you customize brightness and lifetime?
A: Yes. We support custom brightness (nits) and backlight lifetime for long-term industrial use.Q3: Do you support anti-UV for outdoor applications?
A: Yes. Anti-UV options are available to reduce aging in sunlight environments.Q4: Can you customize cover glass and housing?
A: Yes. We can customize cover glass and enclosure/housing, including size and mounting.Q5: How do you ensure quality?
A: We use a Class 1000 cleanroom, AOI inspection, and quality systems like IATF 16949 and ISO 9001/14001.Q6: Is there an MOQ for standard products?
A: No MOQ for standard items—samples and small orders are supported.Q7: Can you do small-batch custom orders?
A: Yes. Custom orders can start from small batches; MOQ depends on the customization scope.
| Item | Specification |
| LCD Size | 10.1 inch |
| Resolution | 800*1280 |
| Video Interface | USB 2.0 |
| Brightness（cd/m²） | 450nits |
| Viewing Direction | 80/80/80/80(Typ) |
| Active Area | 135.36 (H) x 216.58 (V) |
| Pixel Pitch | 0.1692 (H) x 0.1692 (V) |
| Display Colors | 16.7M |
| TP Interface | I²C |
| Outline Dimension（mm） | 165.60 (H) x 246.96 (V) x 12.11 (D) |
| Operation Temp | -20°C~70°C |
| Storage Temp | -30°C~70°C |
| Power Input | 5V/3A |
