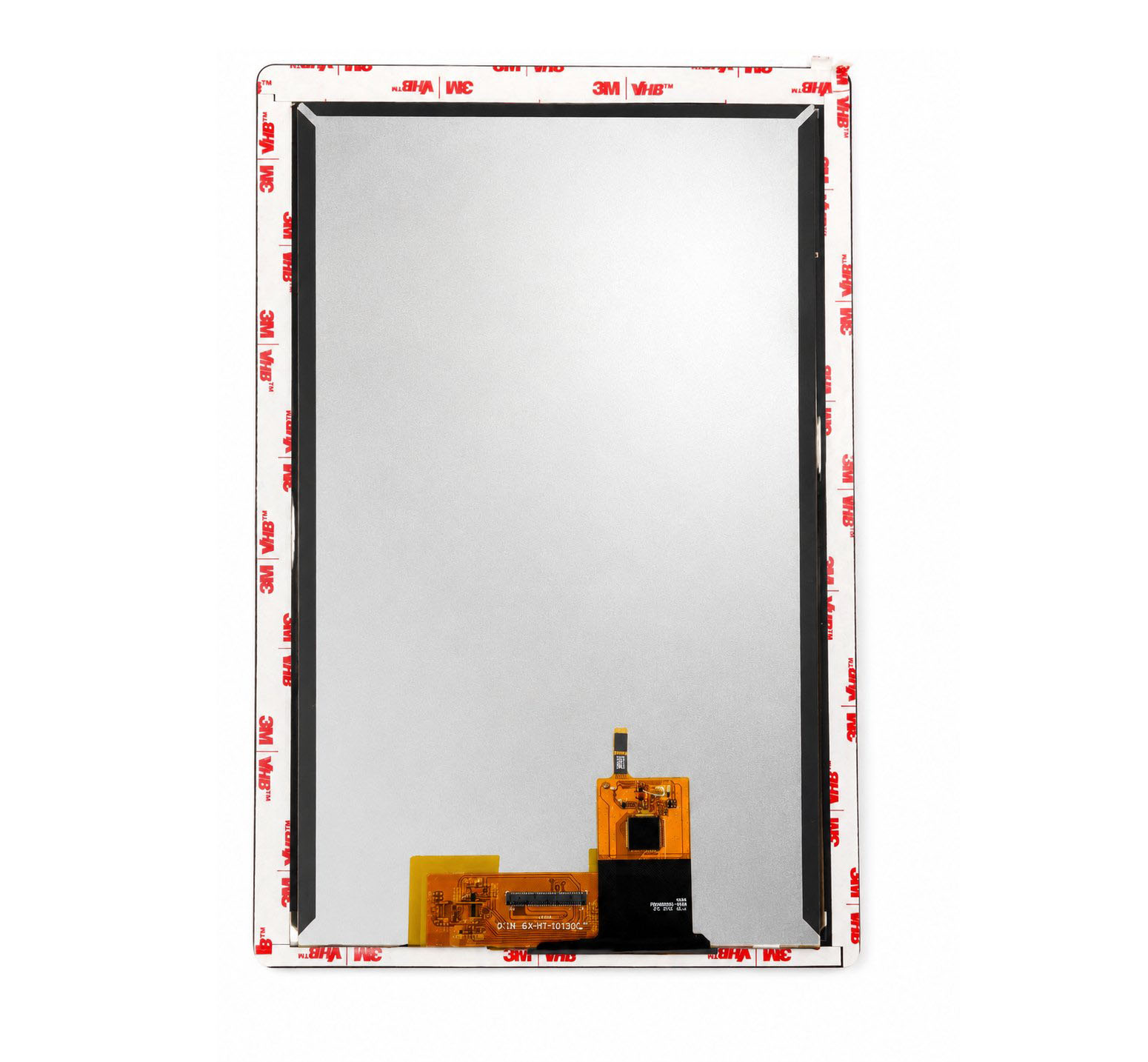

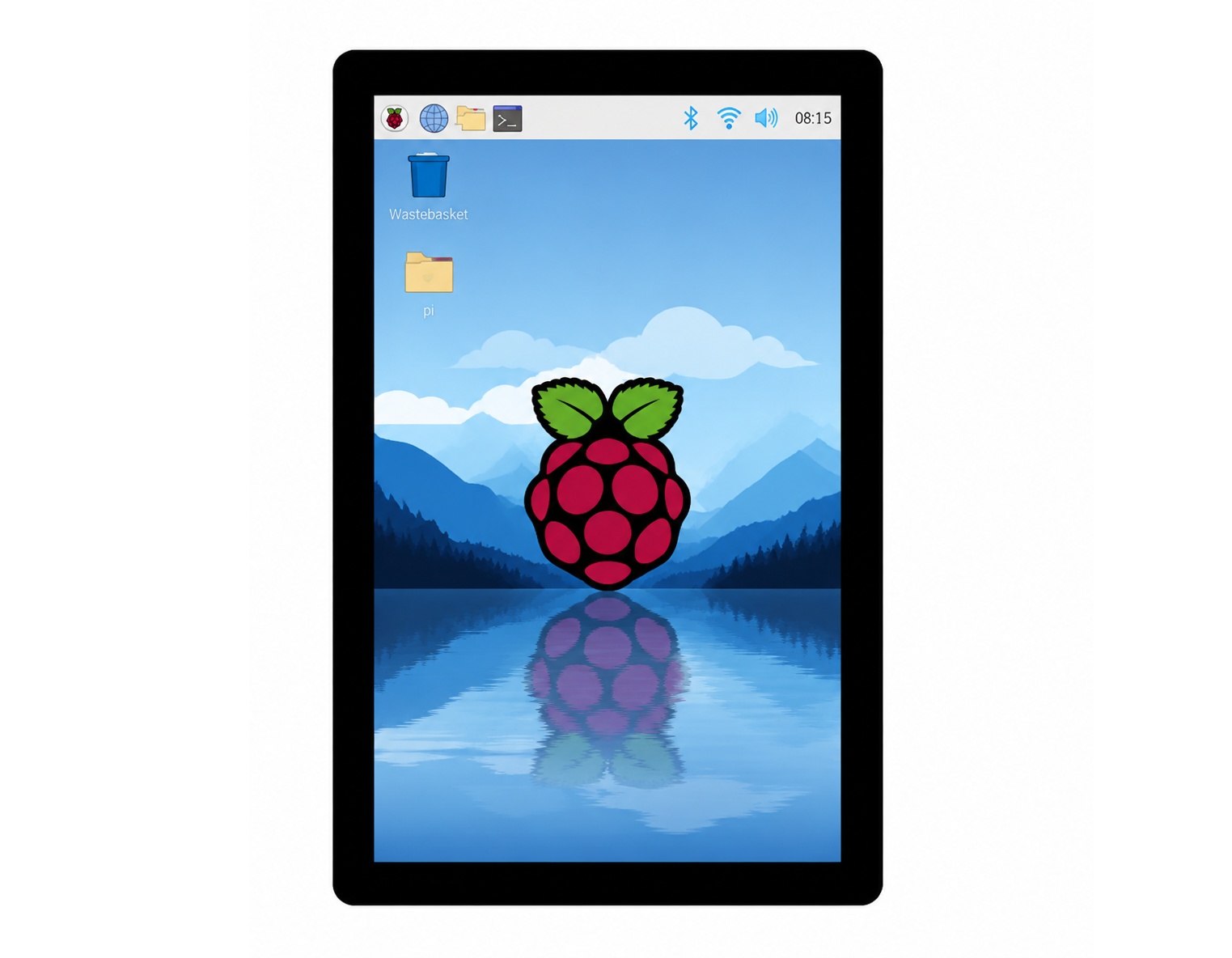

10.1” MIPI 800*1280 Module With CTP

PN	KD101HWX49HP-DC88
Size	10.1
Interface	MIPI
Resolution	800 x 1280
Brightness	450
Operation Temp	-20°C~70°C
Storage Tempe	-30°C~70°C

AOI For Quality Guarantee

If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the Backlight, brightness and thickness could be change
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

Item	KD101HWX49HP-DC88
LCD Size	10.1
Number of Pixels	800 x 1280
Interface	MIPI
TP Interface	I2C
TP Driver IC	GT928
Driver IC	ILI9881C
Brightness（cd/m²）	450
Viewing Direction	Free
Pixel Pitch	87.72 (H) x87.72 (V)
Display Colors	16.7M
Active Area	263.16 (H) x 168.42 (V)

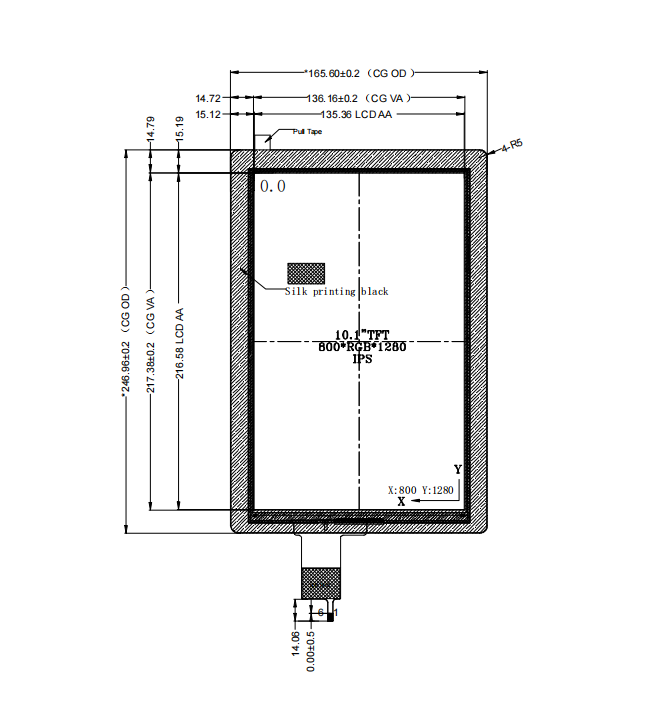

Outline Dimension（mm）	272.86(W)178.58 (H) 1.686 (T
Operation Temp	-20°C~70°C
Storage Temp	-30°C~70°C
