10.1 Inch 1280×800 High Brightness TFT LCD DisplayNeed a high-brightness LCD for an industrial display system operating under challenging lighting conditions?

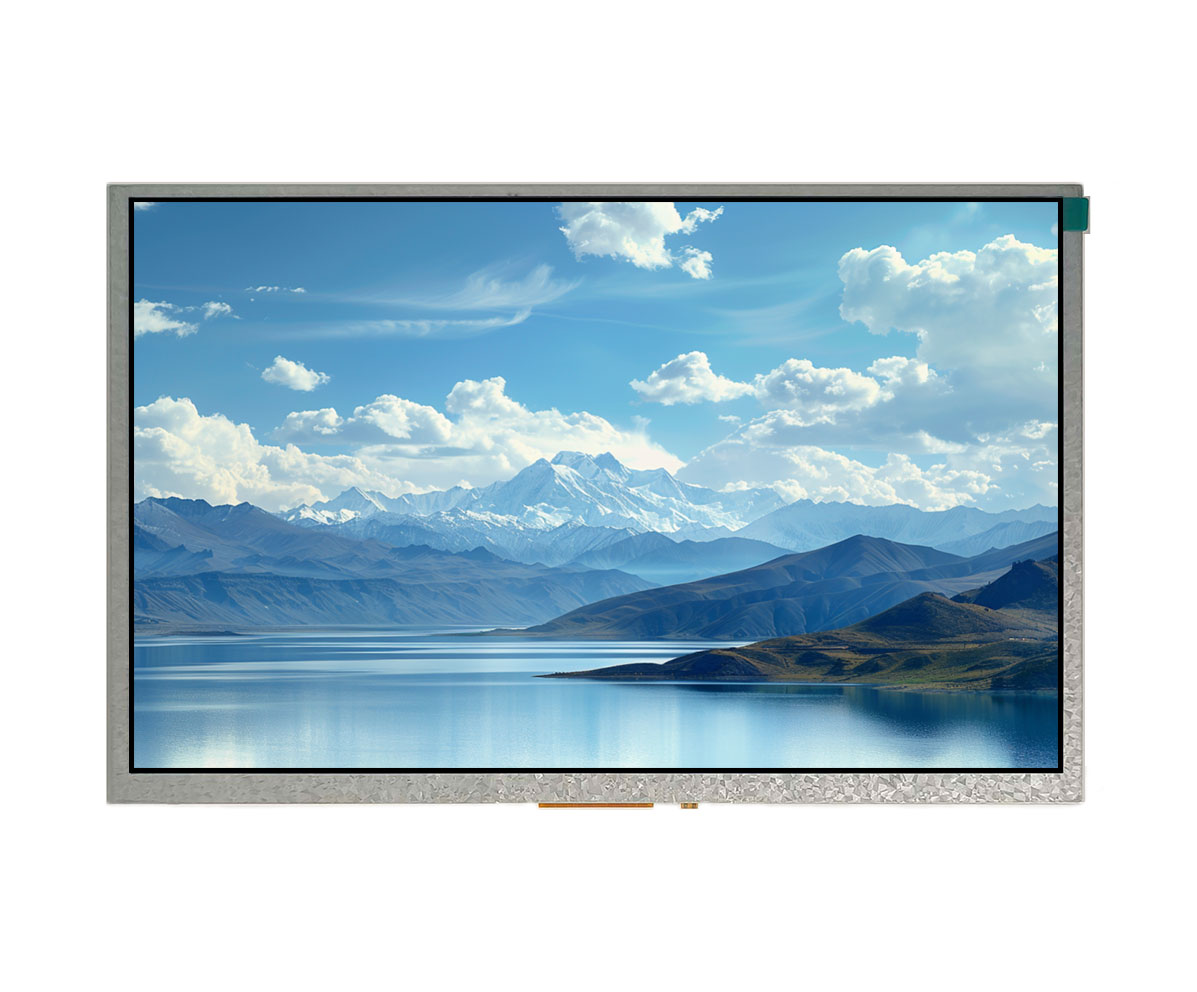

The KD101HWX33HD is a 10.1 inch TFT LCD module featuring a 1280×800 resolution and 500 cd/m² typical luminance. Its LVDS interface supports integration into compatible display systems, while the wide specified operating temperature range makes it suitable for industrial equipment that must operate across varying ambient temperatures.
With 16.7 million display colors and a typical contrast ratio of 1000:1, this module is designed for applications that require a high-brightness display with detailed visual output.
- 10.1 inch TFT LCD for industrial and embedded display systems
- 1280 × 800 resolution for detailed on-screen content
- 500 cd/m² typical brightness, with 450 cd/m² minimum specified luminance
- 16.7M display colors for color-rich visual output
- 1000:1 typical contrast ratio
- 25 ms typical response time
- 80° minimum viewing angle in four directions
- Normally Black display mode
-
IPS TFT LCDThe IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality GuaranteeIf a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize Service- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the LCM and CTP pinout
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly
-
FAQ
Q1: What is the resolution of the KD101HWX33HD?
A: KD101HWX33HD is a 10.1 inch TFT LCD module with a resolution of 1280 × 800 pixels.
Q2: How bright is this 10.1 inch LCD display?
A: The specified luminance is 500 cd/m² typical and 450 cd/m² minimum. Actual brightness in the final system may depend on the complete optical and mechanical design.
Q3: What display interface does KD101HWX33HD use?
A: The module uses an LVDS interface. Engineers should verify the host controller’s signal timing, electrical characteristics and connector pin assignment before integration.
Q4: What is the operating temperature range?
A: The specified operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C.
Q5: Does KD101HWX33HD include a touchscreen or HDMI board?
A: The uploaded specification identifies KD101HWX33HD as a TFT-LCD module with an LVDS interface. It does not specify an integrated touchscreen or HDMI controller board. If a touchscreen or HDMI input is required, the additional components and compatibility need to be confirmed separately.
| Item | Specification |
| LCD Size | 10.1 |
| Number of Pixels | 1280*800 |
| Interface | LVDS(40Pin-0.5mm) |
| Brightness（cd/m²） | 500nits |
| Viewing Direction | Free |
| Pixel Pitch | 0.1695(H)×0.1695(V) |
| Display Colors | 16.7M |
| Active Area | 216.96(H)x 135.60(V) |
| Outline Dimension（mm） | 260.00 (H) x 160.00 (V) x 8.15 (D) |
| Operation Temp | -20~70℃ |
| Storage Temp | -30~80℃ |
