High BrightnessHigh-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.
Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².
- High contrast enhances image sharpness and detail richness.
- SunlightVisible
- High color reproduction
-
IPS TFT LCDIPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Wider viewing angle
- Faster response timeand quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality Guarantee
If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize ServiceWe display your ideas!
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the LCM and CTP pinout
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

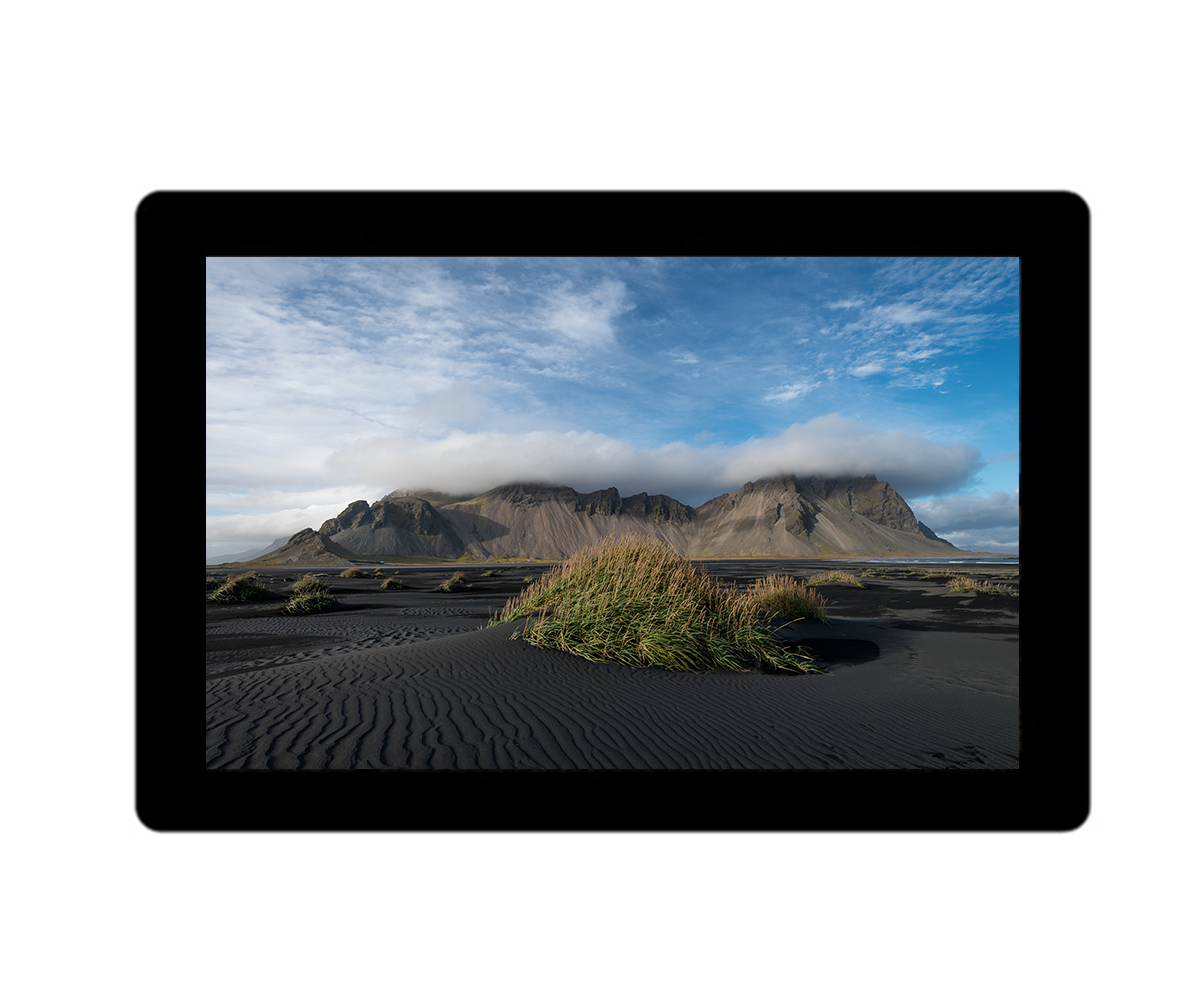

| Item | Specification |
| LCD Size | 10.1 |
| Number of Pixels | 1280×800 |
| Interface | LVDS(40Pin-0.35mm) |
| Brightness（cd/m²） | 1000nits |
| LCD Drive IC | EK79202 |
| Viewing Direction | 80/80/80/80(Typ) |
| Pixel Pitch | 0.1695(H)×0.1695(V) |
| Display Colors | 16.7M |
| Active Area | 216.96(H)x 135.60(V) |
| Outline Dimension（mm） | 229.46(W)*149.10(H)*4.5 (D) |
| Operation Temp | -30~80℃ |
| Storage Temp | -30~80℃ |
