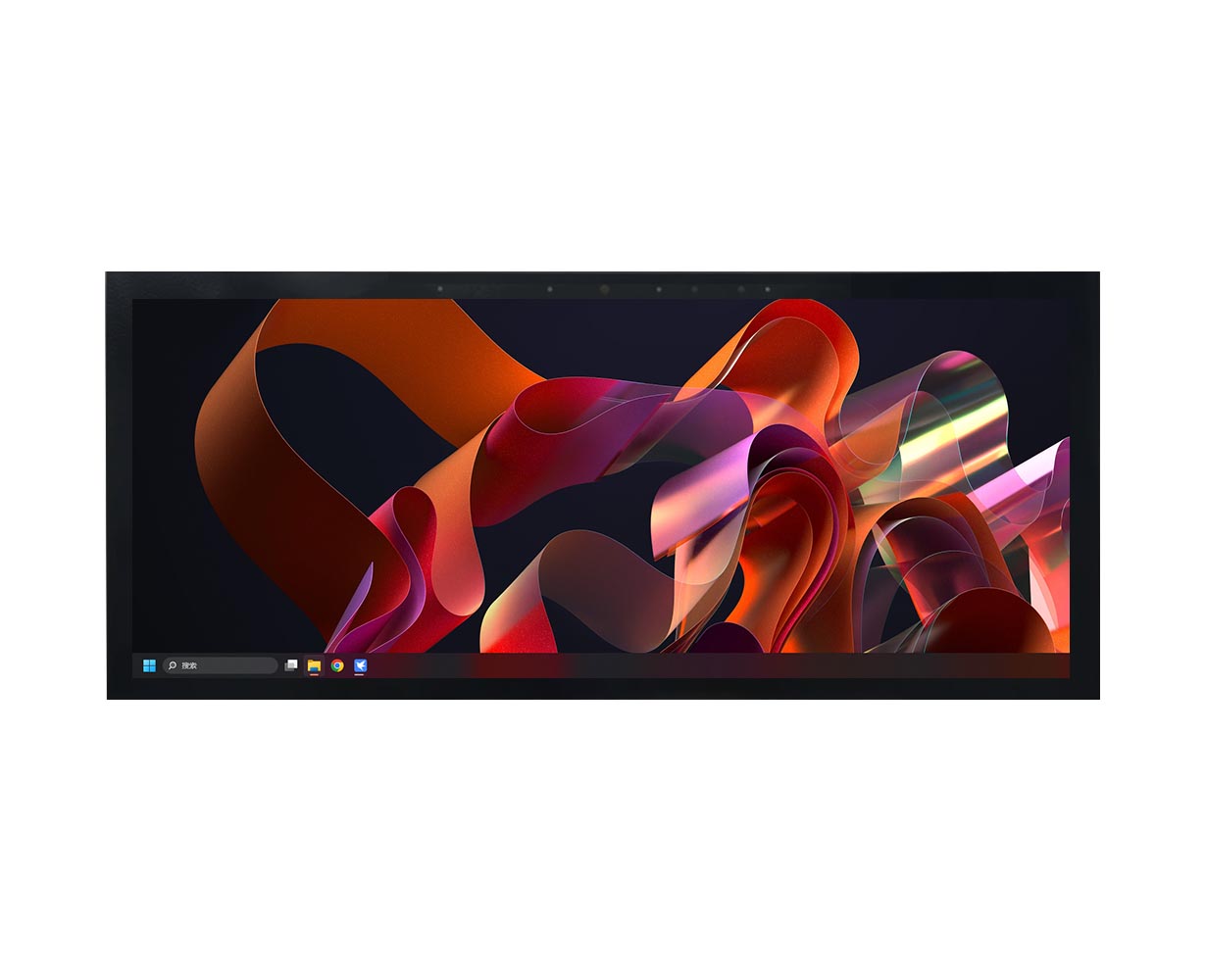

12.3 inch IPS Monitor with Capacitive Touch & HDMI — Plug & Play Industrial Display
12.3 inch IPS Monitor with Capacitive Touch & HDMI — Plug & Play Industrial Display
| PN | KD123WUHD02 |
| Size | 12.3 |
| Resolution | 1920*720 |
| Interface | HDMI 1.4a/ Type-C 3.1 |
| Brightness | 800nits |
| Touch Controller | GT9110 |
| TP Interface | USB |
| Operation Temp | -20~70°C |
| Power supply | 6-27V |
-
Key FeaturesOur 12.3 inch Full HD (1920×720) IPS LCD monitor features a capacitive touch panel (CTP) and a plug-and-play HDMI adapter board, making it ideal for industrial, embedded, and OEM applications. With wide viewing angles, high color fidelity, and reliable performance, this monitor is perfect for control panels, kiosks, medical terminals, and other professional equipment.
- 12.3 inch Full HD (1920×1080) IPS LCD display
- Capacitive Touch Panel (CTP) for precise and smooth interaction

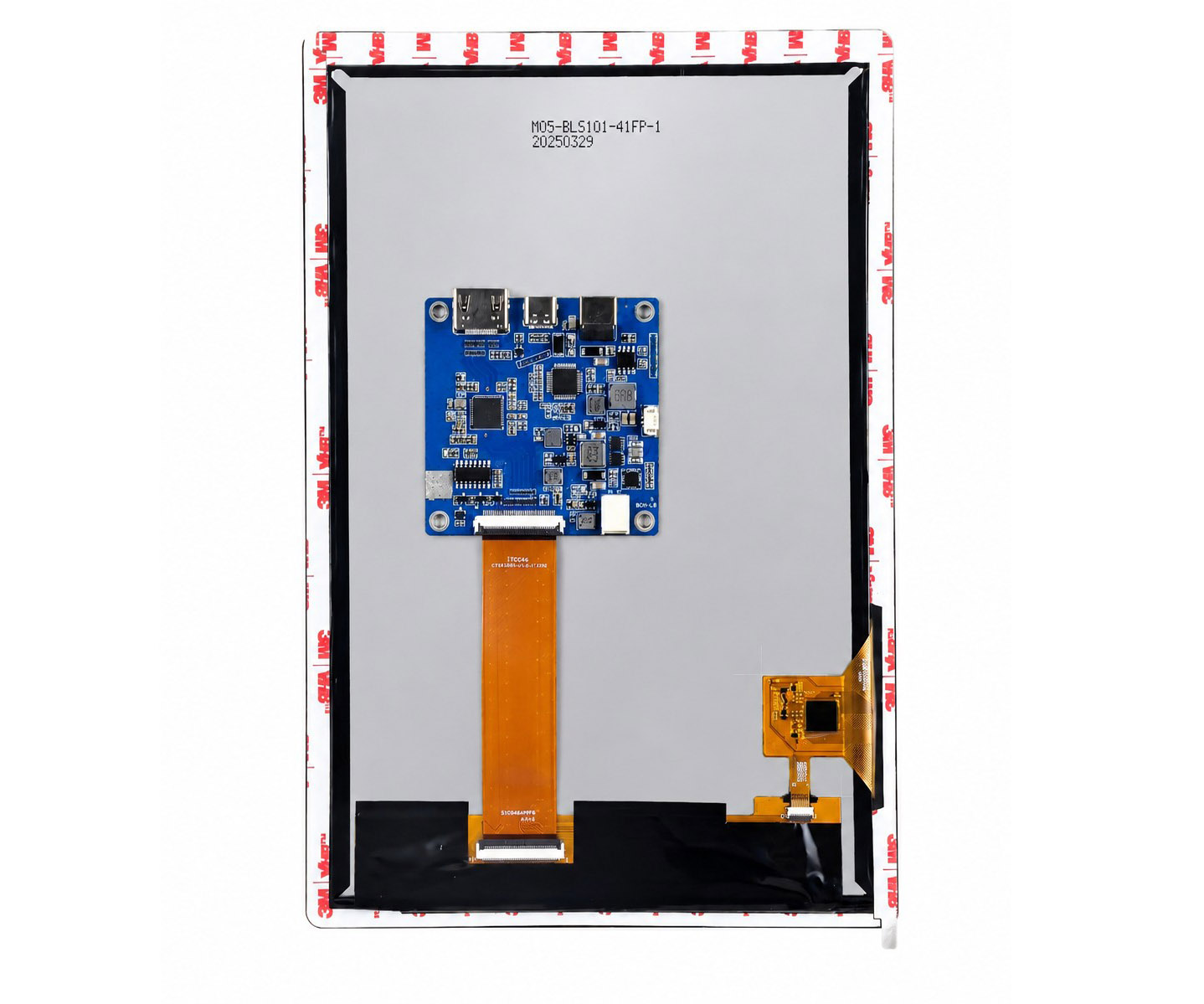

- Plug-and-play HDMI adapter board included for easy setup
- Industrial-grade durability for embedded systems
- Wide viewing angles and consistent color performance
- OEM customization options available for specific projects
-
Why Choose This Monitor
Outdoor visibility: 800 nits brightness for better readability in strong ambient light—ideal for kiosks, EV chargers, and outdoor HMI.
Surface protection: Optional AG/AR/AF treatments reduce glare/reflection and fingerprints for easier cleaning.
Industrial reliability: Wide operating temperature -20 to 70°C for stable performance in harsh environments.
Long-life backlight: 30,000 hours backlight life option helps reduce downtime and maintenance.
Fast integration: Plug & Play HDMI input + USB capacitive touch; customization available for bonding, cables, mounting, and housing.
-
AOI For Quality GuaranteeLong-term display stability depends on both certified manufacturing (ISO9001/IATF16949/ISO13485) and strict AOI control during TFT LCD bonding.
We apply 100% AOI inspection throughout the FOG process to automatically detect alignment issues, contamination, and bonding defects that may cause intermittent failure.
To ensure reliable conduction, we verify conductive particle distribution with clear criteria: ≥5 particles at the IC area and ≥10 particles at the FPC area. This in-process AOI standard improves consistency, yield, and long-term reliability.
-
Customization Options- Cover Glass (CG): Logo printing / color / shape / thickness
- Backlight: brightness (nits) / thickness / power optimization
- LCM & CTP: pinout / connector / firmware & touch tuning
- Interface: TTL / LVDS / MIPI / eDP / DP / HDMI / USB-C / VGA / USB-A
- FPC & Cable: FPC design / cable length / connector type
- Housing: custom bracket / front bezel / enclosure for easy assembly
-
FAQ
Q1: Does this monitor include a touch screen? What type of touch is it?
A: Yes. It includes CTP (capacitive touch panel). Touch control is typically provided through USB (plug-and-play HID on most systemQ2: Is this screen compatible with Raspberry Pi / Jetson / Windows / Linux?
A: In most cases, yes. HDMI provides universal video output, and USB touch generally works as a standard HID device on Windows and Linux. For Raspberry Pi/Jetson, it commonly works with HDMI + USB touch as well (system settings may be needed for rotation or touch mapping).Q3: Does this display support 24/7 operation?
A: It can be designed for long-time running applications depending on your configuration and thermal design. If you need 24/7 continuous operation, tell us your enclosure size, airflow, and working temperature so we can suggest the best setup.Q4: What is the MOQ and lead time?
A: MOQ and lead time depend on configuration and panel availability. For standard configurations, we can usually support small trial orders; for customized versions, lead time varies. Send your target quantity and schedule for a quick quote.Q5: Can you provide OEM/ODM services (logo, housing, firmware, bonding)?
A: Yes. We support OEM/ODM including custom front glass, logo printing, housing design, optical bonding, brightness upgrade, and interface customization
| Item | Specification |
| LCD Size | 12.3 |
| Resolution | 1920×720 |
| Video Interface | HDMI 1.4a/Type-C 3.1 |
| Touch Interface | USB |
| Brightness（cd/m²） | 800nits |
| Viewing Angle | 85/85/85/85(Typ) |
| Display Colors | 16.7M |
| Active Area(mm) | 292.03 (H) x 109.51 (V) |
| Outline Dimension（mm） | 314.8 (H) x 138.8 (V) x 4.4 (D) |
| Touch Controller | GT9110 |
| Operation Temp | -20~70°C |
| Storage Temp | -30~80°C |
| Power supply | 12V |
