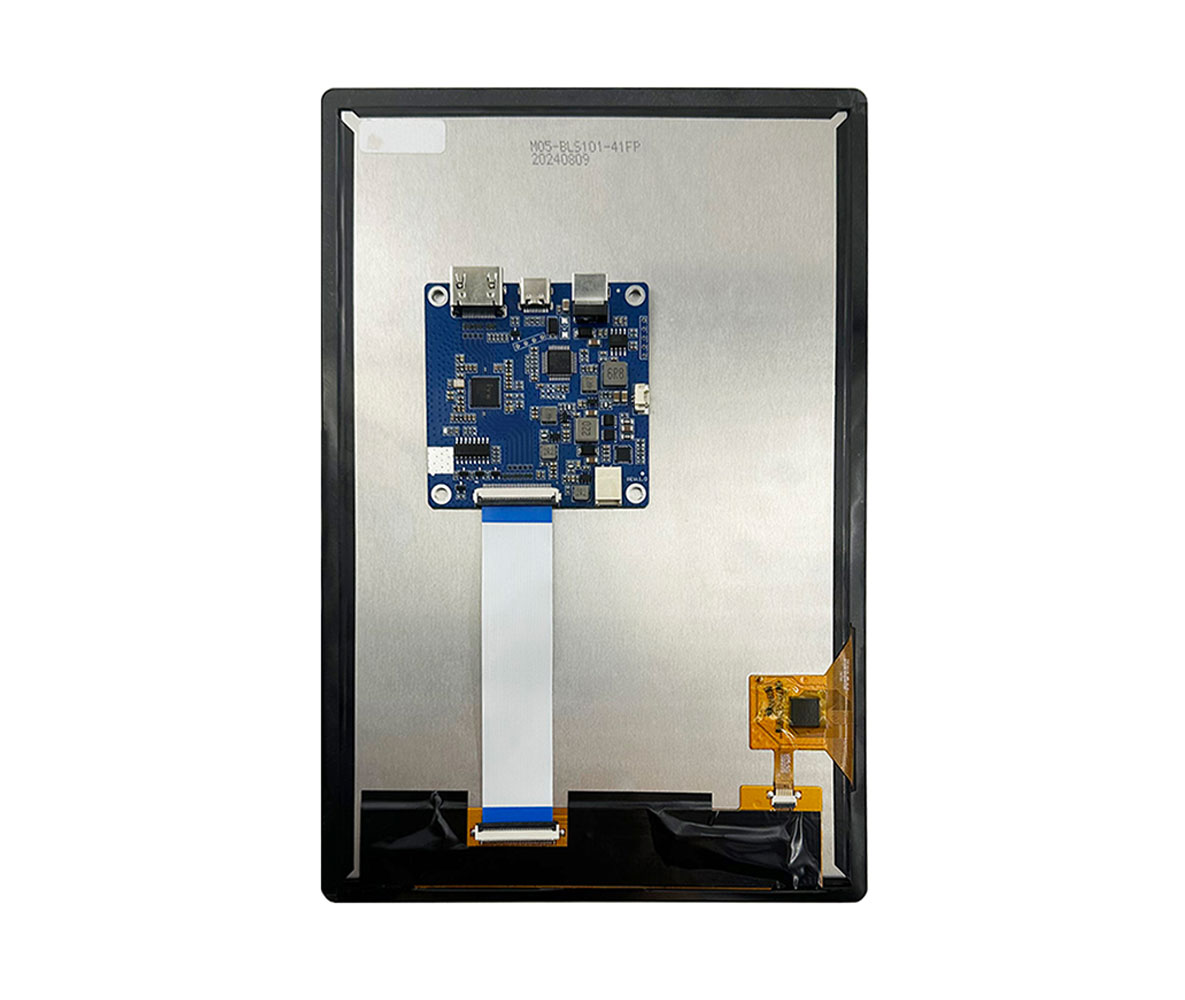

10.1 inch 1200×1920 1500nits Industrial HDMI Touch Display | Plug & Play
| PN | KD101WUHD01 |
| Size | 10.1 |
| Resolution | 1200*1920 |
| LCD Interface | HDMI 1.4 |
| Brightness(Typ.) | 1400nits |
| CTP Driver IC | GT928 |
| TP Interface | USB(Type C) |
| Operation Temp | -20~70℃ |
| Input Voltage | 12V |
-
Product OverviewThis 10.1 inch high brightness HDMI monitor features a 1200×1920 resolution and optional CTP capacitive touch, designed for sunlight readable outdoor and industrial applications.
With up to 1500 nits brightness, it delivers clear visibility under strong daylight, making it ideal for EV charging stations, outdoor kiosks, and field production / photography monitoring.
The HDMI interface enables fast integration with common hosts—no custom driver development required.
-
Why Choose This 10.1” HDMI High Brightness Monitor?Sunlight Readable 1500nits for Outdoor Use
Most standard displays wash out in bright environments. With up to 1500 nits, this monitor remains readable in outdoor sunlight, improving usability and reducing user errors in industrial and charging station scenarios.

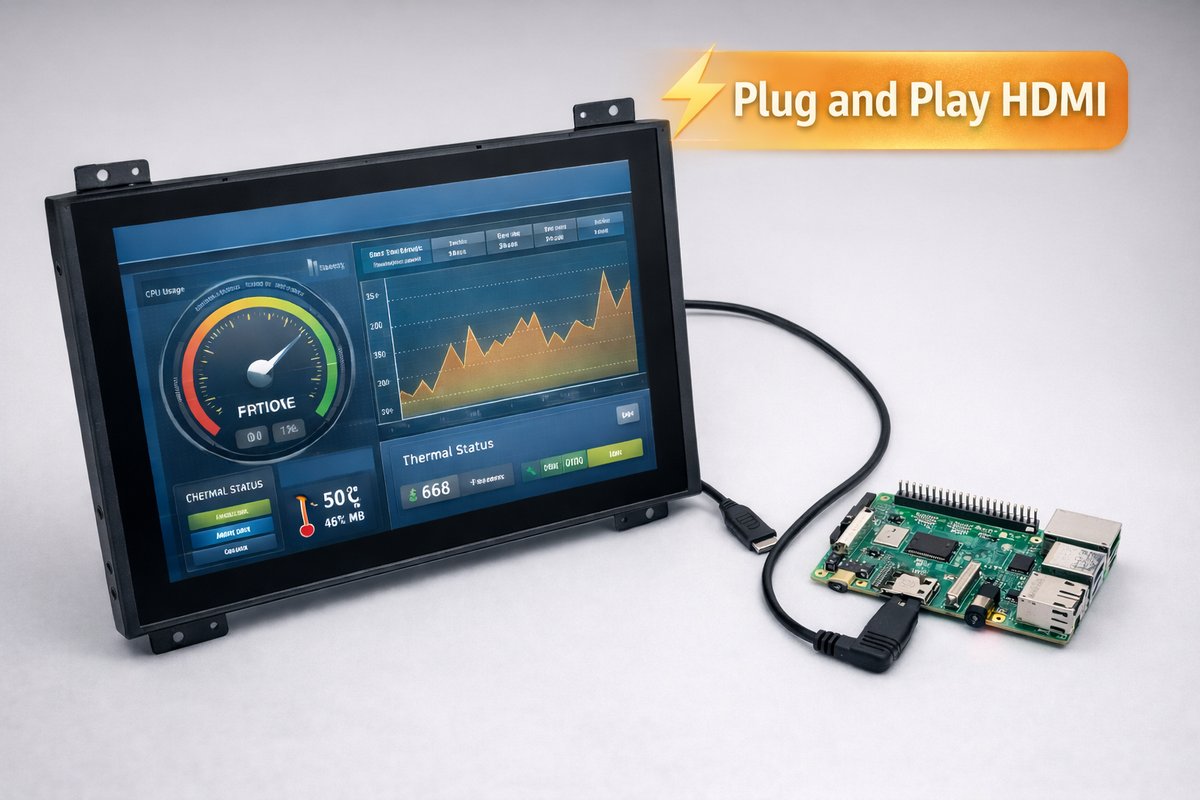

True Plug-and-Play HDMI Integration
The HDMI interface allows quick connection to PCs, industrial controllers, embedded hosts, and common HDMI output devices. This reduces engineering time and speeds up prototype-to-production.
Wide Voltage Input for Industrial Power Systems
Industrial equipment often uses non-standard or fluctuating power rails. Wide voltage input support improves compatibility and simplifies power design for kiosks, charging stations, and field systems.
-
FAQ
Q1: How can I adjust the backlight brightness?
A: Brightness can be controlled by OSD, external PWM, DDC/CI, or UART, depending on your setup.Q2: Can you customize brightness and lifetime?
A: Yes. We support custom brightness (nits) and backlight lifetime for long-term industrial use.Q3: Do you support anti-UV for outdoor applications?
A: Yes. Anti-UV options are available to reduce aging in sunlight environments.Q4: Can you customize cover glass and housing?
A: Yes. We can customize cover glass and enclosure/housing, including size and mounting.Q5: How do you ensure quality?
A: We use a Class 1000 cleanroom, AOI inspection, and quality systems like IATF 16949 and ISO 9001/14001.Q6: Is there an MOQ for standard products?
A: No MOQ for standard items—samples and small orders are supported.Q7: Can you do small-batch custom orders?
A: Yes. Custom orders can start from small batches; MOQ depends on the customization scope.
| Item | Specification |
| PN | KD101WUHD01 |
| Size | 10.1 |
| Resolution | 1200*1920 |
| LCD Interface | HDMI 1.4 |
| TP Interface | USB(Type C) |
| CTP Driver IC | GT928 |
| Bonding Type | Optical bonding |
| Brightness(Typ.) | 1400nits |
| Viewing Direction | 85/85/85/85(Typ.) |
| Reserve External PWM | Yes |
| Scaler option | No |
| Active Area | 135.36*216.58 |
| Outline Dimension（mm） | 162.86*244.08 |
| Operation Temp | -20~70℃ |
| Storage Temp | -30~80℃ |
| Input Voltage | 12V |
