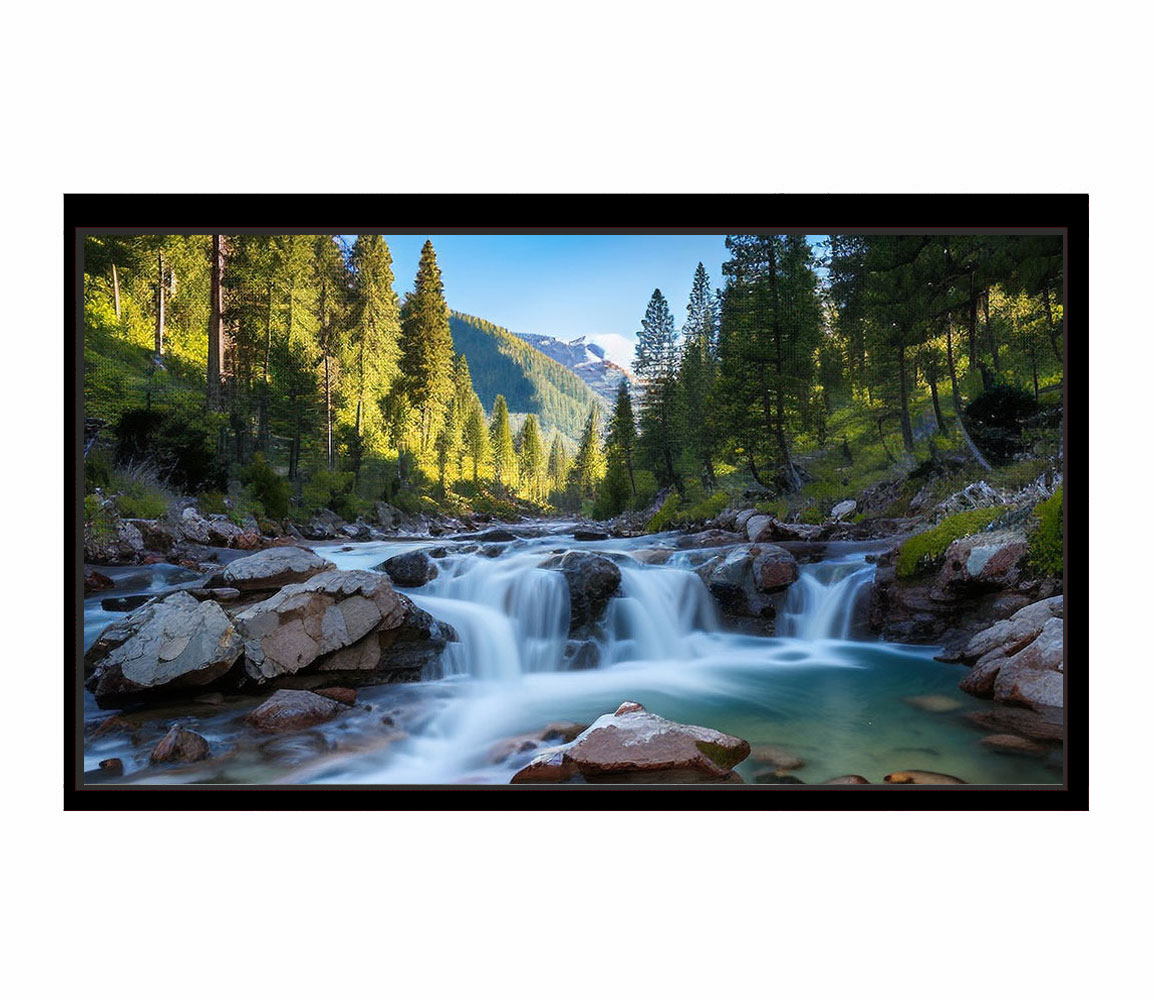

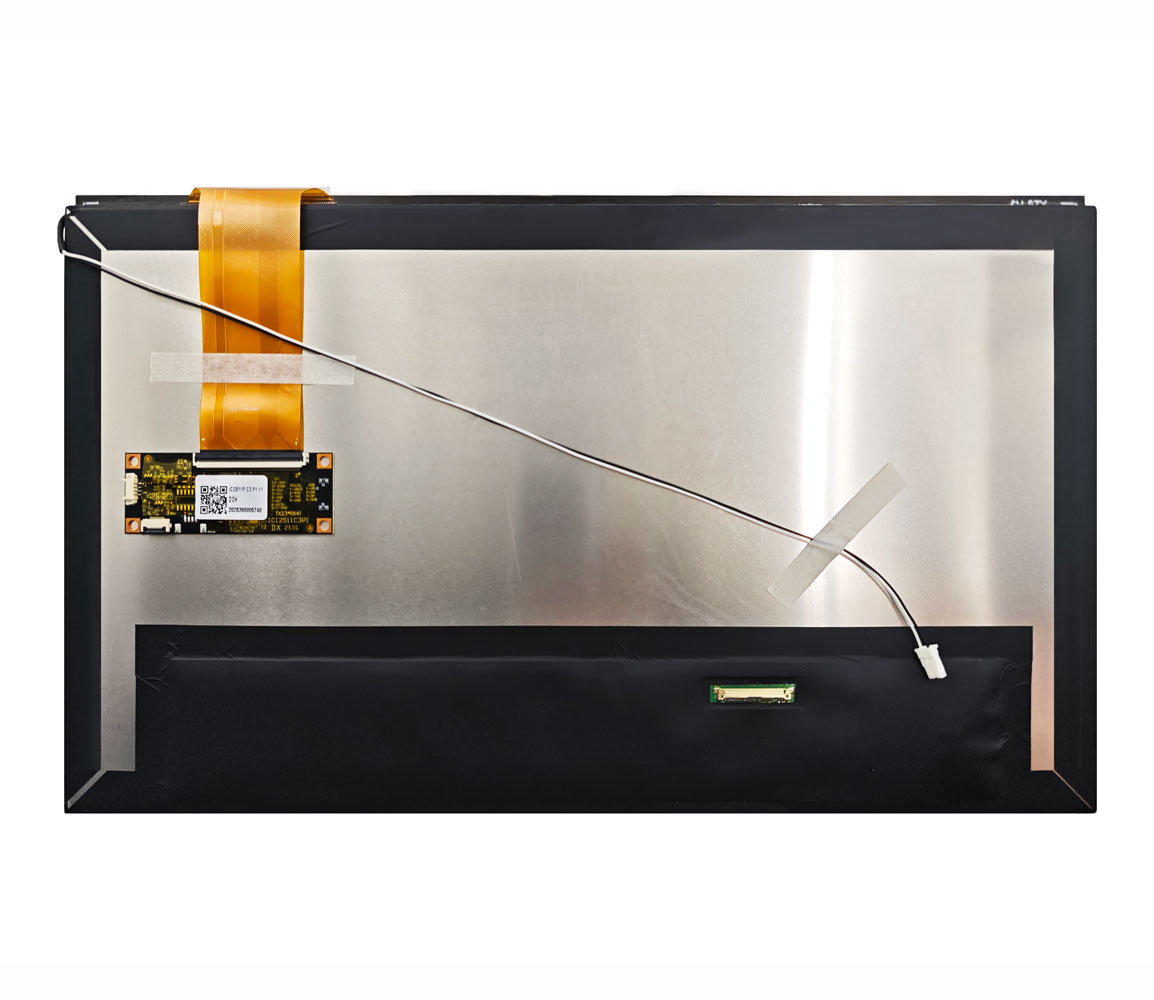

15.6 inch LVDS TFT LCD Screen 1920*1080 with CTP and 3A(AG+AF+AR) film
PN

KD156AWU10EP-FC14-GFR

Size 15.6
Resolution

1920*1080

Interface

LVDS

Brightness

1000nits

TP Driver IC

ILI2511

Operation Temp -20°C~70°C
Storage Tempe -30°C~80°C
  • Sunlight Readable Displays 3
    High brightness and optical bonding

    High-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.

    Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².

    • High contrast enhances image sharpness and detail richness.
    • Sunlight readable
    • High color reproduction
    • Anti UV materials(Ceramic ink/anti UV SCA/OCA)
  • LCD screen
    IPS TFT LCD

    The IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.

    • Excellent color reproduction
    • Good energy efficiency
    • High durability, able to withstand a certain degree of impact and pressure
    • The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
  • 1-
    AOI For Quality Guarantee

    If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

    We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.

  • DSI screen
    Customize Service

    We display your ideas!

    • We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
    • Customize the Backlight, brightness and thickness could be change
    • Customize the Backlight, brightness and thickness could be change
    • Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
    • Customize FPC and Cable
    • Customize housing for easier assembly
Item Specification
LCD Size 15.6
Number of Pixels 1920*1080
Interface LVDS
Brightness(cd/m²) 1000nits
Viewing Direction Free
Display Colors 16.7M
Active Area (mm) 344.16(H)×193.59(V)
Outline Dimension(mm) 359.3(H) x 216.54(V)
TP Driver IC ILI2511
Operation Temp -20°C~70°C
Storage Temp -30°C~80°C
