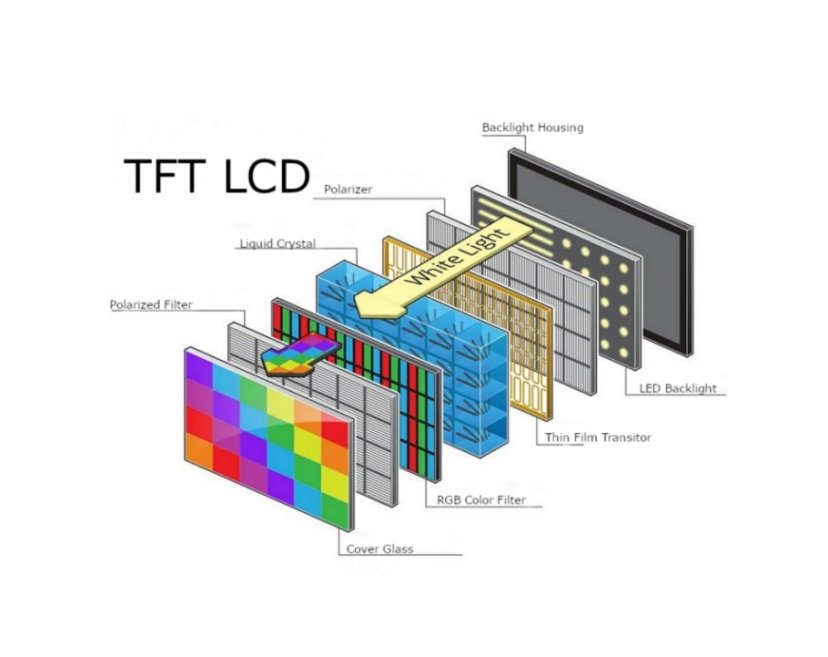

IPS TFT LCDThe IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality GuaranteeIf a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize ServiceWe display your ideas!
- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
| Item | Specification |

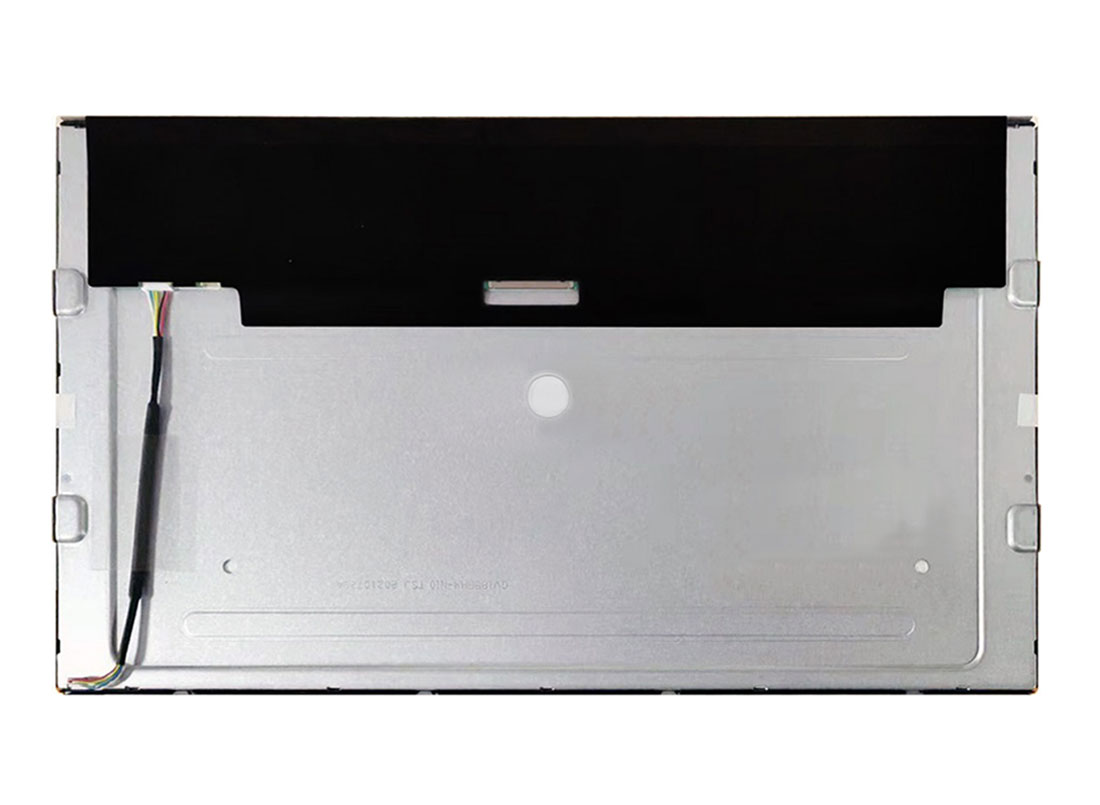

| LCD Size | 18.5 inch |
| Resolution | 1024*600 |
| Interface | LVDS |
| Brightness（cd/m²） | 350nits |
| Viewing Direction | 85/85/85/85(Typ) |
| Active Area （mm） | 408.96 (H) × 230.04(V) |
| Pixel Pitch （mm） | 0.213(H) × 0.213 (V) |
| Display Colors | 16.7M |
| Outline Dimension（mm） | 430.4 (H) × 254.6(V) × 12(D) |
| Operation Temp | -20°C~70°C |
| Storage Temp | -30°C~80°C |
