5.0 ” TFT-LCD Module with CTP

PN	KD050HWV18ES-DC95
Size	5.0
Resolution	800 x 480
Interface	RGB
TP Interface	I²C
Brightness	1000
Operation Temp	-20°C~70°C
Storage Tempe	-30°C~80°C

IPS TFT LCD
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
AOI For Quality Guarantee

If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the Backlight, brightness and thickness could be change
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

Item	KD050HWV18ES-DC95
LCD Size	5.0
Number of Pixels	800 x 480
Interface	RGB
Brightness（cd/m²）	1000
Viewing Direction	Free
Pixel Pitch	0.135 (H) x 0.135 (V)
Display Colors	16.7M

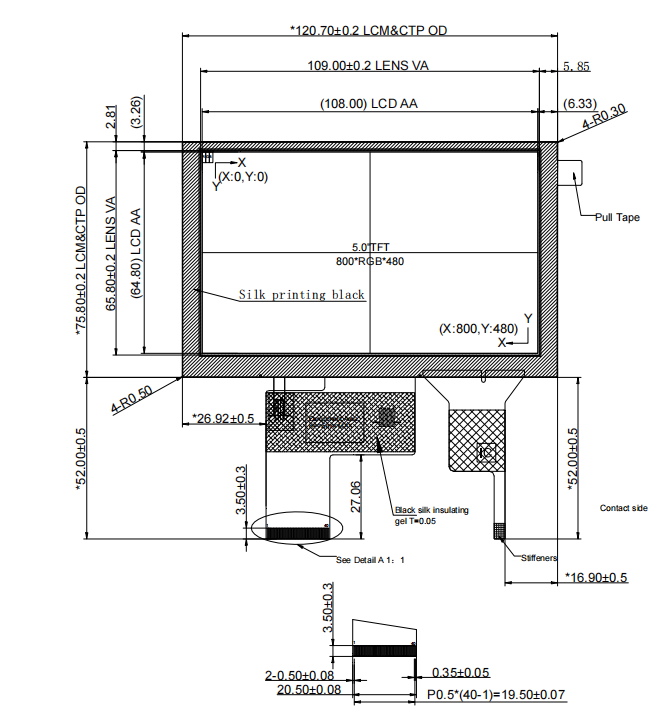

Active Area	108.00 (H) x 64.80 (V)
Outline Dimension（mm）	120.70 (H) x 75.80 (V) x 4.58 (D)
TP Driver IC	MXT640T
Operation Temp	-20°C~70°C
Storage Temp	-30°C~80°C
