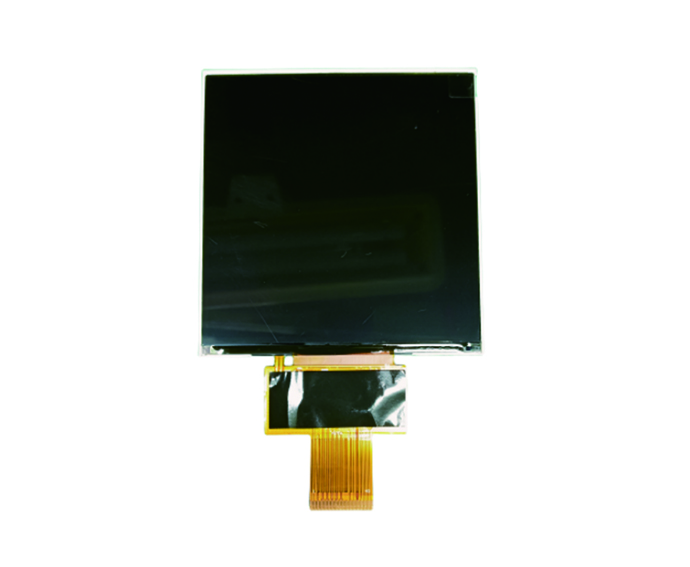

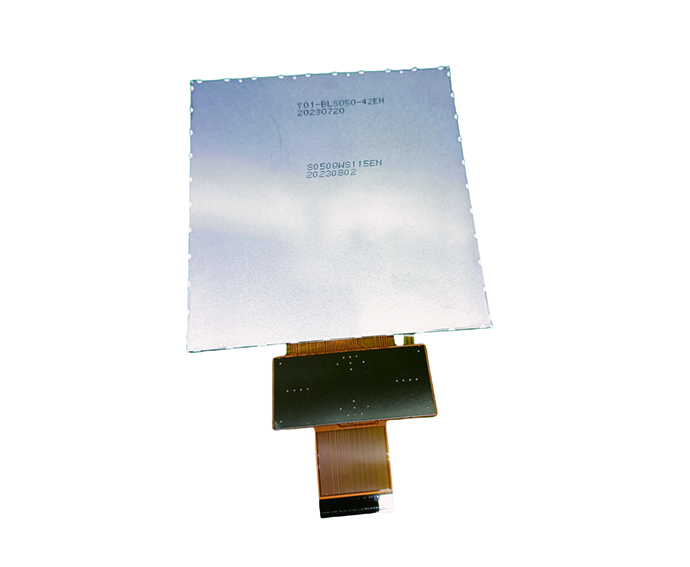

IPS TFT LCDThe IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCD has a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality GuaranteeIf a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize ServiceWe display your ideas!
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the LCM and CTP pinout
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly
| Item | Specification |
| LCD Size | 5.7 inch |
| Number of Pixels | 640 (H) * 480 (V) |
| Interface | RGB |
| Brightness（cd/m²） | 500nits |
| Viewing Direction | 80/80/80/80(Typ) |
| Pixel Pitch | 0.18 (H) x 0.18 (V) |
| Display Colors | 16.7M |
| Active Area | 115.2 (H) x 86.40 (V) |
| Outline Dimension（mm） |
127.0(W)*98.43(L)*5.8(H) |
| Driver IC | JD9168S |
| Operation Temp | -20~70℃ |
| Storage Temp | -30~80℃ |
