IPS TFT LCDIPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Wider viewing angle
- Faster response timeand quickly switch between different colors, reducing smearing and afterimages.
-
Customize Service- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
-
AOI For Quality GuaranteeIf a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.

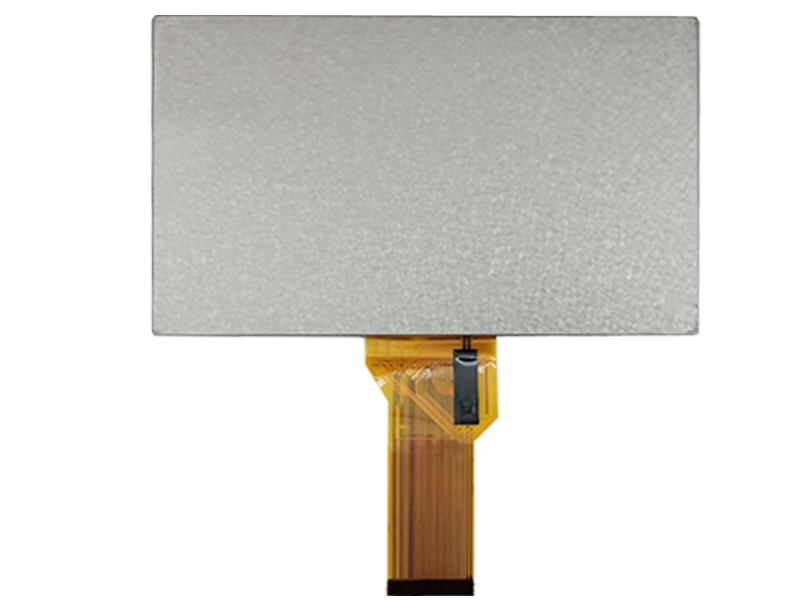

| Item | Specification |
| LCD Size | 7.0 |
| Number of Pixels | 800 x 480 |
| Interface | RGB(40Pin*0.5mm) |
| Brightness（cd/m²） | 1000nits |
| Viewing Direction | Free |
| Pixel Pitch | 0.1905 (H) x 0.1905 (V) |
| Display Colors | 16M |
| Active Area | 152.4 (H) x 91.44 (V) |
| Outline Dimension（mm） | 165 (H) x 104 (V) x 3.5 (D) |
| Driver IC | HX8264+HX8664 |
| Operation Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
