7.5inch 800x800 highlight square LCD display with Optical bonding - Kadi Dsipaly

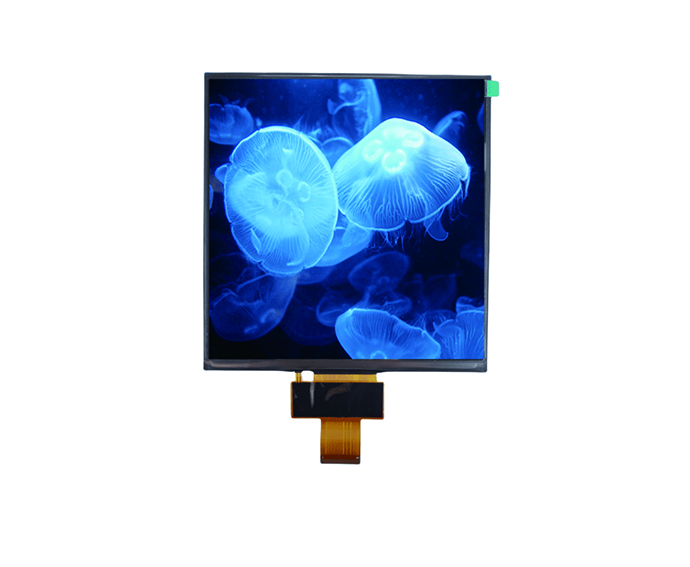

7.5inch 800×800 highlight square LCD display with Optical bonding

PN	KD075BWX01EP-FC01
Size	7.5
Resolution	800×800
Interface	MIPI
Brightness	850nits
Driver IC	GT9271
Operation Temp	-20~70°C
Storage Temp	-30~80°C

High Brightness
The high-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.

Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².
- High contrast enhances image sharpness and detail richness.
- SunlightVisible
- High color reproduction
IPS TFT LCD
The IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
AOI For Quality Guarantee

If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the LCM and CTP pinout
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

Item	Specification
LCD Size	7.5
Number of Pixels	800×800
Interface	MIPI
LCD Driver IC	ILI9881C
Brightness（cd/m²）	850nits
Viewing Direction	Free
Pixel Pitch	0.1692 (H) x 0.1692(V)
Display Colors	16.7M
Active Area	135.36 (H) x 135.36 (V)
Outline Dimension（mm）	142.52 (H) x 148.20 (V) x 6.96 (D)
Driver IC	GT9271
Operation Temp	-20~70°C
Storage Temp	-30~80°C
TP Interface	I²C
