8.0 inch 1024x768 TFT LCD with LVDS interface 1000nits - Kadi Dsipaly

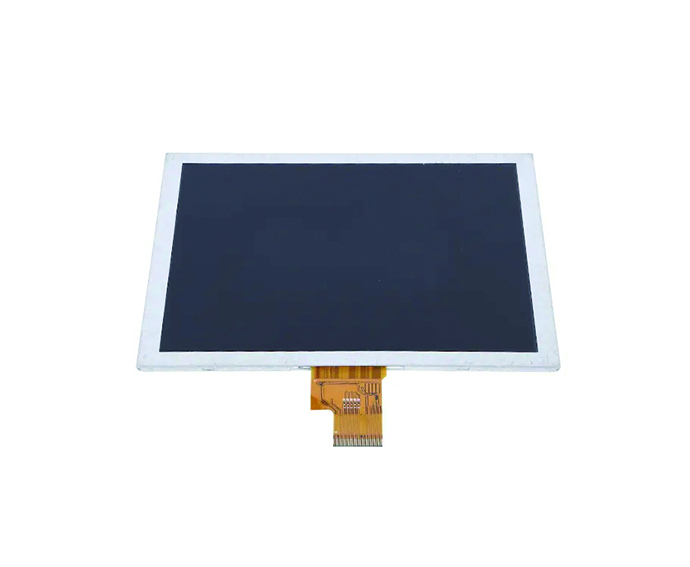

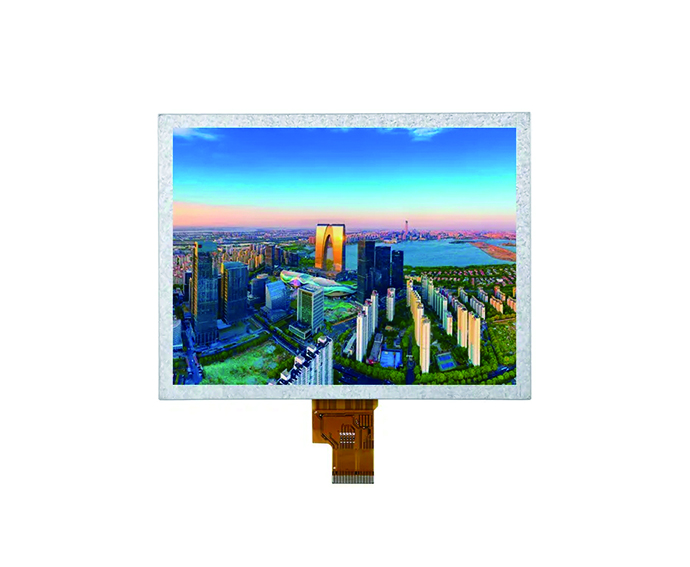

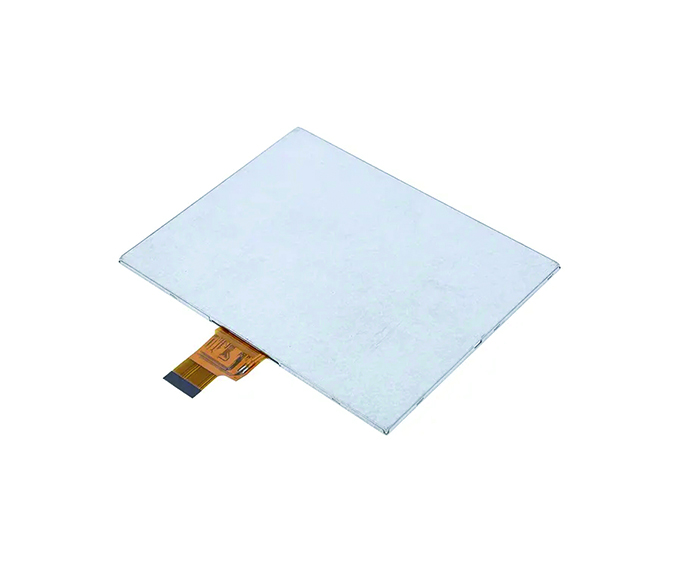

8.0 inch 1024×768 TFT LCD with LVDS interface 1000nits

PN	KD080QXG04EA
Size	8.0
Resolution	1024×768
Interface	LVDS(40Pin-0.5mm)
Brightness	1000nits
Operation Temp	-20~70
Storage Temp	-30~80

High Brightness
High-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.

Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².
- High contrast enhances image sharpness and detail richness.
- Sunlight Visible
- High color reproduction
IPS TFT LCD
IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Wider viewing angle
- Faster response timeand quickly switch between different colors, reducing smearing and afterimages.
AOI For Quality Guarantee

If displays can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process.

The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A

Item	Specification
LCD Size	8.0
Number of Pixels	1024 (H) RGB x 768 (V)
Interface	LVDS(40Pin-0.5mm)
Brightness（cd/m²）	800
Viewing Direction	Free
Pixel Pitch	0.1582 (H) x 0.1582 (V)
Display Colors	16.7M
Active Area	162.05 (H) x 121.54 (V)
Outline Dimension（mm）	183 (H) x 141 (V) x 6.15 (D)
Driver IC	NT51008M+NT39212Fx2
Operation Temp	-20~70
Storage Temp	-30~80
