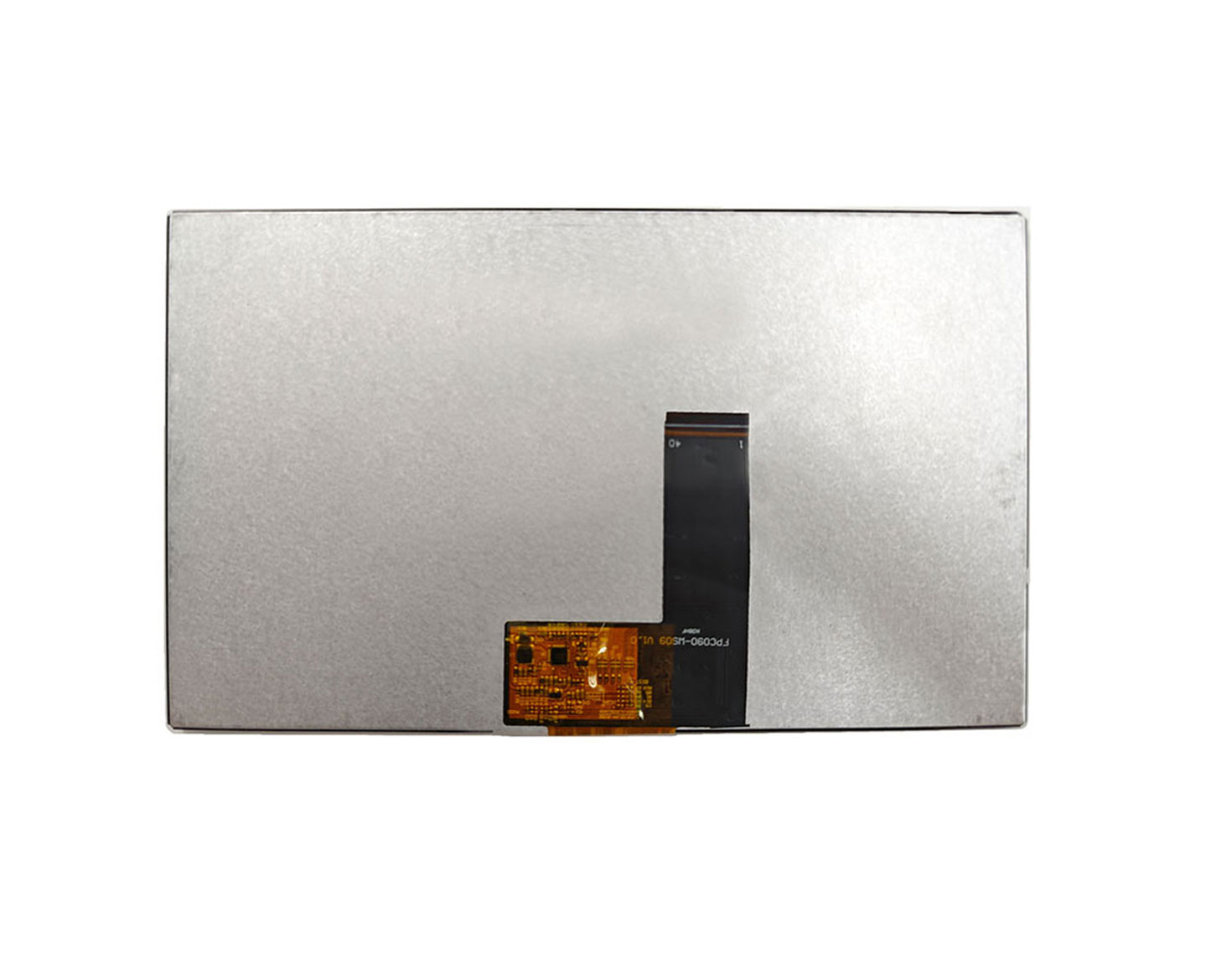

9 inch 1024*600 LVDS industrial TFT LCD display 500nits

9 inch 1024*600 LVDS industrial TFT LCD display 500nits

PN	KD090BWS09HB
Size	9 inch
Resolution	1024*600
Video Interface	LVDS
Brightness	500nits
Viewing Direction	Free
Operation Temp	-20°C~70°C
Storage Temp	-30°C~80°C

High brightness and optical bonding
Industrial displays require special details to ensure that it can work stably for a long time in complex environments.
- Optical bonding prevent water and dust
- High brightness ensure outdoor application
- Wide operating temperature（-20~70℃）
- Anti UV materials（Ceramic ink/anti UV SCA/OCA）
Customize Service
We display your ideas!
- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
AOI For Quality Guarantee

If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.

Item	Specification
LCD Size9	inch
Resolution	1024*600
Interface	LVDS
Brightness（cd/m²）	500nits
Viewing Direction	Free
Active Area	196.61 (H) x 114.15 (V)
Pixel Pitch	0.1920 (H) x 0.1902 (V)
Display Colors	16.7M
Outline Dimension（mm）	210.7 (H) x 126.5 (V) x 5.2 (D)
Operation Temp	-20°C~70°C
Storage Temp	-30°C~80°C
Power Input	5V
