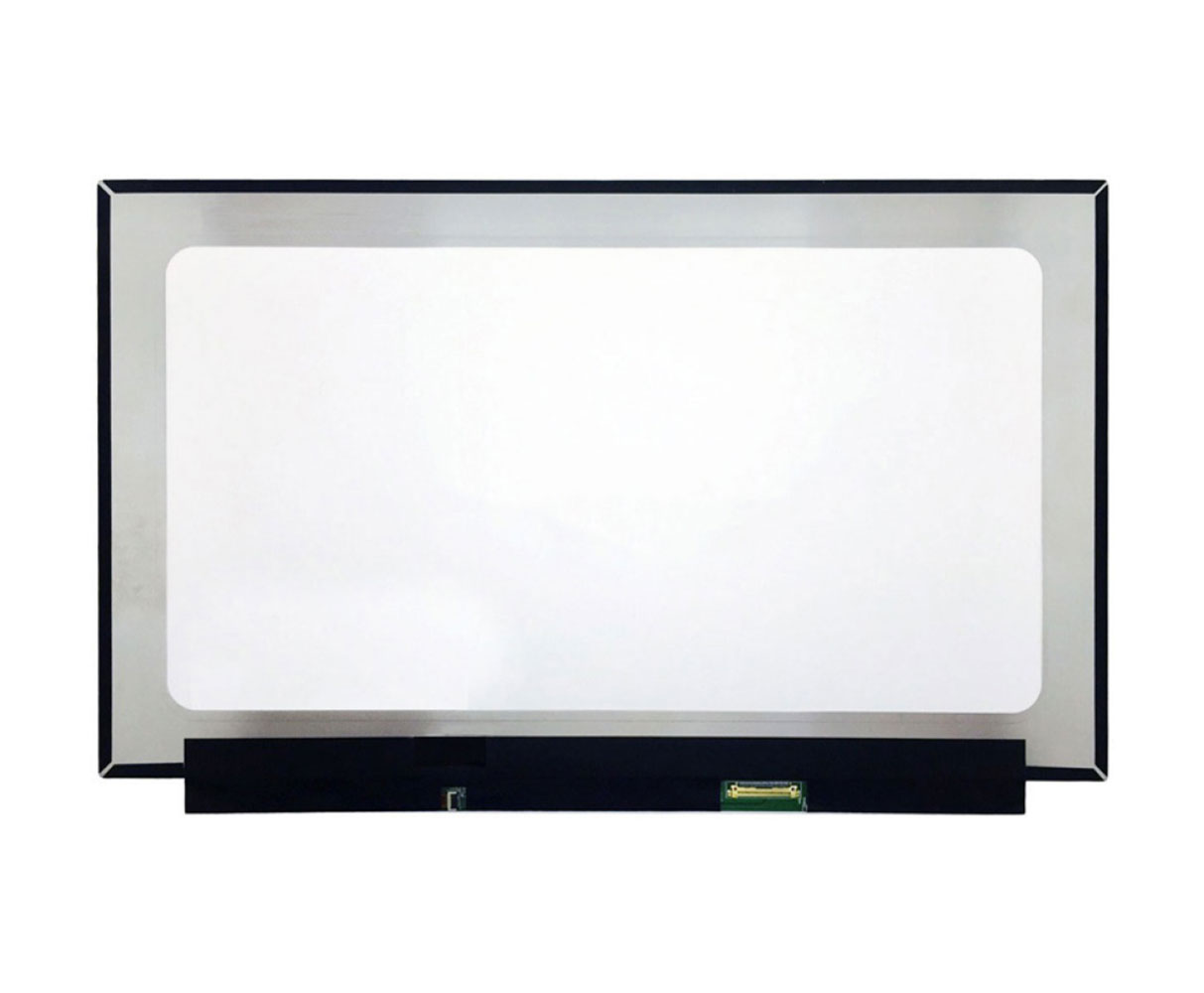

IPS TFT LCDThe IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality GuaranteeIf a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize Service- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the LCM and CTP pinout
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly
| Item | Specification |
| LCD Size | 13.3 |
| Resolution |
1920*1080 |
| Interface | eDP |
| Brightness（cd/m²） | 300nits |
| Viewing Direction | 85/85/85/85（Typ） |
| Pixel Pitch | 0.153(H) x 0.153(V)mm |
| Display Colors |
26.2M |
| Active Area(mm) | 293.76 (H) x 165.24(V) |
| Outline Dimension（mm） |
300.26(H)*188.25(V) (W/PCB)*2.5(Max) 300.26(H)*177.39(V)*2.5(Max) |
| Operation Temp | -0~50°C |
| Storage Temp | -20~60°C |
