HDMI LCD displays work well as flexible options for adding sharp visual output to different systems. These screens take regular HDMI signals from computers, embedded devices, industrial controllers, or media players and turn them into bright, quick-responding displays. Many include extra features like touch support. A lot of models come with built-in controller boards. These boards manage signal changes, power supply, and touch signals in a smooth way.

A normal HDMI LCD display has an HDMI port for video input and a USB link for touch information. Power usually arrives through a separate connector or a USB-C port. This depends on the screen size and how much power it needs. After you connect it, the display copies or expands the output from the source device. It offers plug-and-play support in most operating systems. Touch input starts working right away. It handles multi-touch movements without extra drivers in places like Windows.

Versions with high brightness often hit 1000 nits or higher. They stay visible in tough lighting, such as outdoors or in very bright industrial areas. IPS panel tech gives wide viewing angles, usually 85 degrees or more from every side. It keeps colors true and contrast strong no matter the angle. Resolutions like 1280×800 on 10.1-inch models or 1024×600 on 7-inch ones bring sharp pictures for tasks that need detail.

Kadi Display provides industrial-grade HDMI LCD displays with these traits. For example, one 10.1-inch model has 1280×720 resolution, 1100 nits brightness, HDMI/Type-C ports, and a wide operating range from -20°C to 70°C. Displays like these fit industrial settings. They offer strong ESD protection, low EMC emissions, and a lifespan over 50,000 hours.

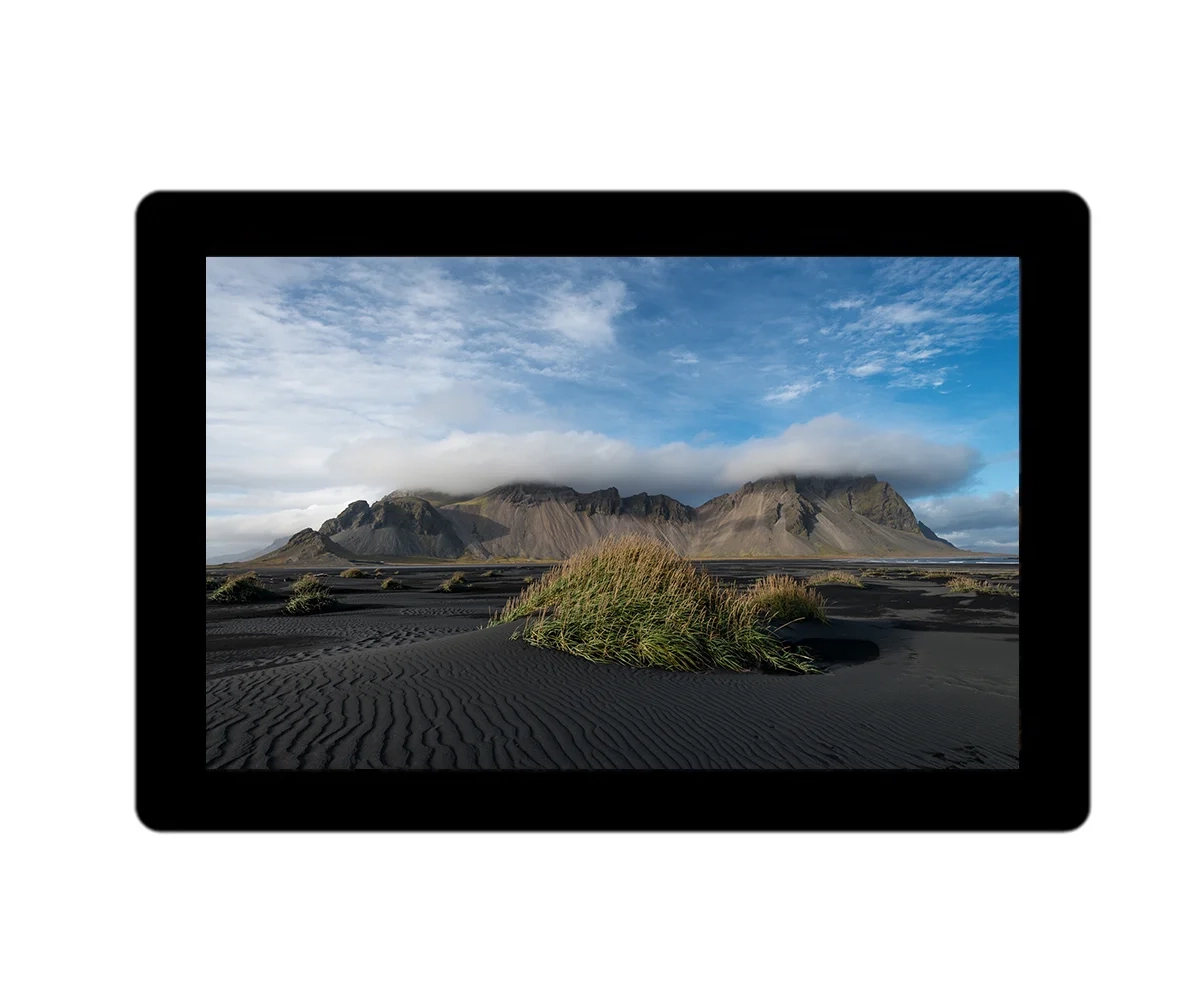

Kadi Display 10.1-Inch HDMI LCD Display Features

The 10.1-inch HDMI LCD display excels because it combines strong brightness with a tough build. With 1280×720 resolution, it delivers clear pictures in a small size. The 1100 nits brightness allows good visibility in direct sunlight. This makes it perfect for outdoor kiosks, car dashboards, or factory areas.

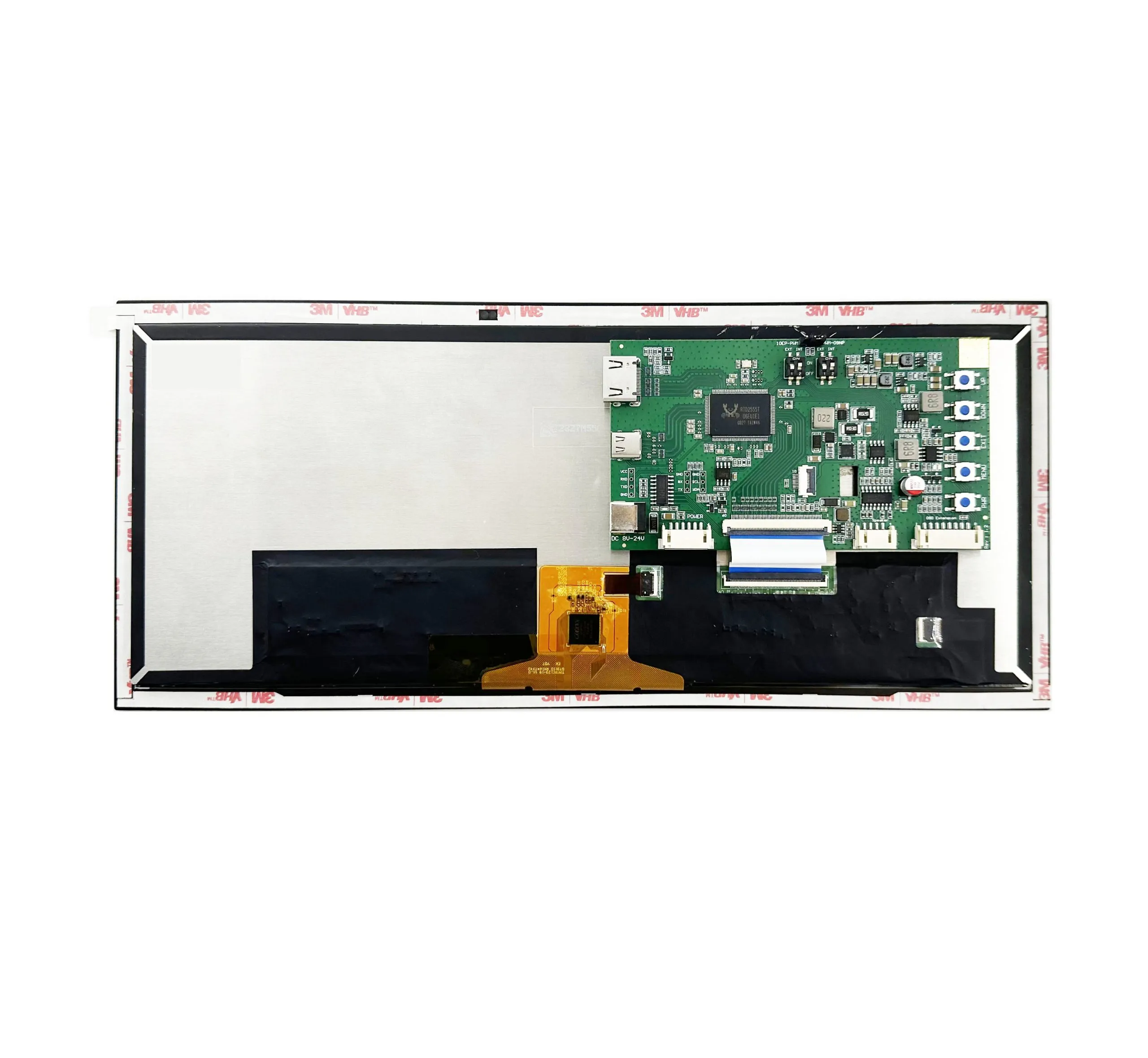

The built-in controller board handles HDMI 1.4 and DisplayPort 1.2 inputs. It also uses Type-C for power and possible touch support. Viewing angles hit 85/85/85/85 degrees. This keeps image quality steady. The display runs well over a broad temperature span. It can handle storage from -30°C to 80°C.

Other features include adjustable zoom levels to fit content between ratios like 4:3 and 16:9. There are on-screen menus for changes and external PWM to control brightness. These parts help fit the display into automatic setups. In those setups, brightness can change based on surrounding light.

Kadi Display HDMI LCD Displays – Additional Connectors and Optional Cover Glass

Many HDMI LCD models from Kadi Display have extra ports on the controller board. Some support outside keyboards. Others take backlight PWM signals for changing brightness from industrial controls. There are also different power choices.

The touchscreens use capacitive tech, usually at industrial level. They support up to 10-point multi-touch. These screens work well in loud or messy places. They respond to gloves and stay functional even with water or thick covers on top. Optional cover glass can go up to 15 mm thick. This meets standards for vandal-proof use in public spots or rough locations. Optical bonding makes them last longer. It cuts glare and boosts contrast.

Firmware tweaks allow thicker glass to work without changing the main touch parts. Connections like USB for touch and HDMI for video keep setup simple and direct.

Kadi Display HDMI LCD Displays – Mountings, MOQ

Mounting choices include basic frames with hooks for quick setup. Some have tablet-like styles with sticky backs for flat fitting into device cases. These options make it easy to place displays inside custom boxes for industrial, medical, or car uses.

Kadi Display has no minimum order quantity (MOQ). Orders can start from one piece and go up to large amounts. Products often leave from stock or arrive fast through worldwide partners. This kind of flexibility helps with prototypes, small runs, and big projects.

Kadi Display – A Leading Display Manufacturer

Kadi Display works as a professional manufacturer and supplier in Shenzhen, China. It brings more than 20 years of skill in TFT LCD, OLED, and similar fields. The company runs a factory bigger than 10,000 square meters. It uses automatic lines for large production and custom work.

Certifications cover ISO9001, ISO14001, ISO13485, and IATF16949. These guarantee quality for industrial, medical, and automotive areas. Strict AOI checks during production, immersion gold PCBs, and reliable methods help products last longer.

As a one-stop supplier, Kadi Display supplies full solutions. These include LCM, CTP touch, signal adapter boards (HDMI, MIPI, LVDS, etc.), optical bonding, custom cover glass, and housings. High-brightness choices go above 800 nits. Some reach 2500 nits to handle tough conditions. No MOQ rules and fast custom work speed up project timelines.

FAQ

What interfaces do Kadi Display HDMI LCD displays typically support?

HDMI for video, USB or Type-C for touch and power, with additional options like PWM for brightness control.

Are these displays suitable for outdoor use?

Yes, high-brightness models (1000+ nits) and wide-temperature ranges (-20°C to 70°C operation) ensure performance in sunlight and harsh conditions.

Do the touchscreens require drivers?

In most systems like Windows, touch functionality is plug-and-play; industrial-grade capacitive touch supports multi-point input and gloved/wet operation.

What customization options are available?

Cover glass (shape, thickness, logo), backlight brightness, interfaces (HDMI, MIPI, etc.), optical bonding, and mounting solutions.

Is there a minimum order quantity?

No MOQ applies, supporting orders from 1 piece onward.

Partner with Kadi Display for Your Industrial Display Needs

For manufacturers, OEM/ODM partners, system integrators, and suppliers who need reliable HDMI LCD displays, high-brightness TFT solutions, or custom industrial screens, Kadi Display stands ready as a trusted manufacturer, supplier, and factory. With solid experience in HDMI interfaces, touchscreen integration, and strong designs, the company offers custom solutions without MOQ limits.

Contact the team today at Sales@sz-kadi.com or +86-13662585086. Ask for datasheets, samples, quotes, or talk about project details. Check the full product lineup at https://www.kadidisplay.com/product/ and improve projects with high-quality, certified display technology.
