Product Category Description
Explore high-quality industrial TFT LCD display modules from Kadi Display, offering various sizes, resolutions, and interfaces. Ideal for industrial control, embedded systems, and custom display solutions, with flexible OEM/ODM support.
-
PN KD060BWX01EN
Size 6.0 inch Resolution 720*1440 Video Interface MIPI Brightness 1000nits Viewing Direction Free OD 74.04 × 146.35 × 3.9 mm AA 68.04 × 136.08 mm Operation Temp -20°C~70°C Storage Temp -30°C~80°C PN KD060BWX01EN
Size 6.0 inch Resolution 720*1440 Video Interface MIPI Brightness 1000nits Viewing Direction Free OD 74.04 × 146.35 × 3.9 mm AA 68.04 × 136.08 mm Operation Temp -20°C~70°C Storage Temp -30°C~80°C PN KD060BWX01EN
Size 6.0 inch Resolution 720*1440 Video Interface MIPI Brightness 1000nits Viewing Direction Free OD 74.04 × 146.35 × 3.9 mm AA 68.04 × 136.08 mm Operation Temp -20°C~70°C Storage Temp -30°C~80°C -
PN KD101ZWX104FP
Size 10.1 inch Resolution 1280*720 Video Interface MIPI Brightness 1700nits Viewing Direction Free OD 236.06 × 142.96 × 5.2 mm AA 224.64 × 126.36 mm Operation Temp -30°C~70°C Storage Temp -30°C~80°C PN KD101ZWX104FP
Size 10.1 inch Resolution 1280*720 Video Interface MIPI Brightness 1700nits Viewing Direction Free OD 236.06 × 142.96 × 5.2 mm AA 224.64 × 126.36 mm Operation Temp -30°C~70°C Storage Temp -30°C~80°C PN KD101ZWX104FP
Size 10.1 inch Resolution 1280*720 Video Interface MIPI Brightness 1700nits Viewing Direction Free OD 236.06 × 142.96 × 5.2 mm AA 224.64 × 126.36 mm Operation Temp -30°C~70°C Storage Temp -30°C~80°C -
PN KD101HWU85EP
Size 10.1 inch Resolution 1920*1200 Video Interface EDP Brightness 900nits Viewing Direction Free Operation Temp -20°C~60°C Storage Temp -30°C~70°C PN KD101HWU85EP
Size 10.1 inch Resolution 1920*1200 Video Interface EDP Brightness 900nits Viewing Direction Free Operation Temp -20°C~60°C Storage Temp -30°C~70°C PN KD101HWU85EP
Size 10.1 inch Resolution 1920*1200 Video Interface EDP Brightness 900nits Viewing Direction Free Operation Temp -20°C~60°C Storage Temp -30°C~70°C -
PN EV101WXM-N10 Size 10.1 Resolution 1280*800 Interface LVDS Brightness 400nits Display Colors 16.2M ViewingDirection Free Operation Temp -20~70℃ Storage Temp -30~70℃ PN EV101WXM-N10 Size 10.1 Resolution 1280*800 Interface LVDS Brightness 400nits Display Colors 16.2M ViewingDirection Free Operation Temp -20~70℃ Storage Temp -30~70℃ PN EV101WXM-N10 Size 10.1 Resolution 1280*800 Interface LVDS Brightness 400nits Display Colors 16.2M ViewingDirection Free Operation Temp -20~70℃ Storage Temp -30~70℃ -

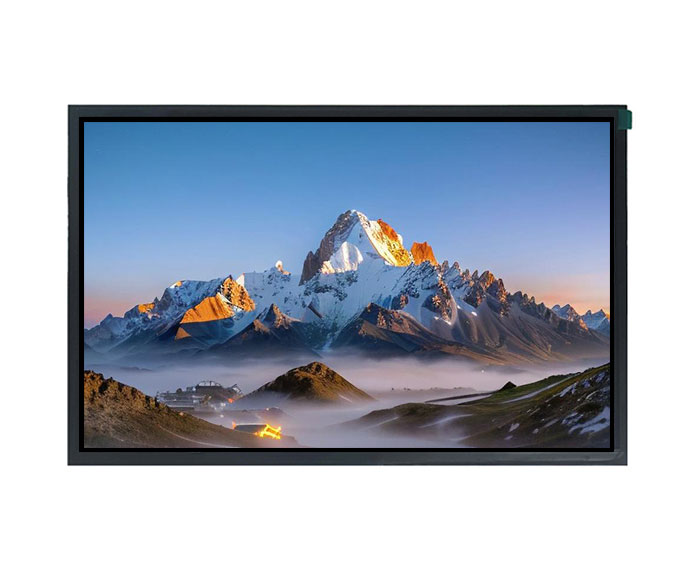

PN KD101BWU78EP Size 10.1 Resolution 1920 x 1200 Interface LVDS(45Pin-0.5mm) Brightness 1000nits Display Colors 16.7M Viewing Direction ALL Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101BWU78EP Size 10.1 Resolution 1920 x 1200 Interface LVDS(45Pin-0.5mm) Brightness 1000nits Display Colors 16.7M Viewing Direction ALL Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101BWU78EP Size 10.1 Resolution 1920 x 1200 Interface LVDS(45Pin-0.5mm) Brightness 1000nits Display Colors 16.7M Viewing Direction ALL Operation Temp -20~70℃ Storage Temp -30~80℃ -
PN KD101HWX45EP
Size 10.1 inch Resolution 1280*800 Video Interface LVDS Brightness 1000nits Viewing Direction 80/80/80/80(Typ) Operation Temp -30°C~80°C Storage Temp -30°C~85°C PN KD101HWX45EP
Size 10.1 inch Resolution 1280*800 Video Interface LVDS Brightness 1000nits Viewing Direction 80/80/80/80(Typ) Operation Temp -30°C~80°C Storage Temp -30°C~85°C PN KD101HWX45EP
Size 10.1 inch Resolution 1280*800 Video Interface LVDS Brightness 1000nits Viewing Direction 80/80/80/80(Typ) Operation Temp -30°C~80°C Storage Temp -30°C~85°C -

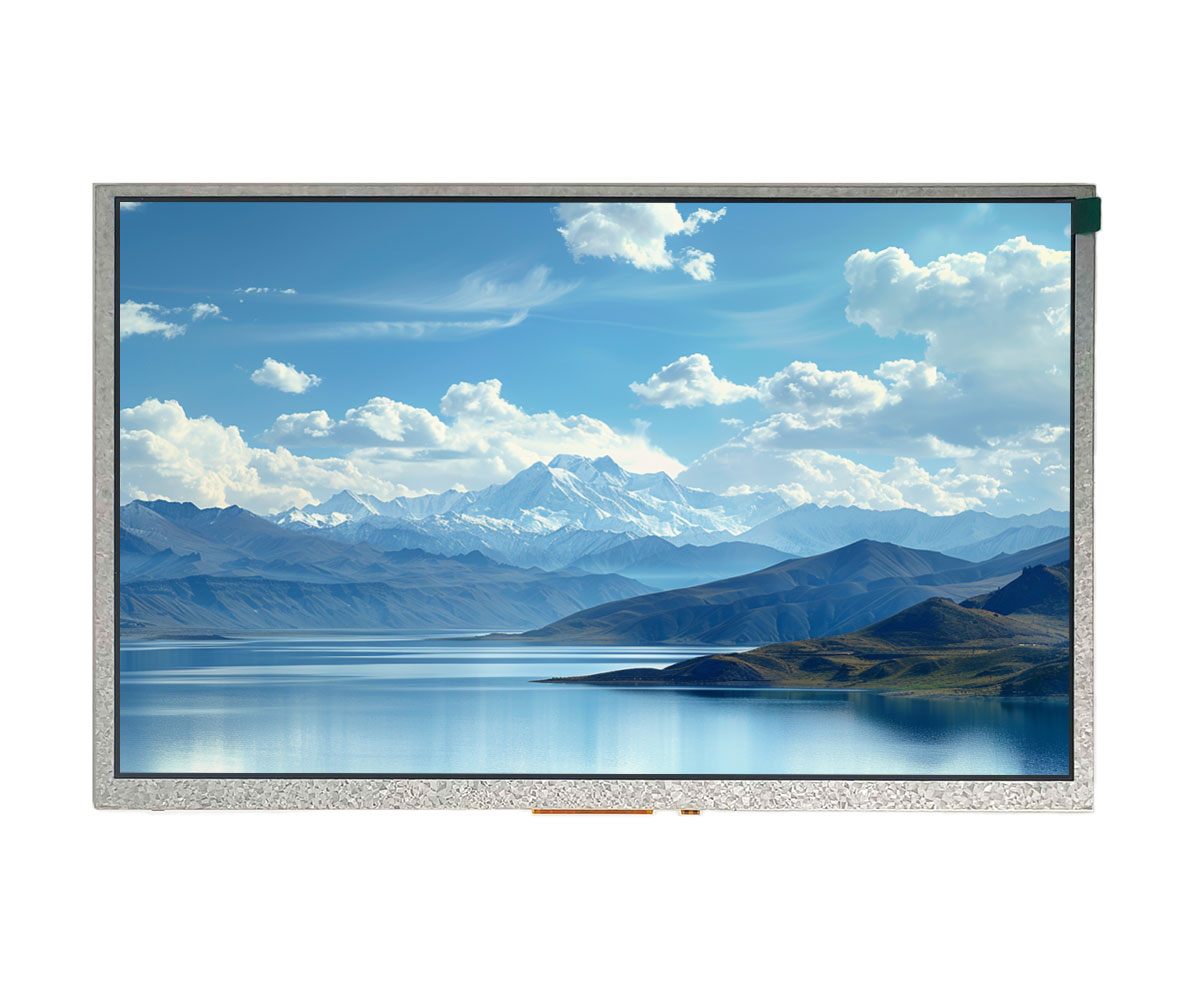

PN KD101HWX53ED Size 10.1 Resolution 1280×800 Interface LVDS(40Pin-0.5mm) Brightness 1000nits Display Colors 16.7M Viewing Direction 80/80/80/80(Typ) Operation Temp -30~80℃ Storage Temp -30~80℃ PN KD101HWX53ED Size 10.1 Resolution 1280×800 Interface LVDS(40Pin-0.5mm) Brightness 1000nits Display Colors 16.7M Viewing Direction 80/80/80/80(Typ) Operation Temp -30~80℃ Storage Temp -30~80℃ PN KD101HWX53ED Size 10.1 Resolution 1280×800 Interface LVDS(40Pin-0.5mm) Brightness 1000nits Display Colors 16.7M Viewing Direction 80/80/80/80(Typ) Operation Temp -30~80℃ Storage Temp -30~80℃ -
PN KD101HWX33HD Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 500nits Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101HWX33HD Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 500nits Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101HWX33HD Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 500nits Operation Temp -20~70℃ Storage Temp -30~80℃ -
PN KD101HWX34EP Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 1000nits Driver IC EK79202 Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101HWX34EP Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 1000nits Driver IC EK79202 Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101HWX34EP Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 1000nits Driver IC EK79202 Operation Temp -20~70℃ Storage Temp -30~80℃ -
PN KD101BWX49EP Size 10.1 Resolution 800×1280 Interface MIPI(40Pin-0.5mm) Brightness 750nits Display Colors 16.2M Viewing Direction 85/85/85/85（Typ） Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101BWX49EP Size 10.1 Resolution 800×1280 Interface MIPI(40Pin-0.5mm) Brightness 750nits Display Colors 16.2M Viewing Direction 85/85/85/85（Typ） Operation Temp -20~70℃ Storage Temp -30~80℃ PN KD101BWX49EP Size 10.1 Resolution 800×1280 Interface MIPI(40Pin-0.5mm) Brightness 750nits Display Colors 16.2M Viewing Direction 85/85/85/85（Typ） Operation Temp -20~70℃ Storage Temp -30~80℃ -

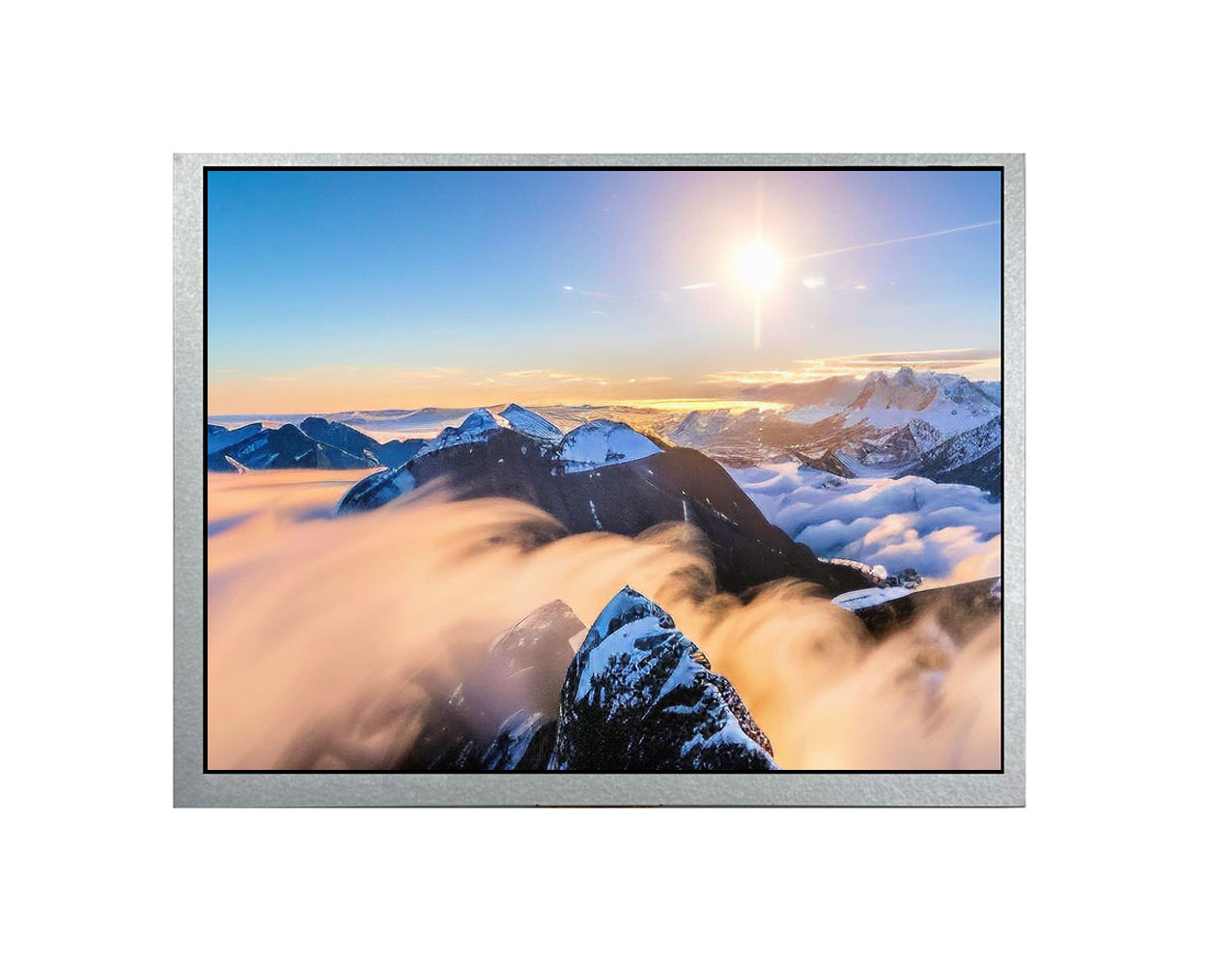

PN TM104SDHG30-71
Size 10.4 Resolution 800 x 600 Brightness 350nits Interface RGB Operation Temp -20°C~70°C Storage Tempe -30°C~80°C PN TM104SDHG30-71
Size 10.4 Resolution 800 x 600 Brightness 350nits Interface RGB Operation Temp -20°C~70°C Storage Tempe -30°C~80°C PN TM104SDHG30-71
Size 10.4 Resolution 800 x 600 Brightness 350nits Interface RGB Operation Temp -20°C~70°C Storage Tempe -30°C~80°C -

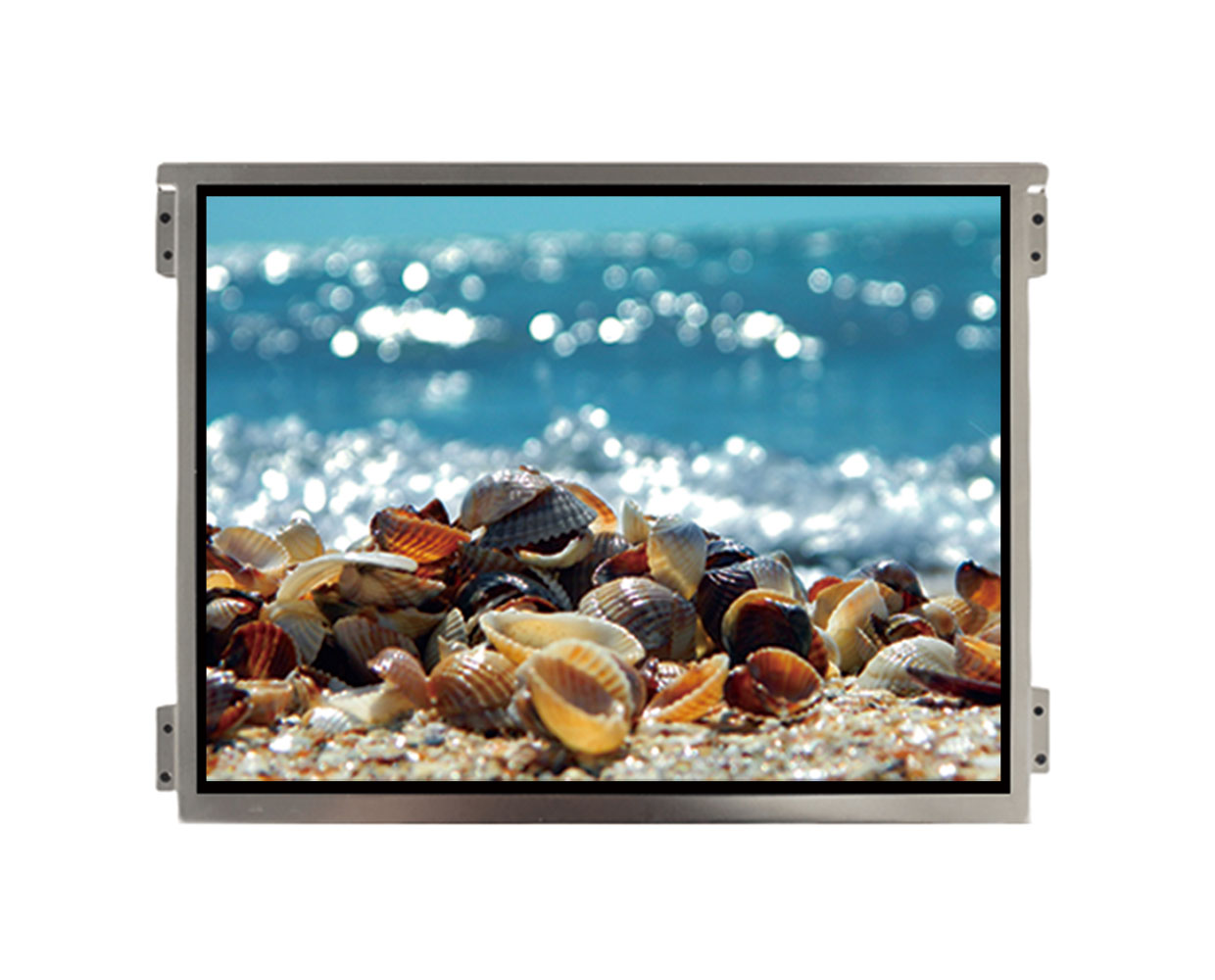

PN KD104QX06HA Size 10.4 Resolution 1024*768 Interface LVDS(30Pin-0.5mm) Brightness 500nits Display Colors 16.7M Viewing Direction Free Operation Temp -20~70℃ Storage Temp -20~70℃ PN KD104QX06HA Size 10.4 Resolution 1024*768 Interface LVDS(30Pin-0.5mm) Brightness 500nits Display Colors 16.7M Viewing Direction Free Operation Temp -20~70℃ Storage Temp -20~70℃ PN KD104QX06HA Size 10.4 Resolution 1024*768 Interface LVDS(30Pin-0.5mm) Brightness 500nits Display Colors 16.7M Viewing Direction Free Operation Temp -20~70℃ Storage Temp -20~70℃
