10.4” 800*600 TFT-LCD Module TM104SDHG30-71 - Kadi Dsipaly

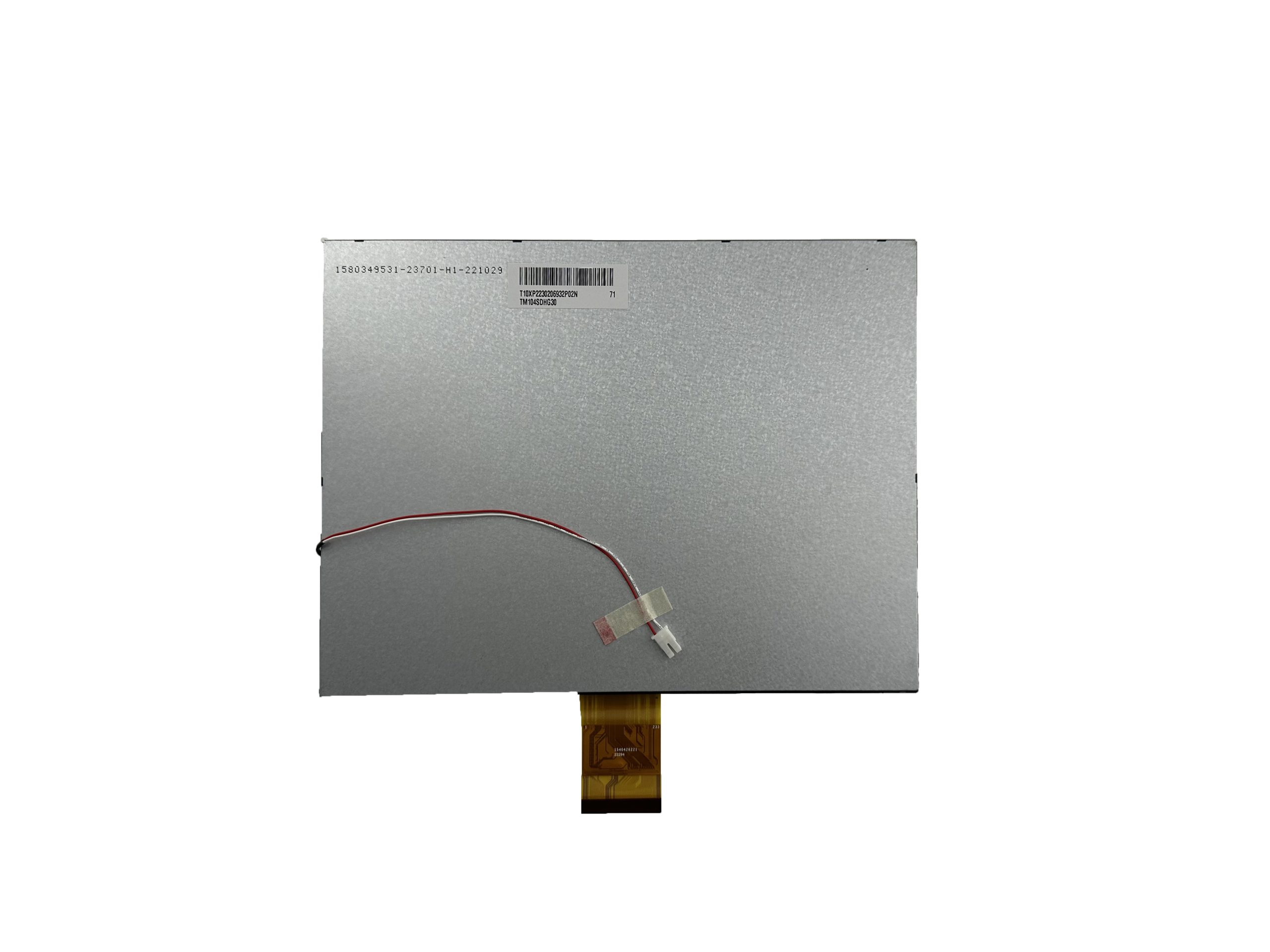

10.4” 800*600 TFT-LCD Module TM104SDHG30-71

PN	TM104SDHG30-71
Size	10.4
Resolution	800 x 600
Brightness	350nits
Interface	RGB
Operation Temp	-20°C~70°C
Storage Tempe	-30°C~80°C

IPS TFT LCD
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
AOI For Quality Guarantee

If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the Backlight, brightness and thickness could be change
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

Item	Specification
LCD Size	10.4
Number of Pixels	800 x 600
Interface	RGB
Brightness（cd/m²）	350nits
Viewing Direction	Free
Pixel Pitch	0.264×0.264
Display Colors	16.7M
Active Area	211.20×158.40
Outline Dimension（mm）	228.4(H) x 175.4 (V) x 6.2 (D)
Operation Temp	-20°C~70°C
Storage Temp	-30°C~80°C
