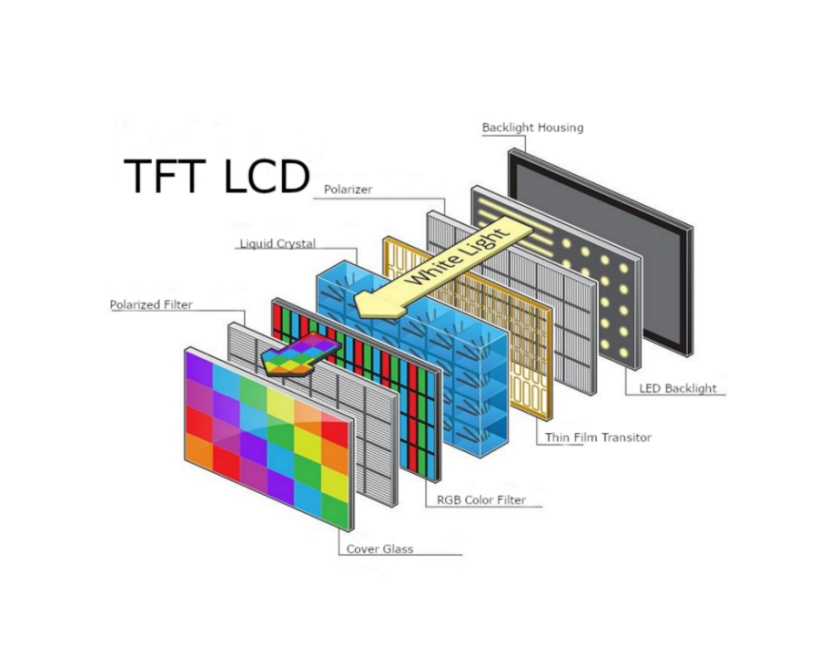

IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.

• Excellent color reproduction
• Wide viewing angle
• Fasterresponse time and quickly switch between different colors, reducing smearing and afterimages.

Optical bonding is a method that involves bonding TFT LCD and CTP using optical materials. This technique uses a transparent adhesive, such as Optically Clear Adhesive (OCA) or Optical Clear Resin (OCR) liquid optical adhesive, to bond the layers together, eliminating air gaps. This process improves the performance and readability of the display:

• Eliminating air gaps to reduce light reflection and scattering
• Prevent dust and moisture from entering the display
• Improve touch screen accuracy and sensitivity, reducingfalse touches and delays
• Enhancing the display’s performance to work steadily for a long time in harsh environments.

If displays can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process.

The number of conductive particles in IC is at least 5, in FPC is 10.

• Customize the LCM and CTP pinout
• Customize FPC and Cable
• Customize housing for easier assembly
• We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
• Customize the Backlight, brightness and thickness could be changed
• Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
