12.1"lcd screen with 1280*800 resolution

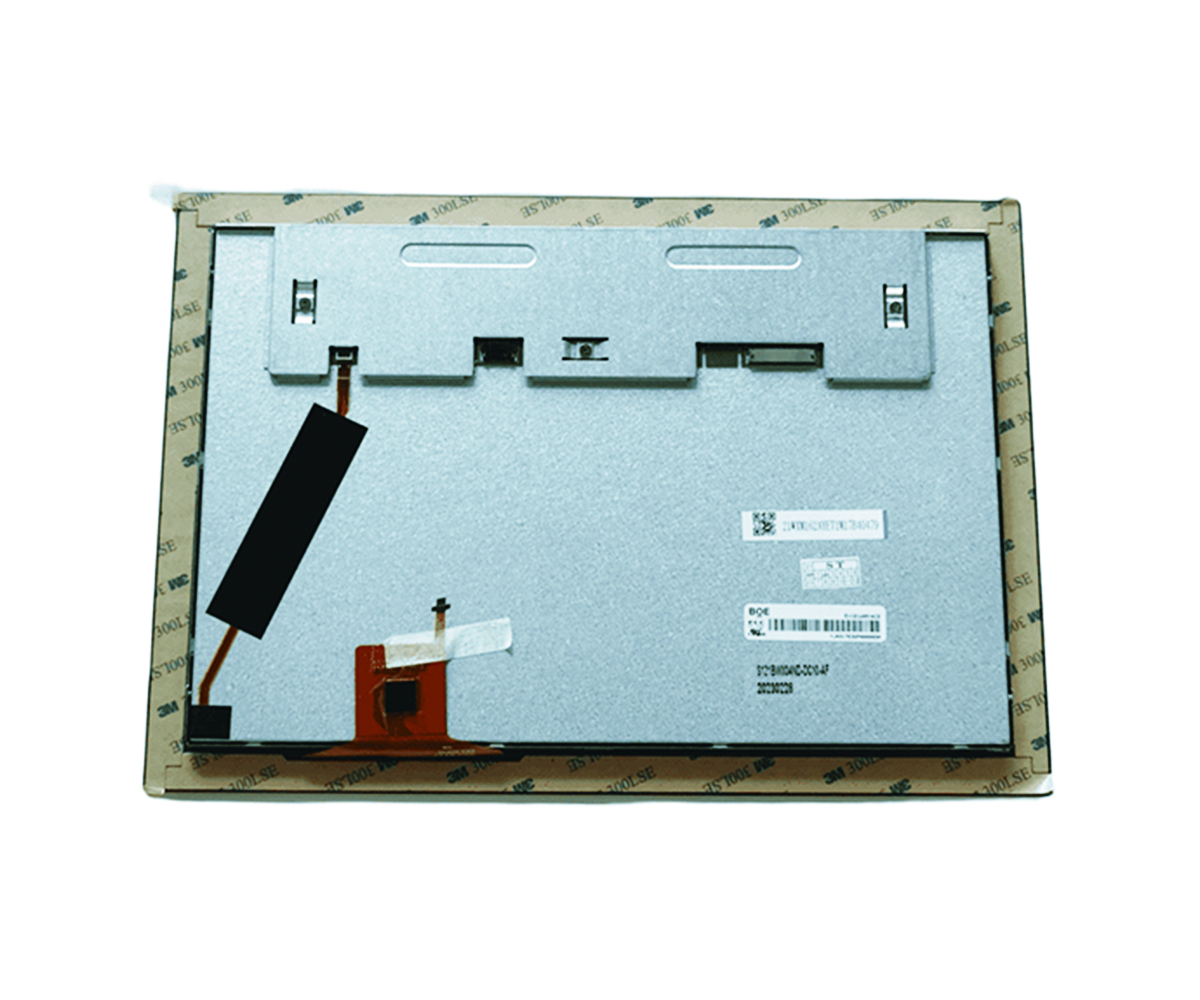

KD121BWX04ND-DC10

KD121BWX04ND-DC10

12.1inch 1280*800 IPS TFT LCD Display CTP with AF treatment

PN	KD121BWX04ND-DC10-AF
Size	12.1
Resolution	1280×800
Interface	LVDS(20Pin-1mm)
Brightness	300nits
Display Colors	16.7M
Operation Temp	-20~70°C
Storage Temp	-30~80°C
TP Driver IC	GT9110

IPS TFT LCD
IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Wide viewing angle
- Fasterresponse time and quickly switch between different colors, reducing smearing and afterimages.
AOI For Quality Guarantee

If displays can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process.

The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A

Item	Specification
LCD Size	12.1
Number of Pixels	1280×800
Interface	LVDS(20Pin-1mm)
Brightness（cd/m²）	300nits
Viewing Direction	Free
Pixel Pitch	0.204 (H) x 0.204 (V)
Display Colors	16.7M
Active Area	261.12 (H) x 163.20 (V)
Outline Dimension（mm）	306.90 (H) x 210.40 (V) x 13.0 (D
Operation Temp	-20~70°C
Storage Temp	-30~80°C
TP Drive IC	GT9110
TP Interface	I²C(6Pin-1.25mm)
Bonding Type with LCM	Perimeter Bonding
