IPS TFT LCDThe IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality Guarantee
If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize Service
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the LCM and CTP pinout
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

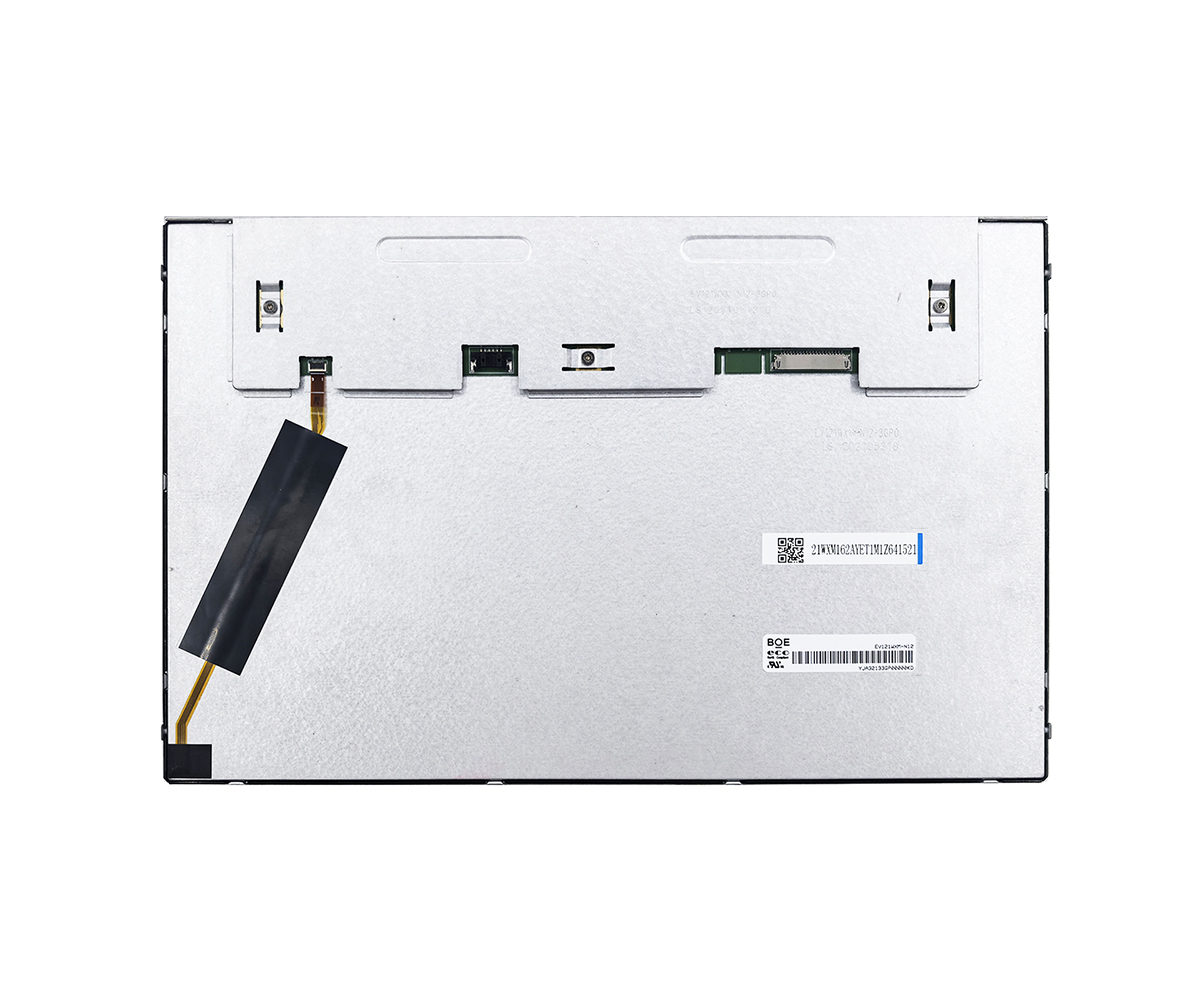

| Item | Specification |
| LCD Size | 12.1 |
| Number of Pixels | 1280*800 |
| Interface | LVDS(20Pin-1mm) |
| Brightness（cd/m²） | 500 |
| Viewing Direction | Free |
| Pixel Pitch | 0.204 (H) x 0.204 (V) |
| Display Colors | 16.7M |
| Active Area | 261.12(W)×163.2(H) mm |
| Outline Dimension（mm） | 277.7 × 180.6 × 9.2 |
| Operation Temp | -20~70 |
| Storage Temp | -30~80 |
