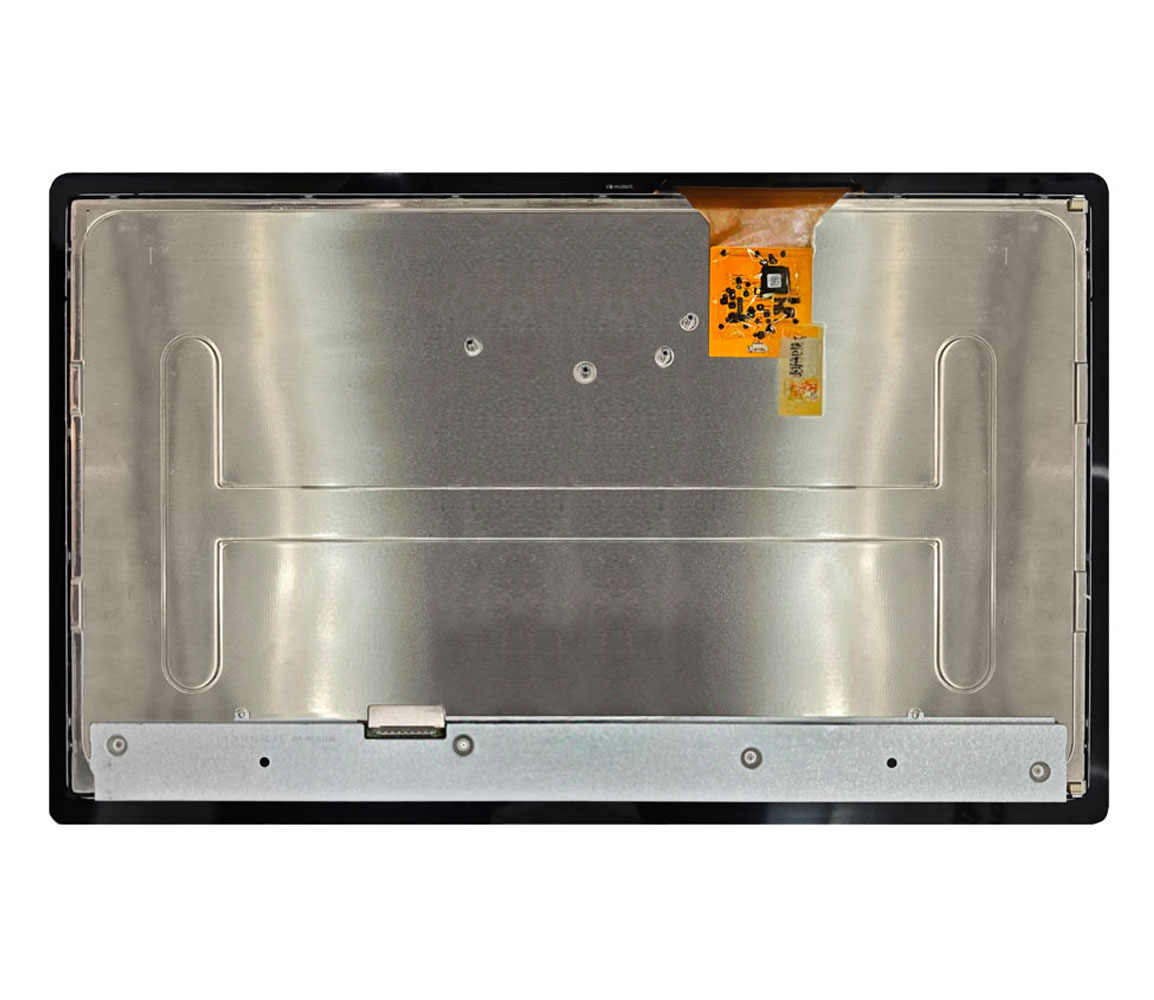

Why Choose This 27" Touch DisplayThis 27″ module is built for outdoor and industrial use.
The 1200-nits high-brightness backlight keeps content sunlight readable, while the IPS panel delivers wide viewing angles. It supports -20°C to +60°C operation for reliable performance in harsh environments.
With durable GG touch and a frame-mounted (non-bonded) design, it is made for long service life and easy maintenance—ideal for outdoor information displays, EV charging stations, and parking systems.
-
High Brightness And Optical BondingHigh-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.
Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².
- High contrast enhances image sharpness and detail richness.
- Sunlight readable
- High color reproduction
- Anti UV materials（Ceramic ink/anti UV SCA/OCA）
-
AOI Inspection for Quality Assurance
To secure stable operation and high bonding reliability, we implement 100% AOI inspection in the FOG bonding process, supported by quality systems including ISO 9001 / IATF 16949 / ISO 13485.
AOI verifies bonding alignment and conductive particle distribution. Our internal criteria are:-
IC side: ≥5 conductive particles
-
FPC side: ≥10 conductive particles
-
-
Customize ServiceWe display your ideas!
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly
-
FAQ
Q1: Is this optical bonding / full bonding?
A: No. This version uses frame mounting (non-bonded) touch structure. If you need optical bonding, we can evaluate it as a customized option.
Q2: What is the touch structure?A: GG capacitive touch (Glass+Glass) for higher durability in industrial applications.
Q3: What touch interface do you support?A: Touch can be configured for USB or I²C depending on your system.
Q4: Can you customize the cover glass and front appearance?A: Yes. We support custom cover lens shape, thickness, black mask, logo printing, and AG/AR/AF surface treatment.
Q5: Do you have stock for quick delivery?A: Yes. Standard items are in stock. Please contact us for current availability and shipping options.
| Item | Specification |
| LCD Size | 27.0 inch |
| Number of Pixels | 1920*1080 |
| Interface | LVDS |
| Brightness | 1200nits |
| Viewing Direction | Free view |
| Display Colors | 16.7M |
| Active Area （mm） | 597.89(H)×336.31(V) |
| Outline Dimension（mm） | 660.72(H) x 399.90(V) |
| TP Driver IC | ILI2322 |
| Operation Temp | -20°C~60°C |
| Storage Temp | -30°C~80°C |
