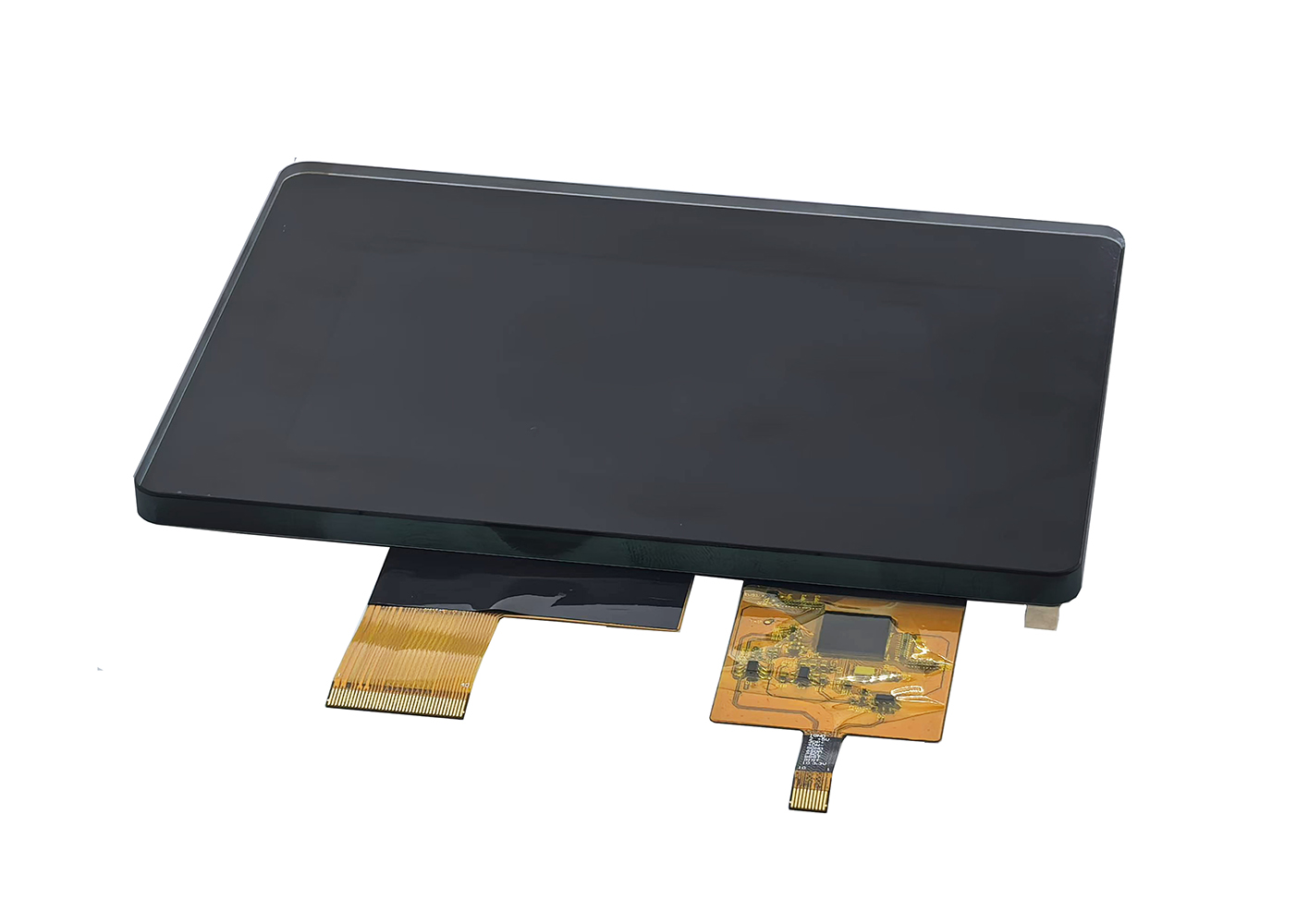

5.0 inch 800*480 ips monitor with 6mm CG and unti UV

5.0 inch ips monitor with 6mm CG and Unti UV

PN	KD050WVHD01
Size	5.0
Resolution	800 x 480
Interface	HDMI/TYPE-C
Brightness	800
TP Driver IC	ILI2511
Operation Temp	-20°C~70°C
Storage Tempe	-30°C~80°C

Extensive function for adapter board
（Realtek / Lontium / ITE / TOSHIBA solution provider）
- HDMI 1.4./Display Port 1.2
- On Screen Display menu
- External PWM adjustable
- RGB/LVDS/EDP/MIPI Support
- DDC/CI support by embedded DDC I²C-bus interface
- Fully programmable zoom ratios, Support non-linear scaling from 4:3 to 16:9 or16:9 to 4:3
Industrial-grade design
If a display monitor need work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also PCBA need a long life time

LCD with 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.

PCB 100% with immersion Gold Process to ensure strong wear resistance、excellent electrical conductivity and welding reliability
- All solid state capacitors
- Low EMC design ClassB：EN55032/EN55035
- High ESD protection (air ±8KV / contact±4KV )
- Long life time（at least 50000 hours）
High brightness and optical bonding
Industrial displays require special details to ensure that it can work stably for a long time in complex environments.
- Optical bonding prevent water and dust
- High brightness ensure outdoor application
- Wide operating temperature（-20~70℃）
- Anti UV materials（Ceramic ink/anti UV SCA/OCA）
Customize Service
We display your ideas!
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the Backlight, brightness and thickness could be change
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

Item	Specification
LCD Size	5.0
Number of Pixels	800 x 480
Interface	HDMI
Brightness（cd/m²）	800
Viewing Direction	Free
Pixel Pitch	0.07875 (H) x 0.07875 (V)
Display Colors	16.7M
Active Area	108.00 (H) x 64.80 (V)
Outline Dimension（mm）	147.00 (H) x 104.00 (V) x 13.36 (D
TP Driver IC	ILI2511
Operation Temp	-20°C~70°C
Storage Temp	-30°C~80°C
