8.0 inch MIPI Interface 800*1280 with CTP Module

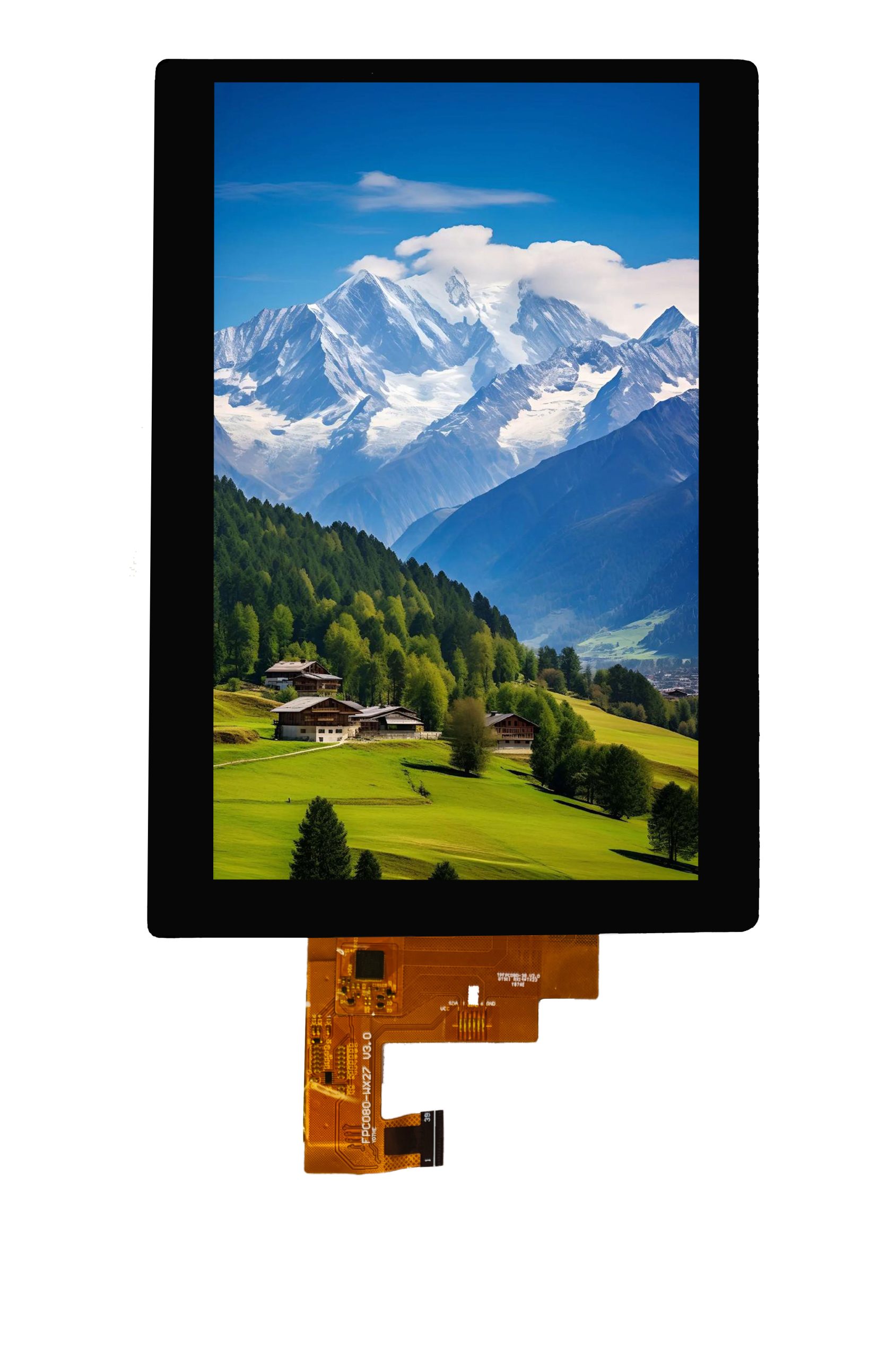

KD080BWX27NP-FC39正面2

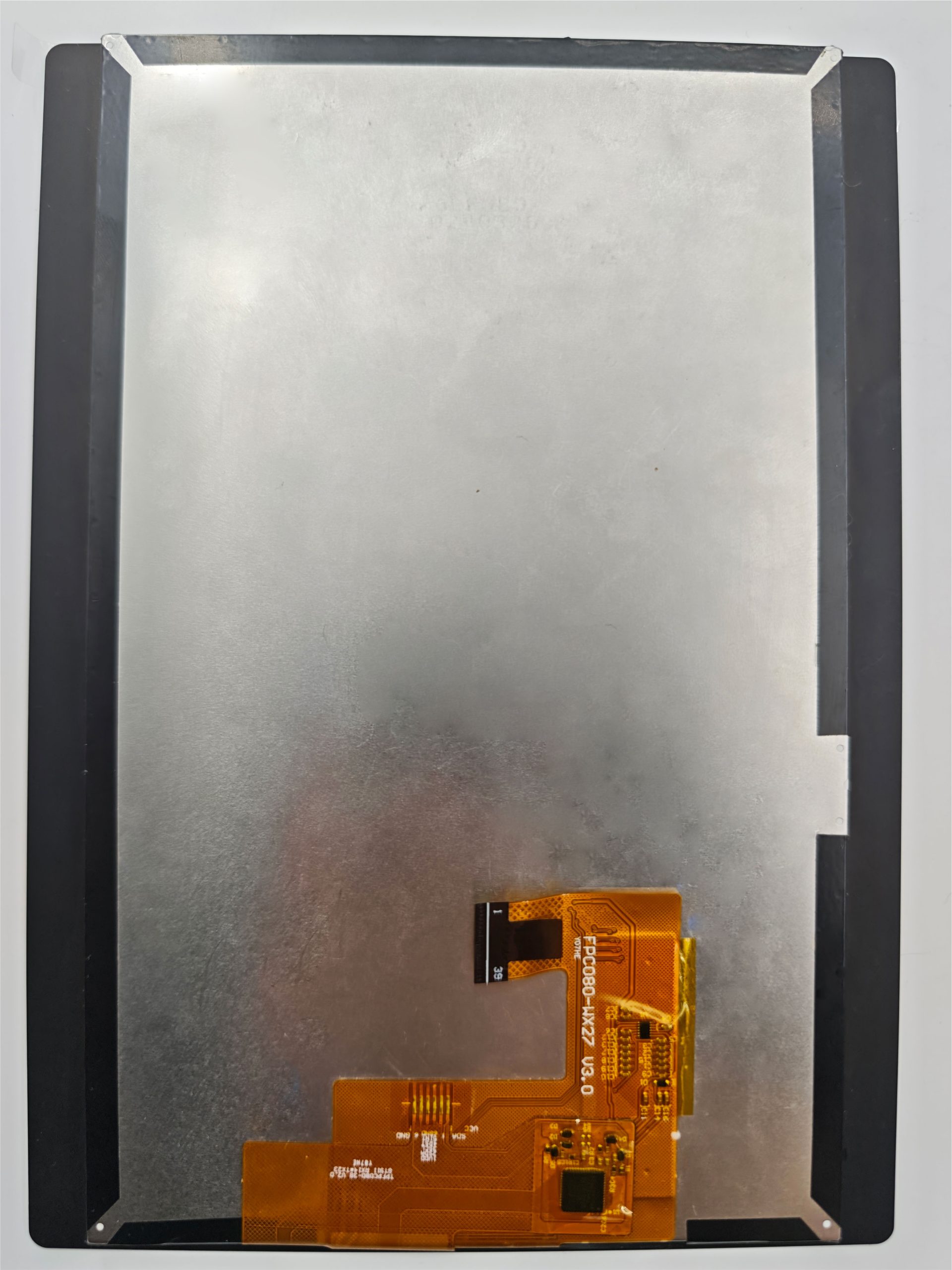

KD080BWX27NP-FC39背面

KD080BWX27NP-FC39正面2

KD080BWX27NP-FC39背面

8.0 inch MIPI Interface 800*1280 with CTP Module

PN	KD080BWX27NP-FC41
Size	8.0 inch
Resolution	800*1280
Video Interface	MIPI
Brightness	330nits
Viewing Direction	Free
TP Interface	I²C
Operation Temp	-20°C~60°C
Storage Temp	-30°C~70°C

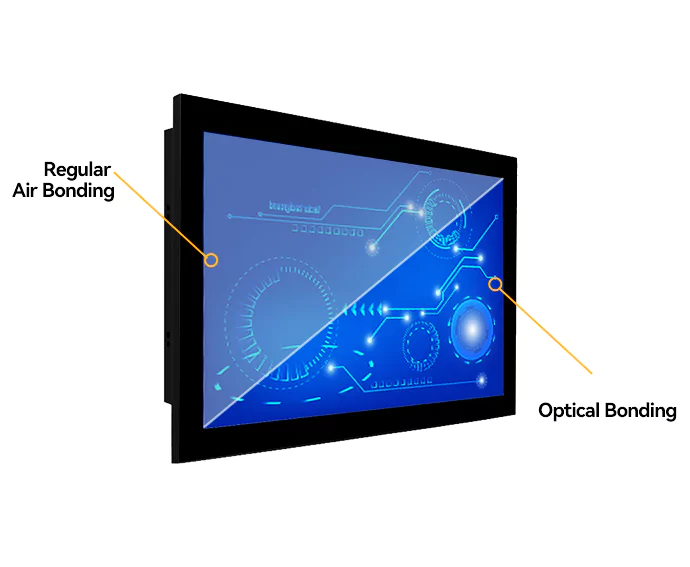

Optical Bonding
Optical bonding is a method that involves bonding TFT LCD and CTP using optical materials. This technique uses a transparent adhesive, such as Optically Clear Adhesive (OCA) or Optical Clear Resin (OCR) liquid optical adhesive, to bond the layers together, eliminating air gaps. This process improves the performance and readability of the display:
- Eliminating air gaps to reduce light reflection and scattering
- Prevent dust and moisture from entering the display
- Enhancing the display’s performance to work steadily for a long time in harsh environments.
AOI For Quality Guarantee

If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
We display your ideas!
- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A

Item	Specification
LCD Size	8.0 inch
Resolution	800*1280
Video Interface	MIPI
Brightness（cd/m²）	330nits
Viewing Direction	Free
Active Area （mm）	107.64 (H) x 172.22 (V)
Pixel Pitch （mm）	0.1345 (H) x 0.1345 (V)
Display Colors	16.7M
TP Interface	I2C
Outline Dimension（mm）	135.00 (H) x 188.00 (V) x 4.61 (D)
Operation Temp	-20°C~60°C
Storage Temp	-30°C~70°C
