IPS panels
IPS panels

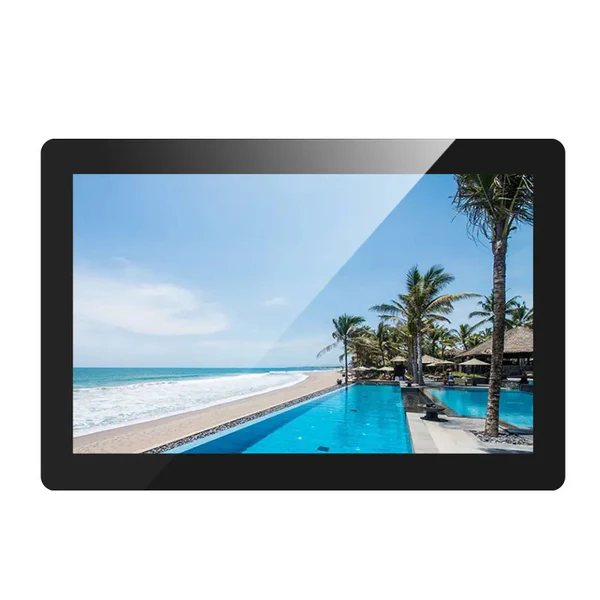

8.0 Inch TFT-LCD Module with CTP
PN KD080QXG30EA-DC39
Size 8.0 inch
Resolution 1024 x 768
Interface LVDS(40Pin-0.5mm)
Brightness 800
Viewing Direction Free
TP Interface USB
Operation Temp -10°C~50°C
Storage Temp -20°C~60°C
  • c37d5ec255b7718d1b15d7ac7993fbd
    High Brightness

    The high-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.

    Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m²

    • High contrast enhances image sharpness and detail richness
    • SunlightVisible
    • High color reproduction
  • copy_副本
    IPS TFT LCD

    The IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.

    • Excellent color reproduction
    • Good energy efficiency
    • High durability, able to withstand a certain degree of impact and pressure
    • The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
  • 6AOI
    AOI For Quality Guarantee

    If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

    We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.

  • 3d01871caa1706cdb47b5089840d731_副本
    Customize Service
    • We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
    • Customize the Backlight, brightness and thickness could be change
    • Customize the LCM and CTP pinout
    • Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
    • Customize FPC and Cable
    • Customize housing for easier assembly
Item Specification
LCD Size 8.0 inch
Resolution 1024 x 768
Interface LVDS(40Pin-0.5mm)
Brightness(cd/m²) 800
Viewing Direction Free
Active Area 162.00(H) x 121.50 (V)
Pixel Pitch 0.1582 (H) x 0.1582 (V)
Display Colors 16.7M
TP Interface USB
Outline Dimension(mm) 183 (H) x 141 (V) x 8.27 (D)
Operation Temp -10°C~50°C
Storage Temp -20°C~60°C
