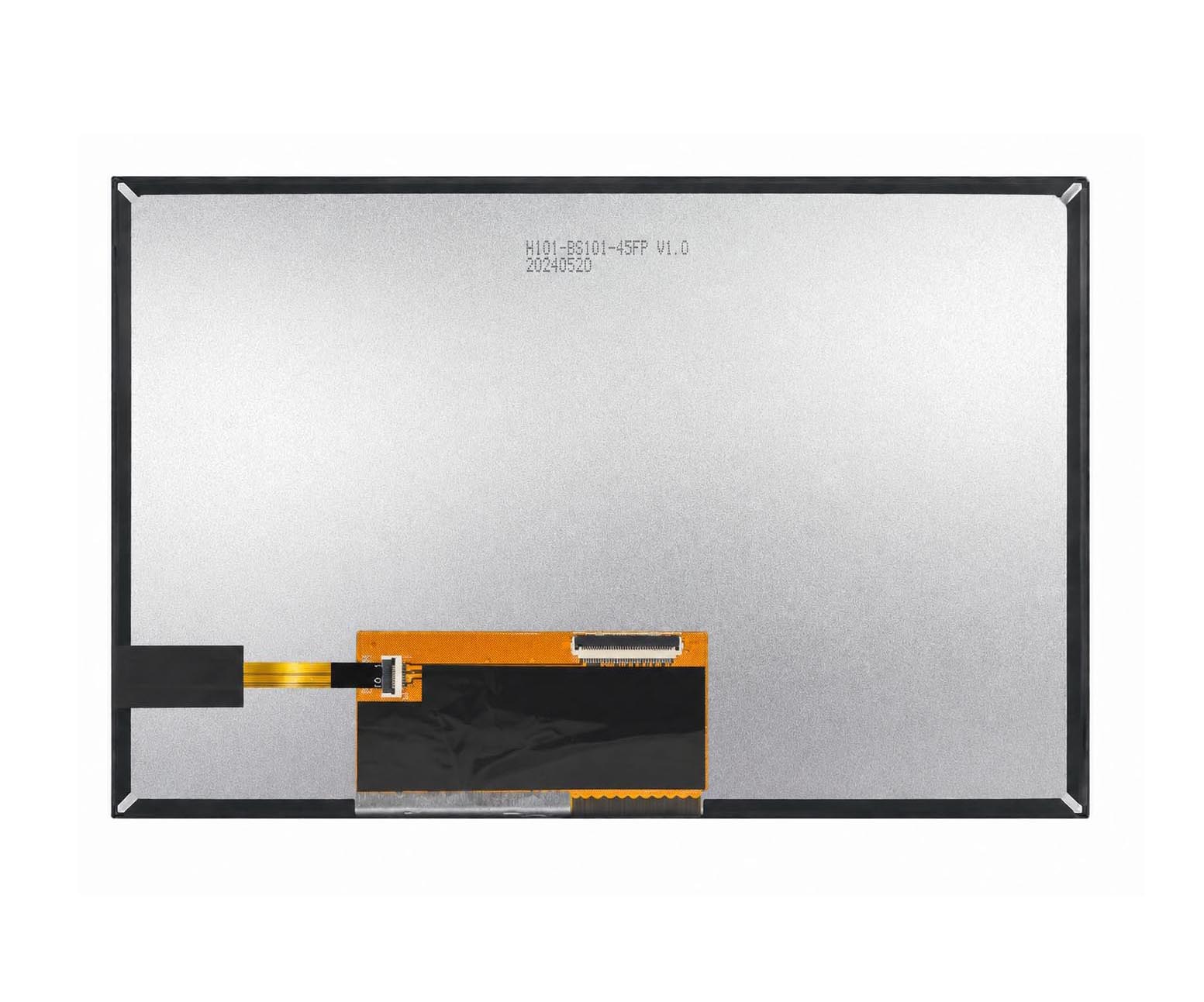

Product OverviewThe 10.1″ TFT LCD module with capacitive touch is designed for industrial and outdoor applications, combining high visual performance with reliable manufacturing standards. Perfect for outdoor cameras, charging stations, advertising machines, and other demanding environments.
- High Brightness & IPS Panel: Wide viewing angles, excellent color reproduction.
- Long lifetime：50,000-hour lifetime for long-term stable operation
- Customizable Solutions: Tailored sizes, brightness, touch, and interface options.
-

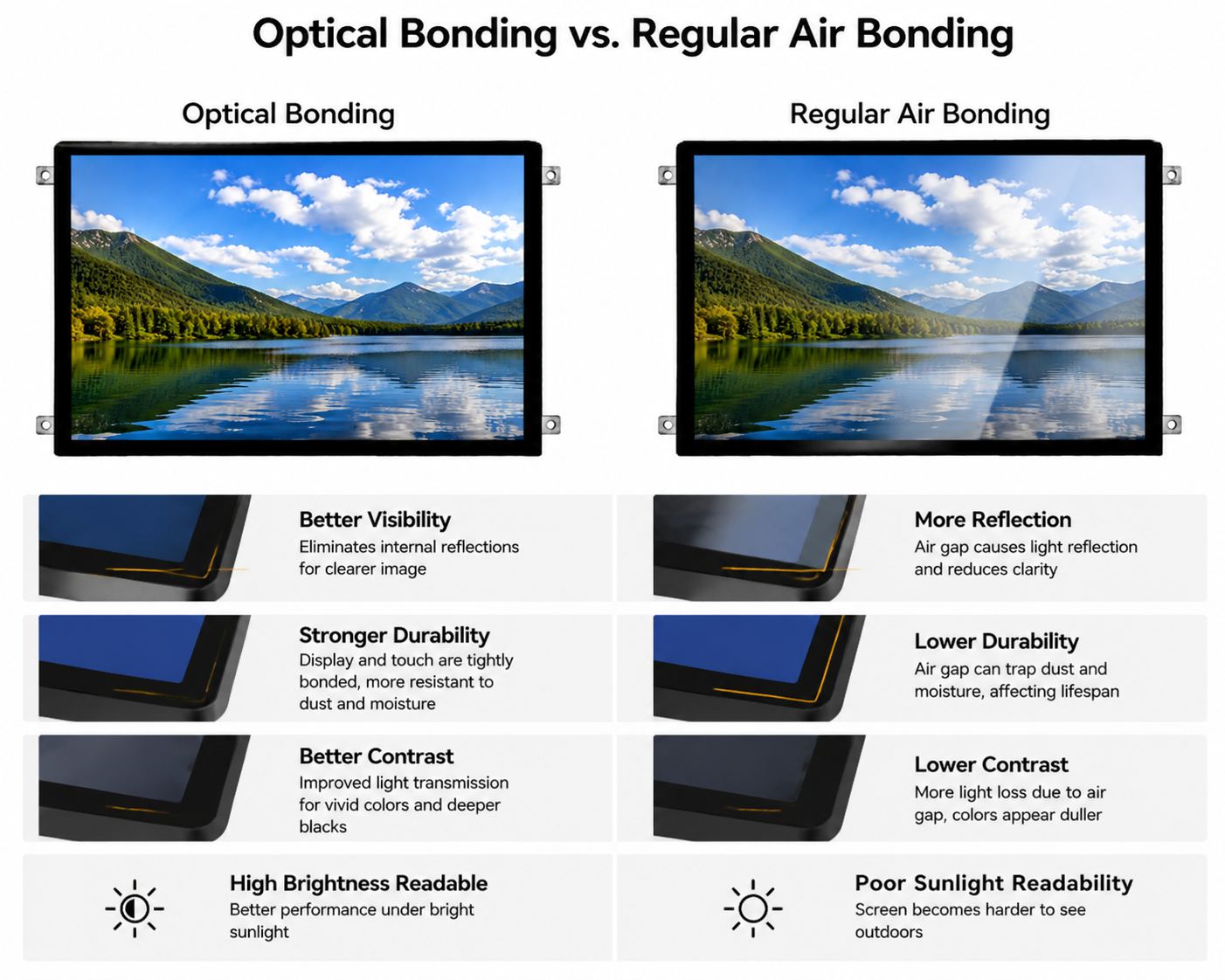

Development & SupportOptical bonding is a method that involves bonding TFT LCD and CTP using optical materials. This technique uses a transparent adhesive, such as Optically Clear Adhesive (OCA) or Optical Clear Resin (OCR) liquid optical adhesive, to bond the layers together, eliminating air gaps. This process improves the performance and readability of the display:
- Initialization Code Provided ：Quick start for your system.
- Driveri Support ：Linux driver and interface support included.
- Technical supprot：2D and 3D drawing available for easier installation
- Flexible Customization – Interface, brightness, touch, and size adaptations available on request.
-
Customize Service- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
-
FAQ
Q1: Can this display be used outdoors?
A: Absolutely. With high brightness, full lamination (OCA), and robust industrial-grade construction, it is ideal for outdoor cameras, charging stations, and advertising kiosks.
Q2: Is technical support available?
A: We offer comprehensive technical support, including 2D and 3D drawings, detailed datasheets, and Linux-based guidance for both the LCD and capacitive touch panel (CTP). Additionally, we provide an adapter board (AD board) for rapid screen activation, allowing you to quickly test prototypes and samples.
Q3: Can I customize the display?
A: Yes, we offer customization options including interface, brightness, touch configuration, and size, allowing you to tailor the module to your project requirements.
Q4: What kind of quality standards are followed?
A: All displays are AOI-inspected and manufactured in Class 1000 cleanrooms, following ISO 13485 & IATF 16949 standards to ensure high-quality, defect-free products.
| Item | Specification |
| LCD Size | 10.1 |
| Number of Pixels | 1280 (H) RGB x 720 (V) |
| Interface | MIPI- DSI |
| Brightness（cd/m²） | 1500nits |
| Bridge Drive IC | EK79202 |
| Viewing Direction | 85/85/85/85(Typ) |
| Pixel Pitch | 0.1755 (H) x 0.1755 (V) |
| Display Colors | 16.7M |
| Active Area | 224.64 (H) x 126.36 (V) |
| Outline Dimension（mm） | 260.00 (H) x 160.00 (V) x 8.15 (D) |
| Operation Temp | -20~70°C |
| Storage Temp | -30~80°C |
