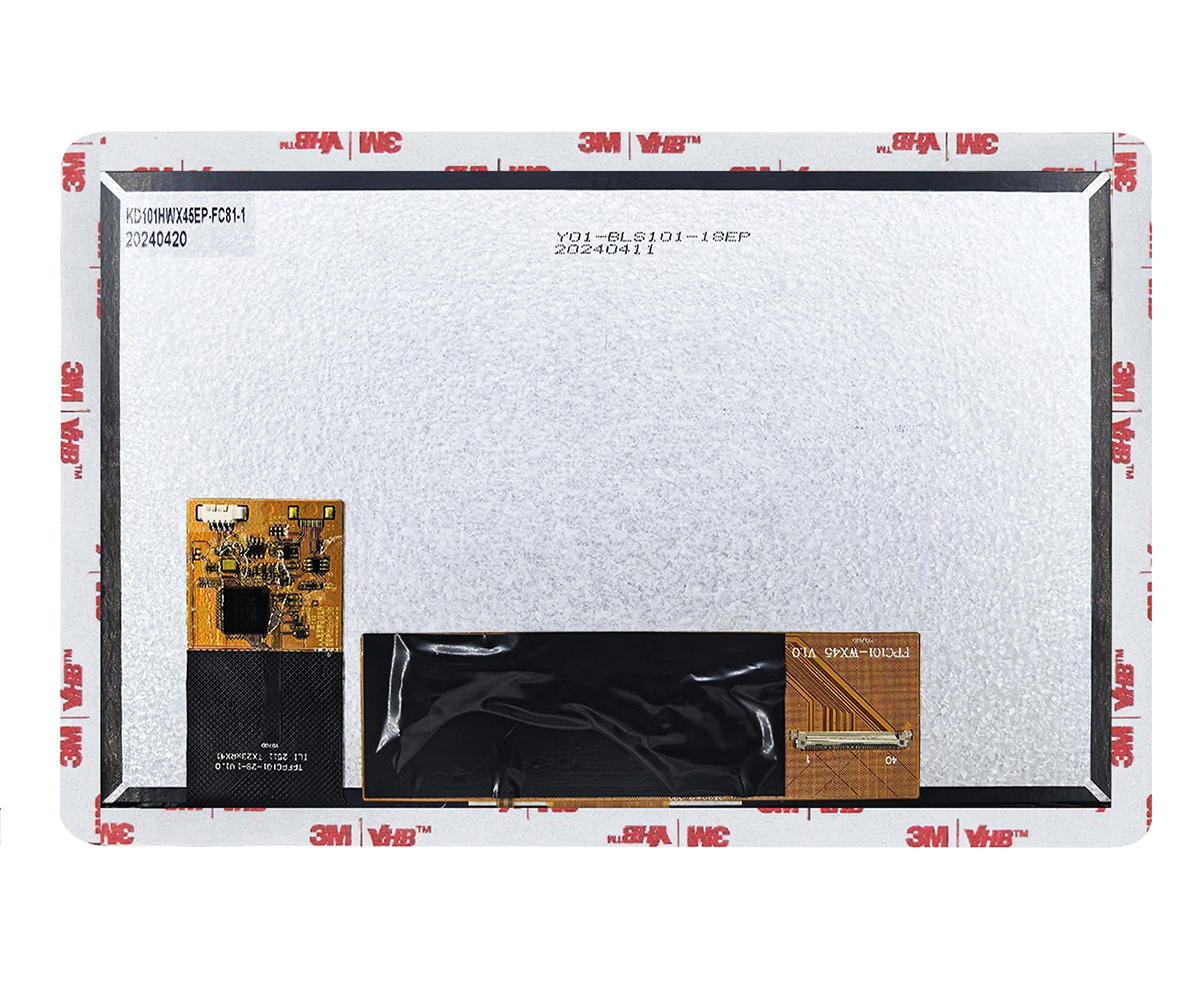

KD101HWX45EP-FC81-背面

KD101HWX45EP-FC81-背面

10.1 1280*800 1000nits TFT LCD with USB Touch Panel

PN	KD101HWX45EP-FC81
Size	10.1
Resolution	1280*800
Interface	LVDS(40Pin-0.5mm)
Brightness	850nits
CTP Driver IC	ILI2511
CTP Interface	USB/I2C
Operation Temp	-30~80℃
Storage Temp	-30~80℃

High Brightness
High-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.

Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².
- High contrast enhances image sharpness and detail richness.
- Sunlight Visible
- High color reproduction
IPS TFT LCD
IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Wide viewing angle
- Fasterresponse time and quickly switch between different colors, reducing smearing and afterimages.
AOI For Quality Guarantee

If displays can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process.

The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A

Item	Specification
LCD Size	10.1
Number of Pixels	1280*800
Interface	LVDS(40Pin-0.5mm)
Brightness（cd/m²）	850nits
Viewing Direction	Free
Pixel Pitch	0.1695(H)×0.1695(V)
Display Colors	16.7M
Active Area	216.96(H)x 135.60(V)
Outline Dimension（mm）	246.96 (H) x 165.60 (V) x 6.38 (D)
Operation Temp	-30~80°C
Storage Temp	-30~80°C
Driver IC	ILI2511
TP Interface	USB(4Pin-1.25mm)
Bonding Type with LCM	OCA Optical Bonding
