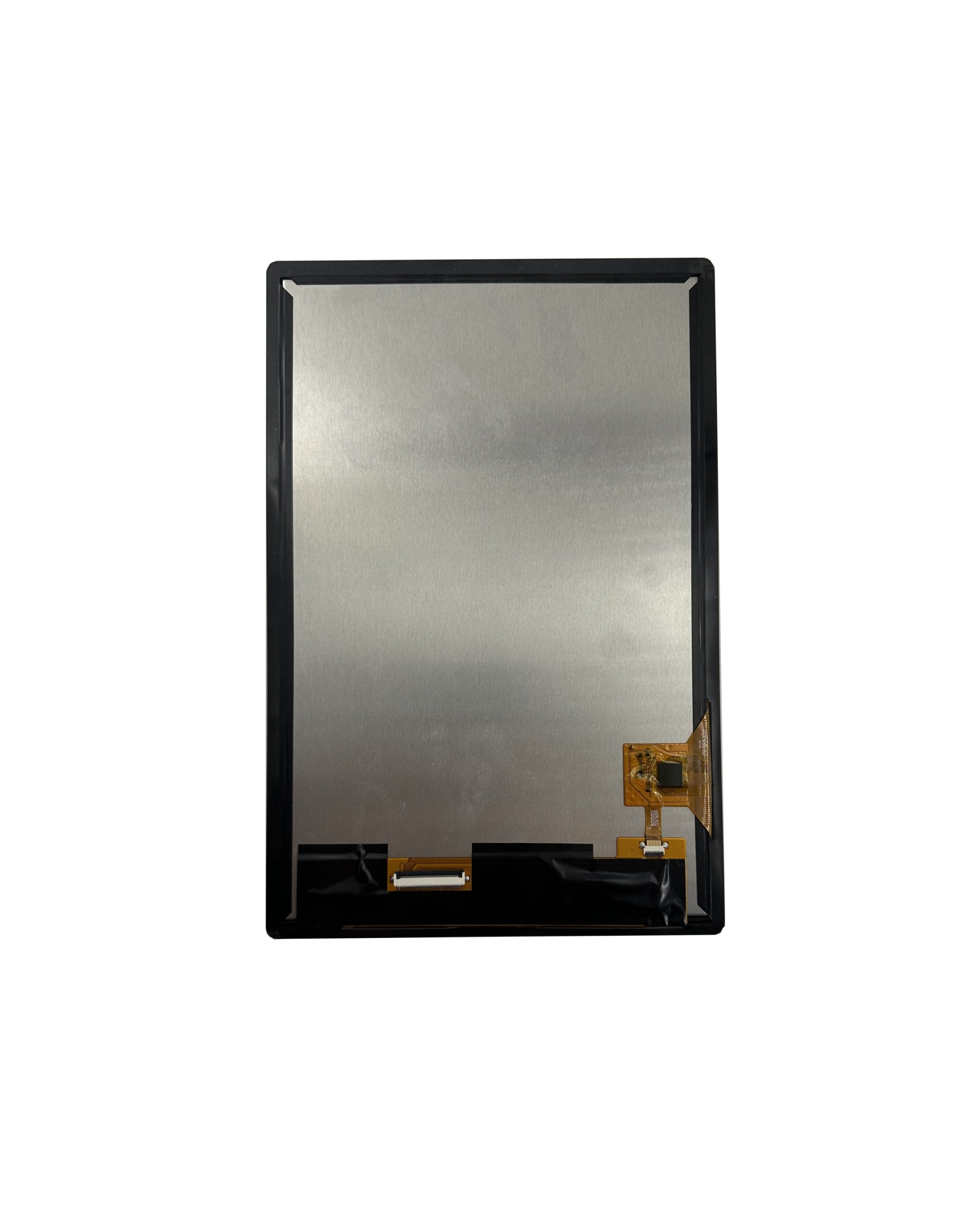

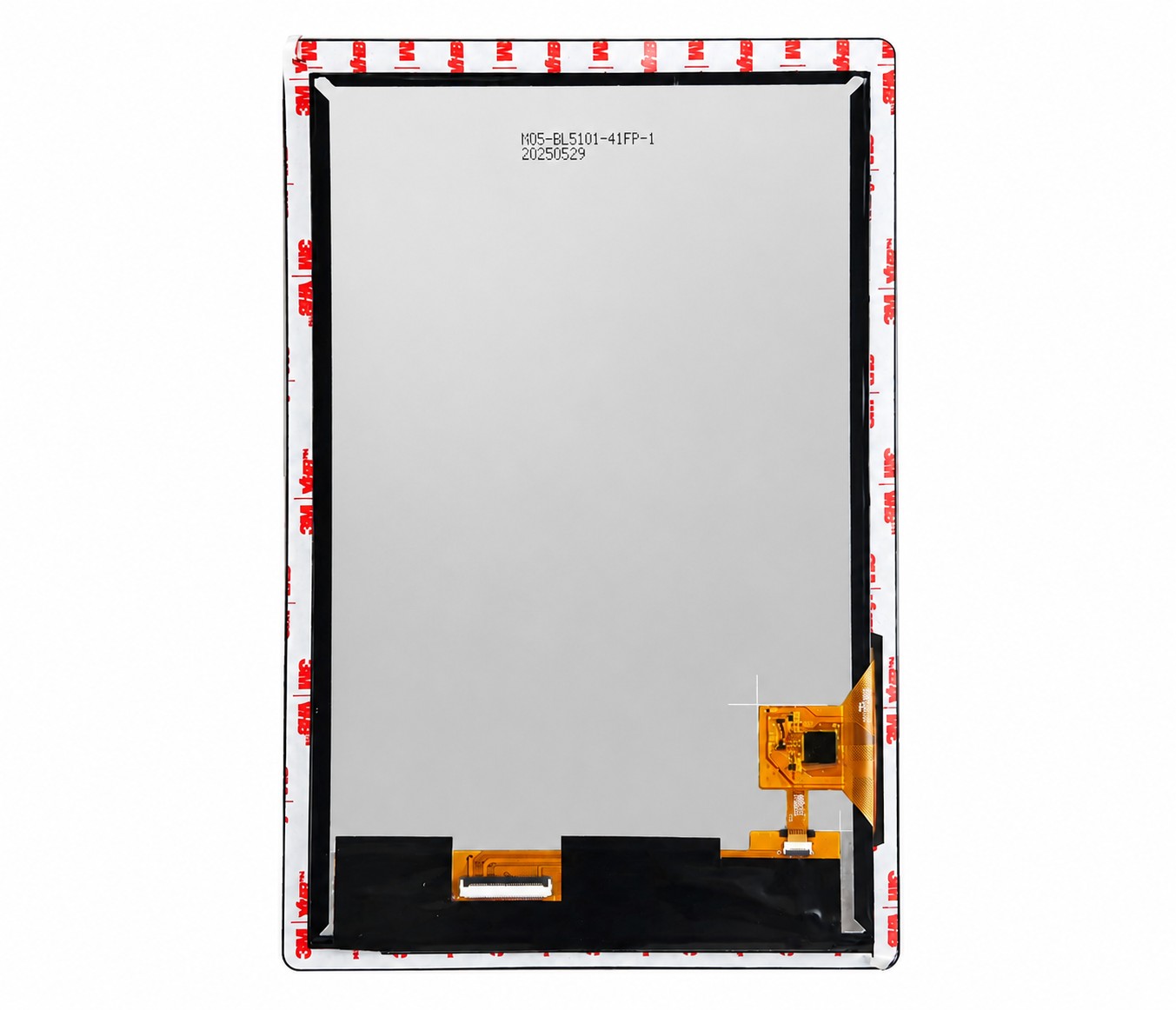

10.1” Sunlight Readable IPS display 1200*1920 with Optcail Bonding CTP

10.1” Sunlight Readable IPS display 1200*1920 with Optcail Bonding CTP

PN	KD101QWU88FP-FC85
Size	10.1
Resolution	1200 x 1920
Interface	MIPI
Brightness	1500nits
Operation Temp	-10~60℃
Storage Temp	-20~70℃

Datasheet HX8279

Chat now

High Brightness
High-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.

Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².
- High contrast enhances image sharpness and detail richness
- Sunlight Visible
- High color reproduction
IPS TFT LCD
The IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
AOI For Quality Guarantee

If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
Customize Service
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the LCM and CTP pinout
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly
FAQ

Q1: Can this display be used outdoors?

A: Absolutely. With high brightness, full lamination (OCA), and robust industrial-grade construction, it is ideal for outdoor cameras, charging stations, and advertising kiosks.

Q2: Is technical support available?

A: We offer comprehensive technical support, including 2D and 3D drawings, detailed datasheets, and Linux-based guidance for both the LCD and capacitive touch panel (CTP). Additionally, we provide an adapter board (AD board) for rapid screen activation, allowing you to quickly test prototypes and samples.

Q3: Can I customize the display?

A: Yes, we offer customization options including interface, brightness, touch configuration, and size, allowing you to tailor the module to your project requirements.

Q4: What kind of quality standards are followed?

A: All displays are AOI-inspected and manufactured in Class 1000 cleanrooms, following ISO 13485 & IATF 16949 standards to ensure high-quality, defect-free products.

Item	Specification
LCD Size	7.0
Number of Pixels	1200 x 1920
Interface	MIPI
Brightness（cd/m²）	1500nits
Viewing Direction	Free
Pixel Pitch	0.1505 (H) x 0.1432 (V)
Display Colors	16.7M
Active Area	154.20 (H) x 85.92 (V)
Outline Dimension（mm）	175.80 (H) x 109.24 (V) x 18.93 (D)
Operation Temp	-10~60℃
Storage Temp	-20~70℃
Driver IC	GT928
TP Interface	USB
