S101

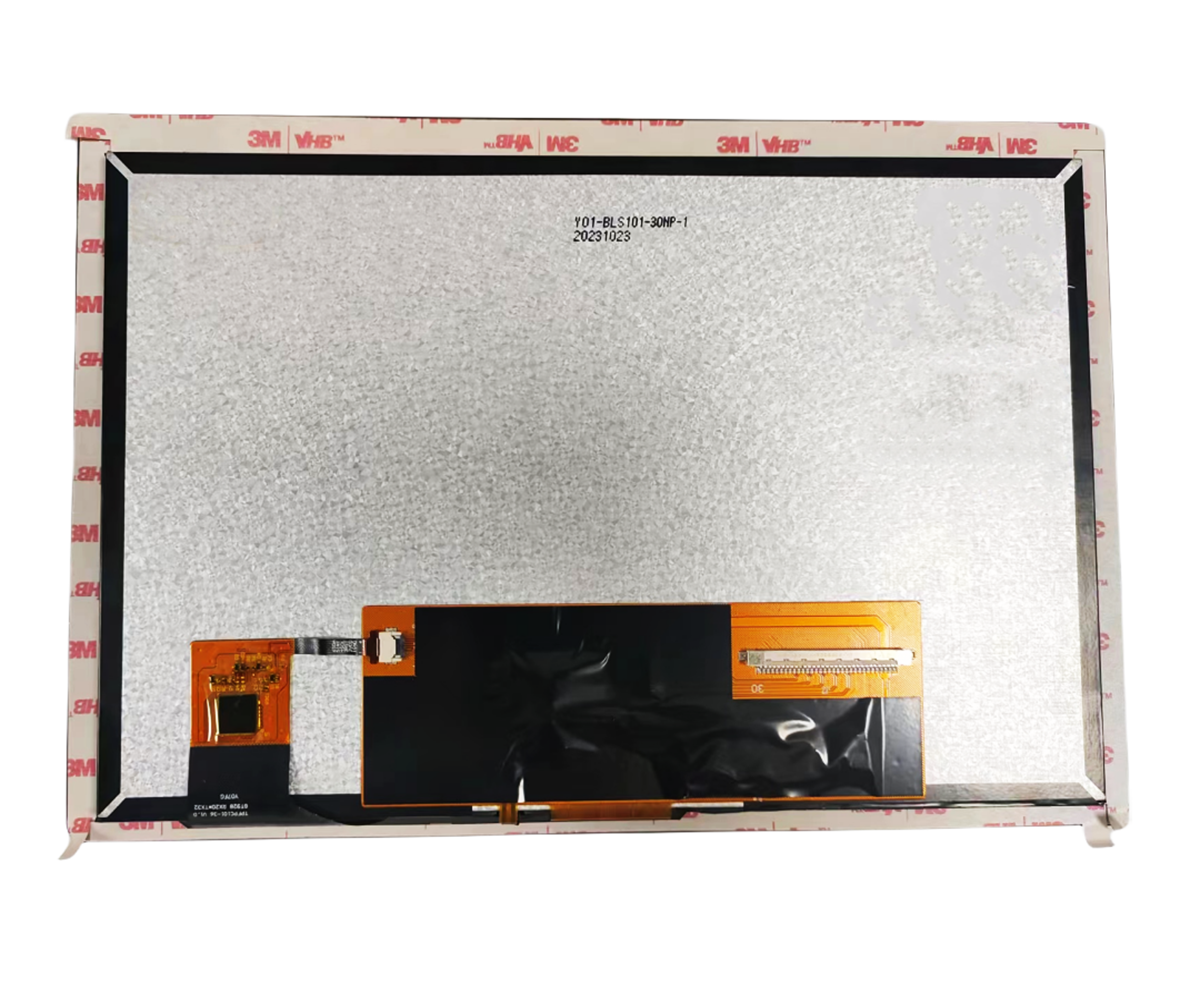

KD101HWX80NP-FC69 (2)
S101
KD101HWX80NP-FC69 (2)
10.1inch 1280*800 One Connect intergrated LVDS-I2C-Backlight Driver
PN KD101HWX80NP-FC69
Size 10.1
Resolution 1280*800
Interface LVDS(30Pin-1mm)
Brightness 350
Driver IC GT928
Operation Temp -20~70
Storage Temp -30~80
  • copy_副本
    IPS TFT LCD

    IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.

    • Excellent color reproduction
    • Wide viewing angle
    • Fasterresponse time and quickly switch between different colors, reducing smearing and afterimages.
  • bonding
    Optical Bonding

    Optical bonding is a method that involves bonding TFT LCD and CTP using optical materials. This technique uses a transparent adhesive, such as Optically Clear Adhesive (OCA) or Optical Clear Resin (OCR) liquid optical adhesive, to bond the layers together, eliminating air gaps. This process improves the performance and readability of the display:

    • Eliminating air gaps to reduce light reflection and scattering
    • Prevent dust and moisture from entering the display
    • Improve touch screen accuracy and sensitivity, reducingfalse touches and delays
    • Enhancing the display’s performance to work steadily for a long time in harsh environments.
  • 6AOI
    AOI For Quality Guarantee

    If displays can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.



    We 100% made AOI during the FOG manufacturing process.

    The number of conductive particles in IC is at least 5, in FPC is 10.

  • 透明
    Customize Service
    • Customize the LCM and CTP pinout
    • Customize FPC and Cable
    • Customize housing for easier assembly
    • We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
    • Customize the Backlight, brightness and thickness could be changed
    • Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
Item Specification
LCD Size 10.1
Number of Pixels 1280*800
Interface LVDS(30Pin-1mm)
LCD Driver IC EK79202B
Brightness(cd/m²) 350
Viewing Direction Free
Pixel Pitch 0.1695×0.1695
Display Colors 16.7M
Active Area 216.96x 135.60
Outline Dimension(mm) 244.60x 167.60x 6.33
Operation Temp -20~70
Storage Temp -30~80
Bonding Type with LCM OCA Optical Bonding
Driver IC GT928
Interface I²C
