IPS TFT LCDIPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
- Excellent color reproduction
- Wide viewing angle
- Fasterresponse time and quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality GuaranteeIf displays can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process.
The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize Service- Customize the LCM and CTP pinout
- Customize FPC and Cable
- Customize housing for easier assembly
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be changed
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A

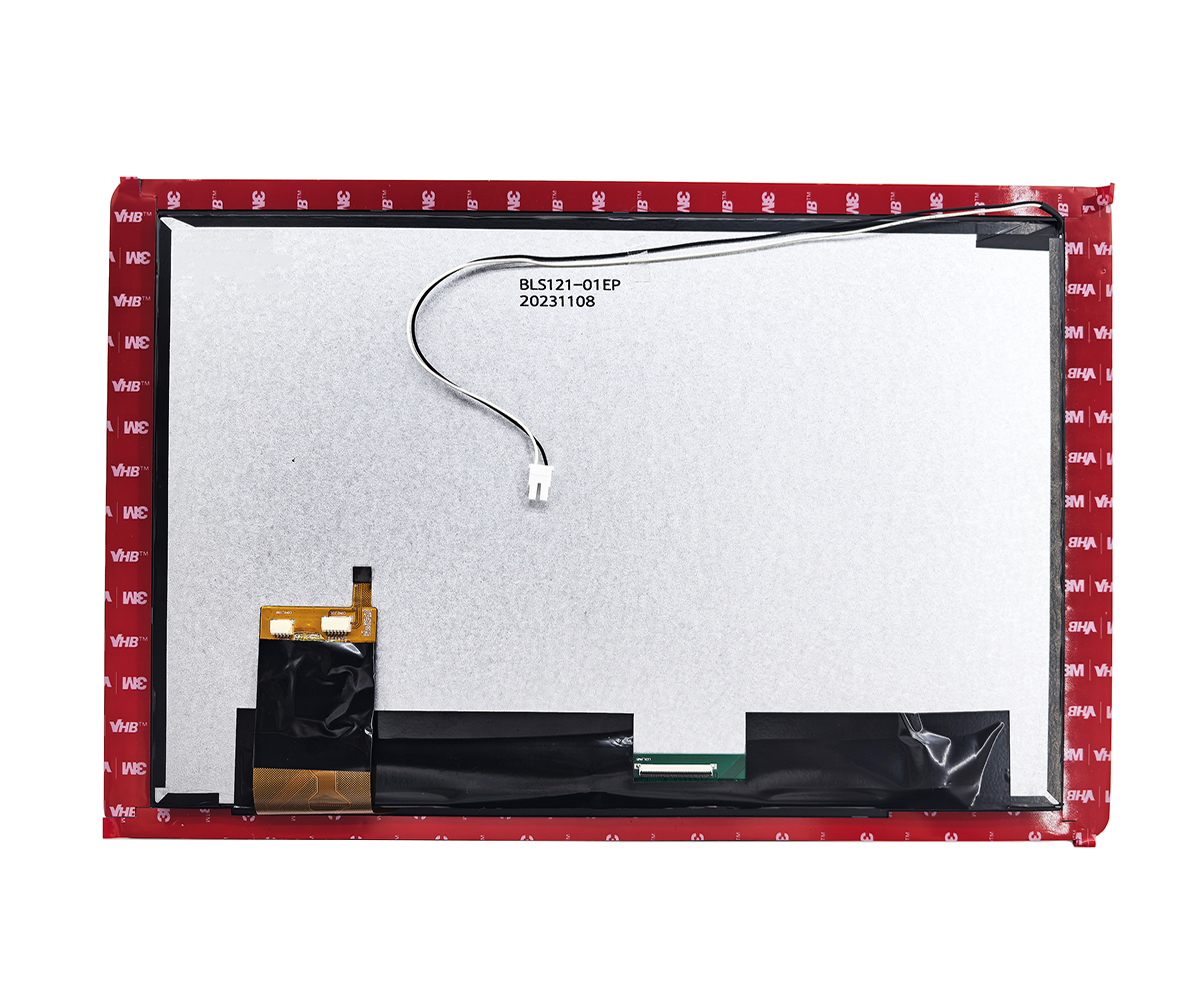

| Item | Specification |
| LCD Size | 12.1 |
| Number of Pixels | 1280×800 |
| Interface | HDMI 1.4a / Type-C 3.1 |
| Brightness（cd/m²） | 800nits |
| Viewing Direction | Free |
| Pixel Pitch | 0.2034 (H) x 0.2034 (V) |
| Display Colors | 16.7M |
| Active Area | 260.35 (H) x 162.72 (V) |
| Outline Dimension（mm） | 312.12 (H) x 204.20 (V) x 20.51 (D) |
| Operation Temp | -20~70°C |
| Storage Temp | -30~80°C |
| TP Drive IC | ILI2511 |
| TP Interface | USB(Type-C) |
| Bonding Type with LCM | OCA Optical Bonding |
