Product Category Description

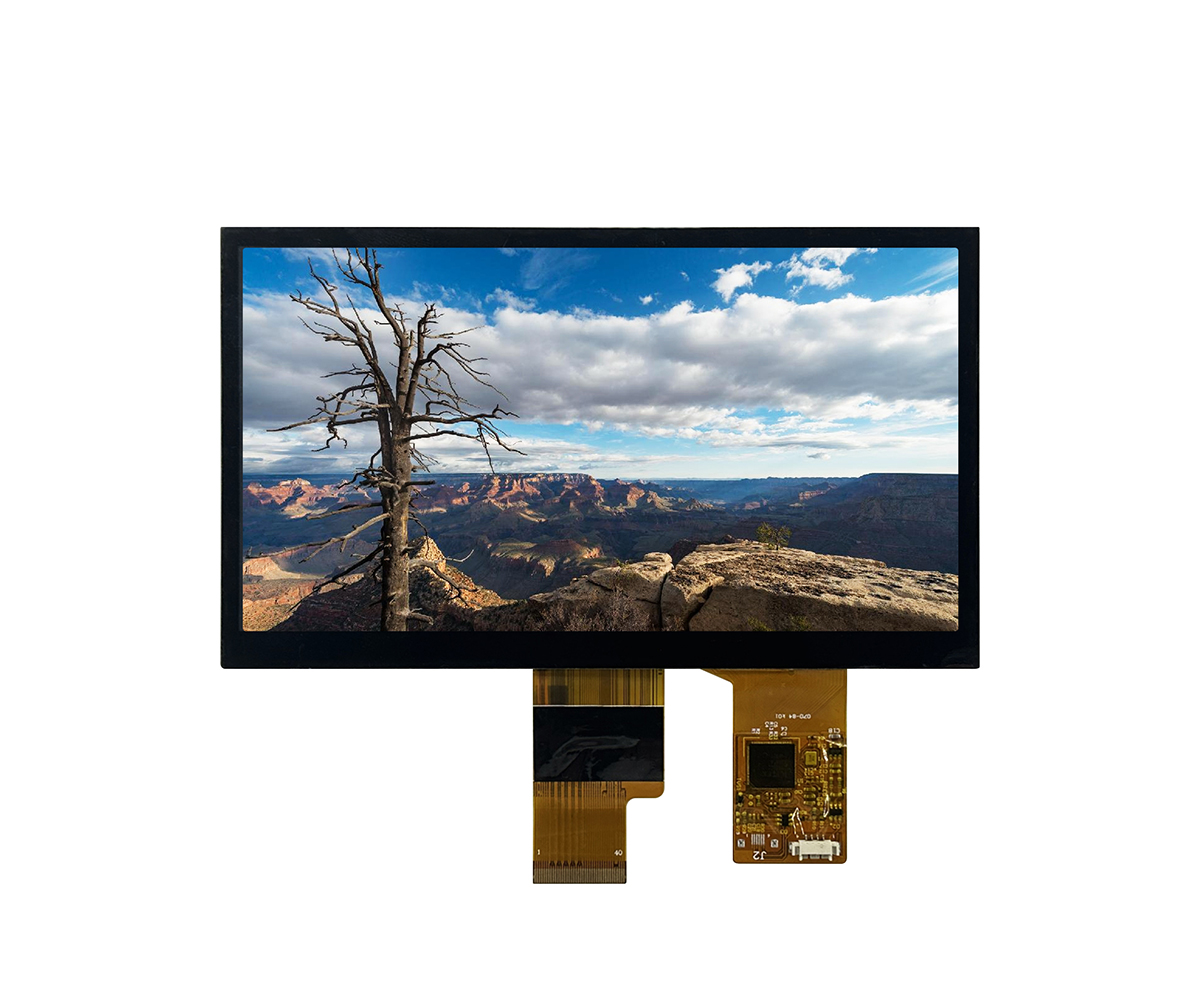

TFT LCD modules integrated with capacitive or resistive touch, custom cover glass, bonding, and I2C/USB touch options.
-
PN KD101ZWX89FP-FC86 Size 10.1 Resolution 1280 x 720 Interface LVDS(40Pin-0.5mm) Brightness 1400nits CTP Driver IC ILI2511 TP Interface USB/I2C Operation Temp -30~85°C PN KD101ZWX89FP-FC86 Size 10.1 Resolution 1280 x 720 Interface LVDS(40Pin-0.5mm) Brightness 1400nits CTP Driver IC ILI2511 TP Interface USB/I2C Operation Temp -30~85°C PN KD101ZWX89FP-FC86 Size 10.1 Resolution 1280 x 720 Interface LVDS(40Pin-0.5mm) Brightness 1400nits CTP Driver IC ILI2511 TP Interface USB/I2C Operation Temp -30~85°C -
PN KD101HWX45EP-FC81 Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 850nits CTP Driver IC ILI2511 CTP Interface USB/I2C Operation Temp -30~80℃ Storage Temp -30~80℃ PN KD101HWX45EP-FC81 Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 850nits CTP Driver IC ILI2511 CTP Interface USB/I2C Operation Temp -30~80℃ Storage Temp -30~80℃ PN KD101HWX45EP-FC81 Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) Brightness 850nits CTP Driver IC ILI2511 CTP Interface USB/I2C Operation Temp -30~80℃ Storage Temp -30~80℃ -
PN KD101HWX80NP-FC69 Size 10.1 Resolution 1280*800 Interface LVDS(30Pin-1mm) Brightness 350nits Driver IC GT928 Operation Temp -20~70°C Storage Temp -30~80°C PN KD101HWX80NP-FC69 Size 10.1 Resolution 1280*800 Interface LVDS(30Pin-1mm) Brightness 350nits Driver IC GT928 Operation Temp -20~70°C Storage Temp -30~80°C PN KD101HWX80NP-FC69 Size 10.1 Resolution 1280*800 Interface LVDS(30Pin-1mm) Brightness 350nits Driver IC GT928 Operation Temp -20~70°C Storage Temp -30~80°C -
PN KD101ZWX89FP-FC86-1 Size 10.1 Resolution 1280 x 720 Interface LVDS(40Pin-0.5mm) Brightness 900nits Operation Temp -30~85°C Storage Temp -30~85°C PN KD101ZWX89FP-FC86-1 Size 10.1 Resolution 1280 x 720 Interface LVDS(40Pin-0.5mm) Brightness 900nits Operation Temp -30~85°C Storage Temp -30~85°C PN KD101ZWX89FP-FC86-1 Size 10.1 Resolution 1280 x 720 Interface LVDS(40Pin-0.5mm) Brightness 900nits Operation Temp -30~85°C Storage Temp -30~85°C -
PN KD101BWX60NP-FC65-AG Size 10.1 Resolution 1280 x 800 Interface LVDS(40Pin-0.5mm) Brightness 340nits Driver IC ILI2511 Operation Temp -20~60 Storage Temp -30~70 PN KD101BWX60NP-FC65-AG Size 10.1 Resolution 1280 x 800 Interface LVDS(40Pin-0.5mm) Brightness 340nits Driver IC ILI2511 Operation Temp -20~60 Storage Temp -30~70 PN KD101BWX60NP-FC65-AG Size 10.1 Resolution 1280 x 800 Interface LVDS(40Pin-0.5mm) Brightness 340nits Driver IC ILI2511 Operation Temp -20~60 Storage Temp -30~70 -
PN KD101HWX34ED-DC29 Size 10.1 Resolution 1280×800 Interface LVDS(40Pin-0.5mm) Brightness 800nits Operation Temp -20~70°C Storage Temp -30~80°C Drive IC ILI2511 PN KD101HWX34ED-DC29 Size 10.1 Resolution 1280×800 Interface LVDS(40Pin-0.5mm) Brightness 800nits Operation Temp -20~70°C Storage Temp -30~80°C Drive IC ILI2511 PN KD101HWX34ED-DC29 Size 10.1 Resolution 1280×800 Interface LVDS(40Pin-0.5mm) Brightness 800nits Operation Temp -20~70°C Storage Temp -30~80°C Drive IC ILI2511 -
PN KD101BWU06NP Display Size 10.1 inch Resolution 1920 × 1200 Interface LVDS (45-Pin, 0.5 mm pitch) Brightness 300 nits Operating Temperature -0°C to 50°C Storage Temperature -20°C to 60°C PN KD101BWU06NP Display Size 10.1 inch Resolution 1920 × 1200 Interface LVDS (45-Pin, 0.5 mm pitch) Brightness 300 nits Operating Temperature -0°C to 50°C Storage Temperature -20°C to 60°C PN KD101BWU06NP Display Size 10.1 inch Resolution 1920 × 1200 Interface LVDS (45-Pin, 0.5 mm pitch) Brightness 300 nits Operating Temperature -0°C to 50°C Storage Temperature -20°C to 60°C -
PN KD101BWS05NG-DR02 Size 10.1 Resolution 1024*600 Interface RGB(50Pin-0.5mm) Brightness 300nits Operation Temp -20~70°C Storage Temp -30~80°C PN KD101BWS05NG-DR02 Size 10.1 Resolution 1024*600 Interface RGB(50Pin-0.5mm) Brightness 300nits Operation Temp -20~70°C Storage Temp -30~80°C PN KD101BWS05NG-DR02 Size 10.1 Resolution 1024*600 Interface RGB(50Pin-0.5mm) Brightness 300nits Operation Temp -20~70°C Storage Temp -30~80°C -
PN KD101HWX69EP-FC60-AG Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) LCD Driver IC EK79202B Brightness 850 Driver IC GT928 Operation Temp -30~80 Storage Temp -40~80 PN KD101HWX69EP-FC60-AG Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) LCD Driver IC EK79202B Brightness 850 Driver IC GT928 Operation Temp -30~80 Storage Temp -40~80 PN KD101HWX69EP-FC60-AG Size 10.1 Resolution 1280*800 Interface LVDS(40Pin-0.5mm) LCD Driver IC EK79202B Brightness 850 Driver IC GT928 Operation Temp -30~80 Storage Temp -40~80 -
PN KD101QWU83HP-FC75-AG Size 10.1 Resolution 1200 x 1920 Interface MIPI Brightness 525nits Operation Temp -10~60°C Storage Temp -20~70°C PN KD101QWU83HP-FC75-AG Size 10.1 Resolution 1200 x 1920 Interface MIPI Brightness 525nits Operation Temp -10~60°C Storage Temp -20~70°C PN KD101QWU83HP-FC75-AG Size 10.1 Resolution 1200 x 1920 Interface MIPI Brightness 525nits Operation Temp -10~60°C Storage Temp -20~70°C -
PN KD080AWU31EP-FC40 Size 8.0 inch Resolution 1200*1920 Video Interface MIPI DSI Brightness 600nits Viewing Direction 85/85/85/85 TP Interface USB PN KD080AWU31EP-FC40 Size 8.0 inch Resolution 1200*1920 Video Interface MIPI DSI Brightness 600nits Viewing Direction 85/85/85/85 TP Interface USB PN KD080AWU31EP-FC40 Size 8.0 inch Resolution 1200*1920 Video Interface MIPI DSI Brightness 600nits Viewing Direction 85/85/85/85 TP Interface USB -
PN KD080AWU31EP-FC40 Size 8.0 inch Resolution 1200 × 1920 Interface MIPI DSI Brightness 650 cd/m² Typ Operation Temp -20°C ~ 70°C Storage Temp -20°C ~ 70°C Driver IC HX8279-D01 PN KD080AWU31EP-FC40 Size 8.0 inch Resolution 1200 × 1920 Interface MIPI DSI Brightness 650 cd/m² Typ Operation Temp -20°C ~ 70°C Storage Temp -20°C ~ 70°C Driver IC HX8279-D01 PN KD080AWU31EP-FC40 Size 8.0 inch Resolution 1200 × 1920 Interface MIPI DSI Brightness 650 cd/m² Typ Operation Temp -20°C ~ 70°C Storage Temp -20°C ~ 70°C Driver IC HX8279-D01
